Blower Motor Resistor: Service and Repair

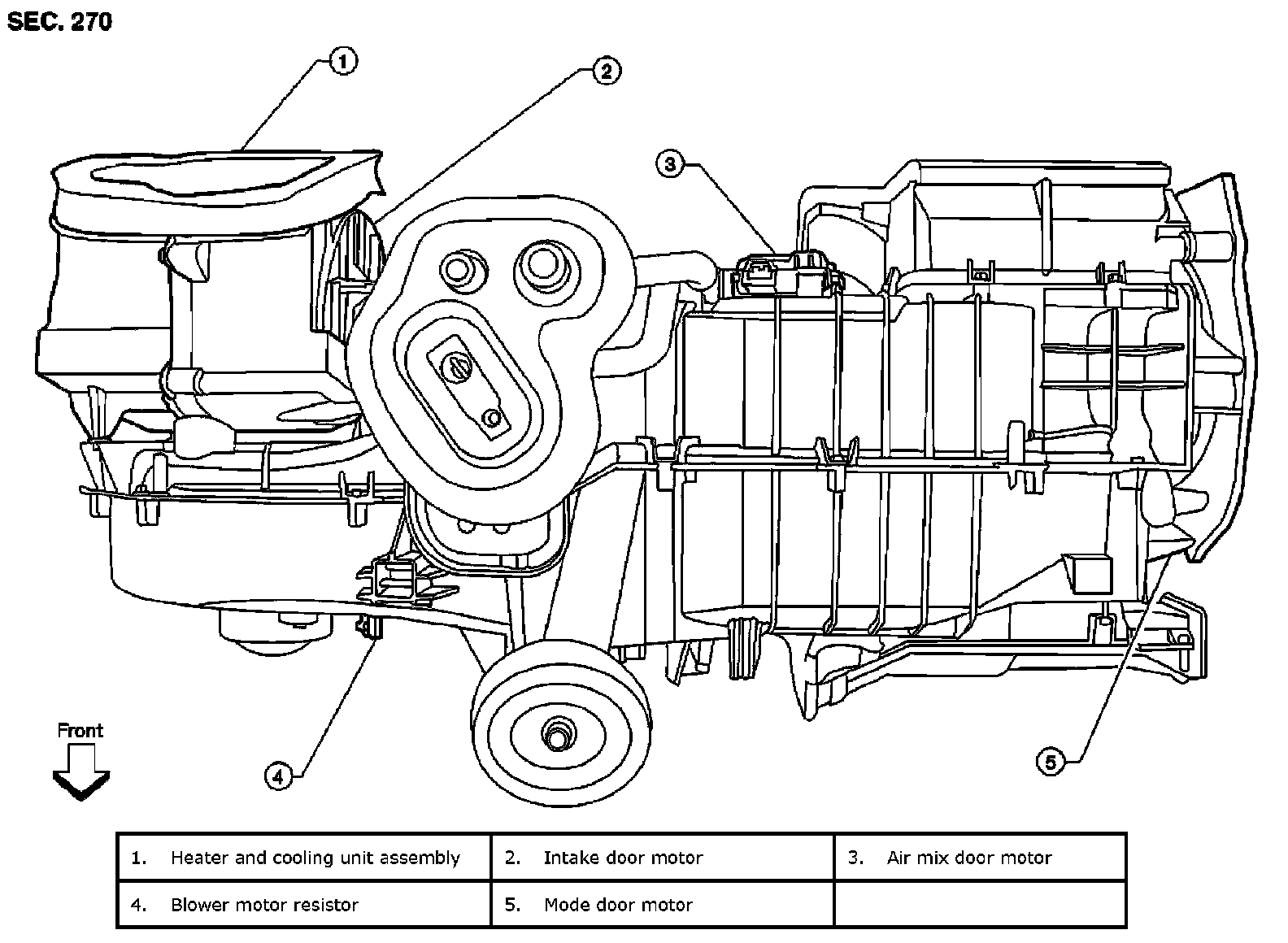

Front Blower Motor Resistor: Removal and InstallationBlower Motor Resistor
Removal
1. Disconnect the blower motor resistor electrical connector.
2. Remove the two screws and remove the blower motor resistor.
Installation
Installation is in the reverse order of removal.
