Variable Blower Control: Removal and Installation

Variable Blower Control: Removal and Installation

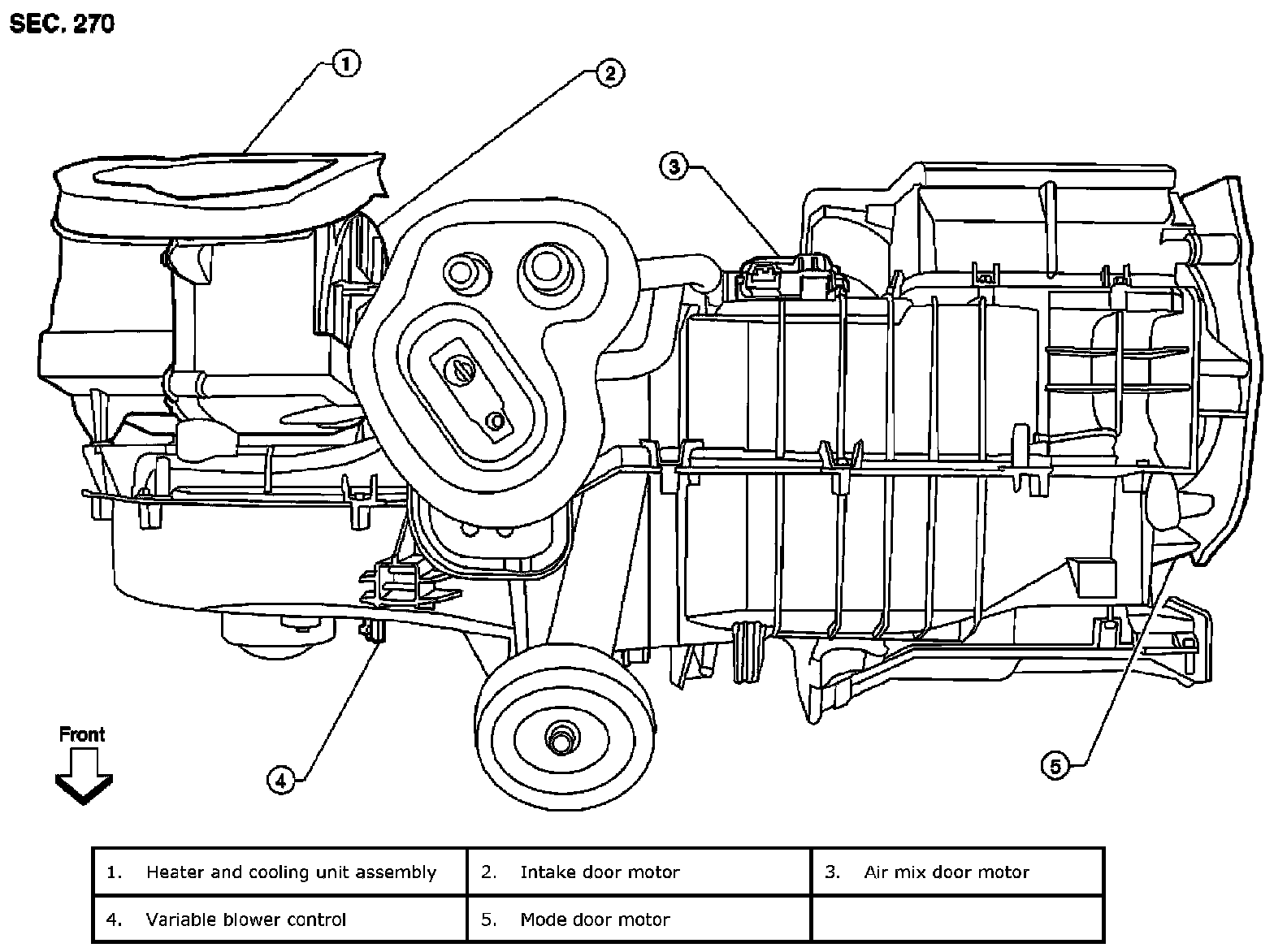

Variable Blower Control






Removal
1. Disconnect the variable blower control electrical connector.
2. Remove the two screws and remove the variable blower control.

Installation
Installation is in the reverse order of removal.
