Suzuki Truck
>>
2010
>>
Equator 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>

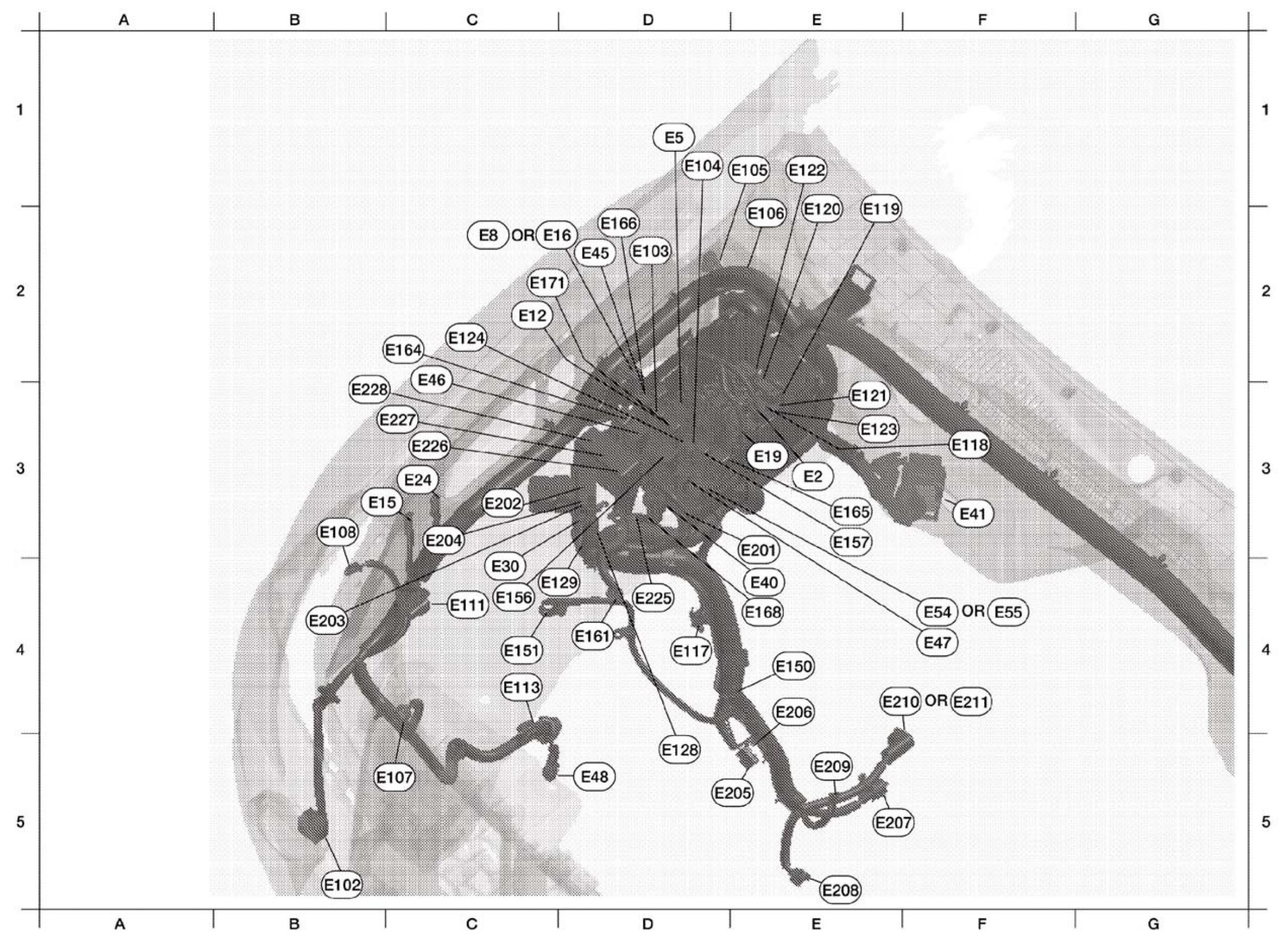

Engine Room Harness (RH View)
Engine Room Harness (RH View)
Engine Room Harness (RH View)
Engine Room Harness (RH View):

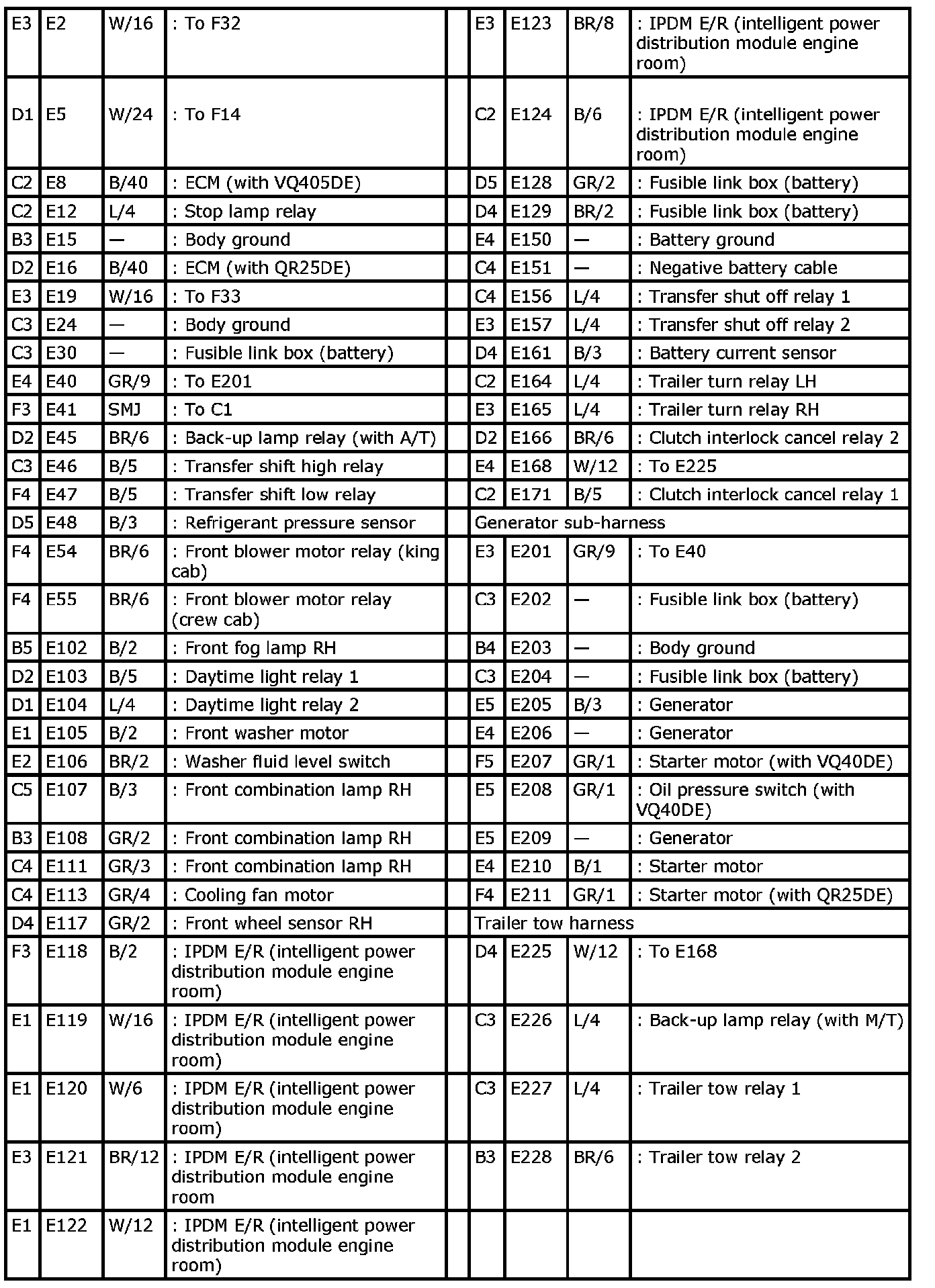

Engine Room Harness (RH View) Index:
