Operation CHARM
: Car repair manuals for everyone.
Home
>>
Suzuki Truck
>>
2010
>>
Equator 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Diagnosis and Repair Work Flow
Diagnosis and Repair Work Flow
Diagnosis and Repair Work Flow

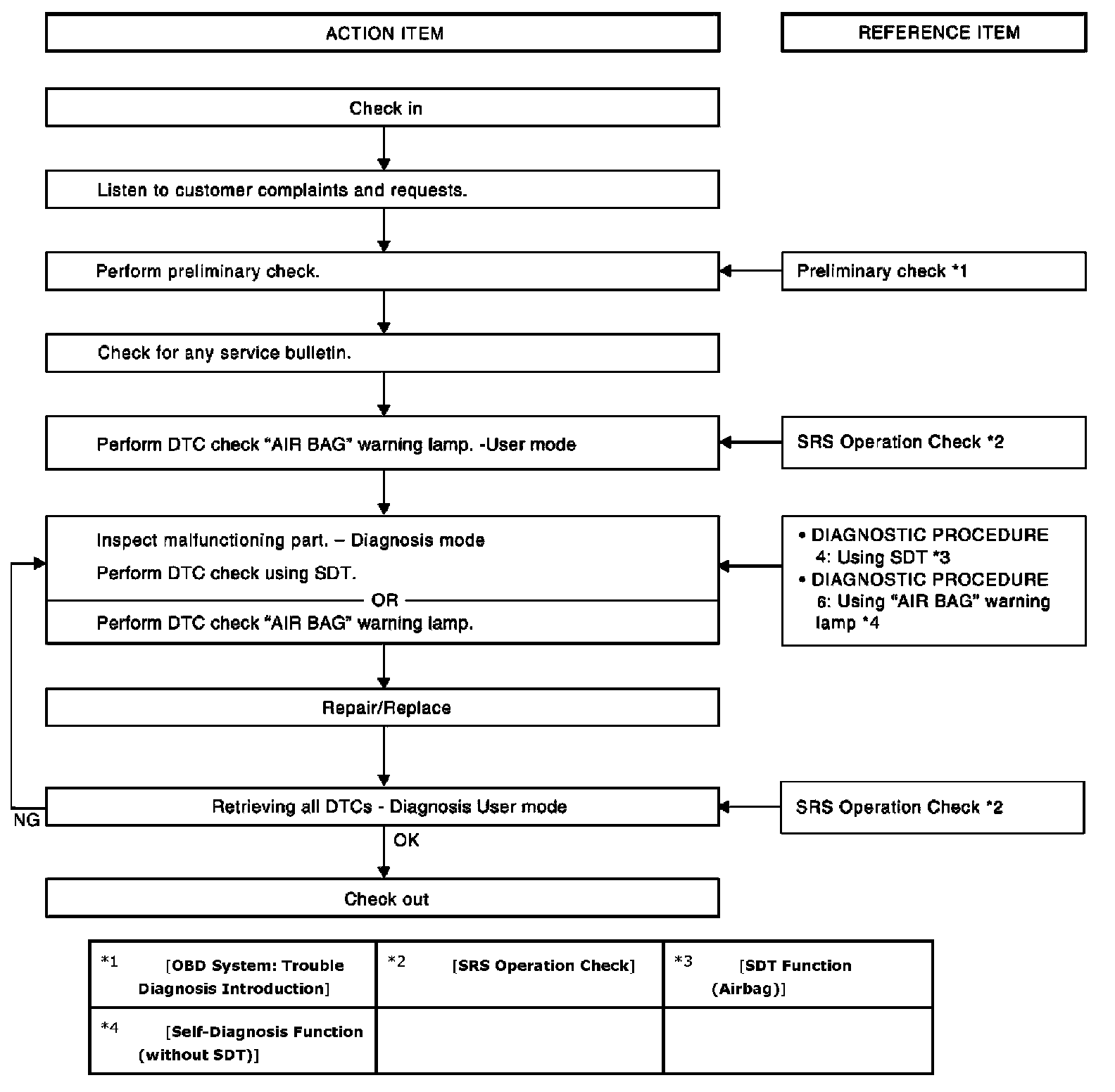

Overall Sequence

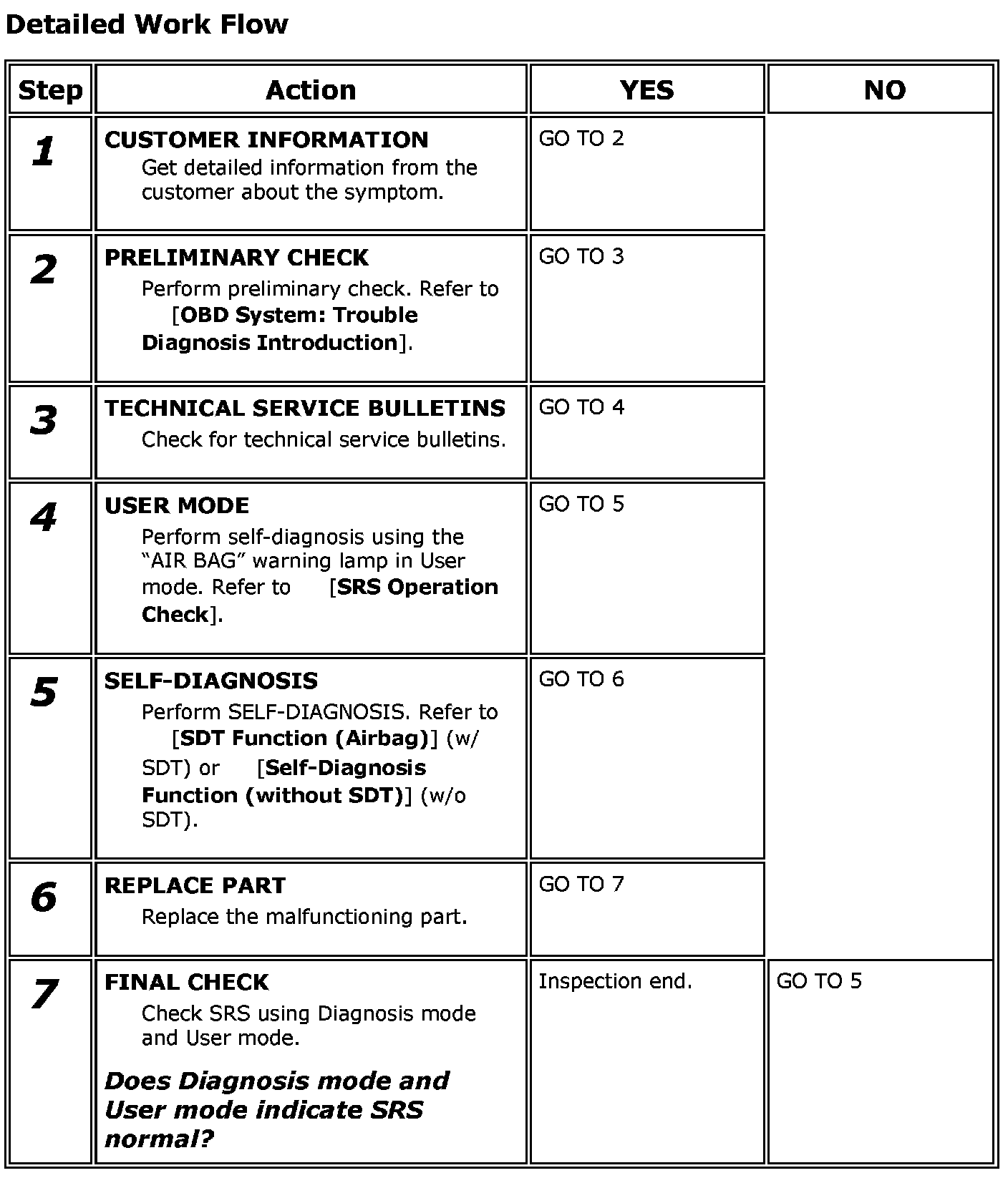

Detailed Work Flow
Step 1-7:
