B Terminal Circuit Check
B Terminal Circuit CheckDescription
The terminal "1" (B) circuit supplies power to charge the battery and operate the vehicles electrical system.

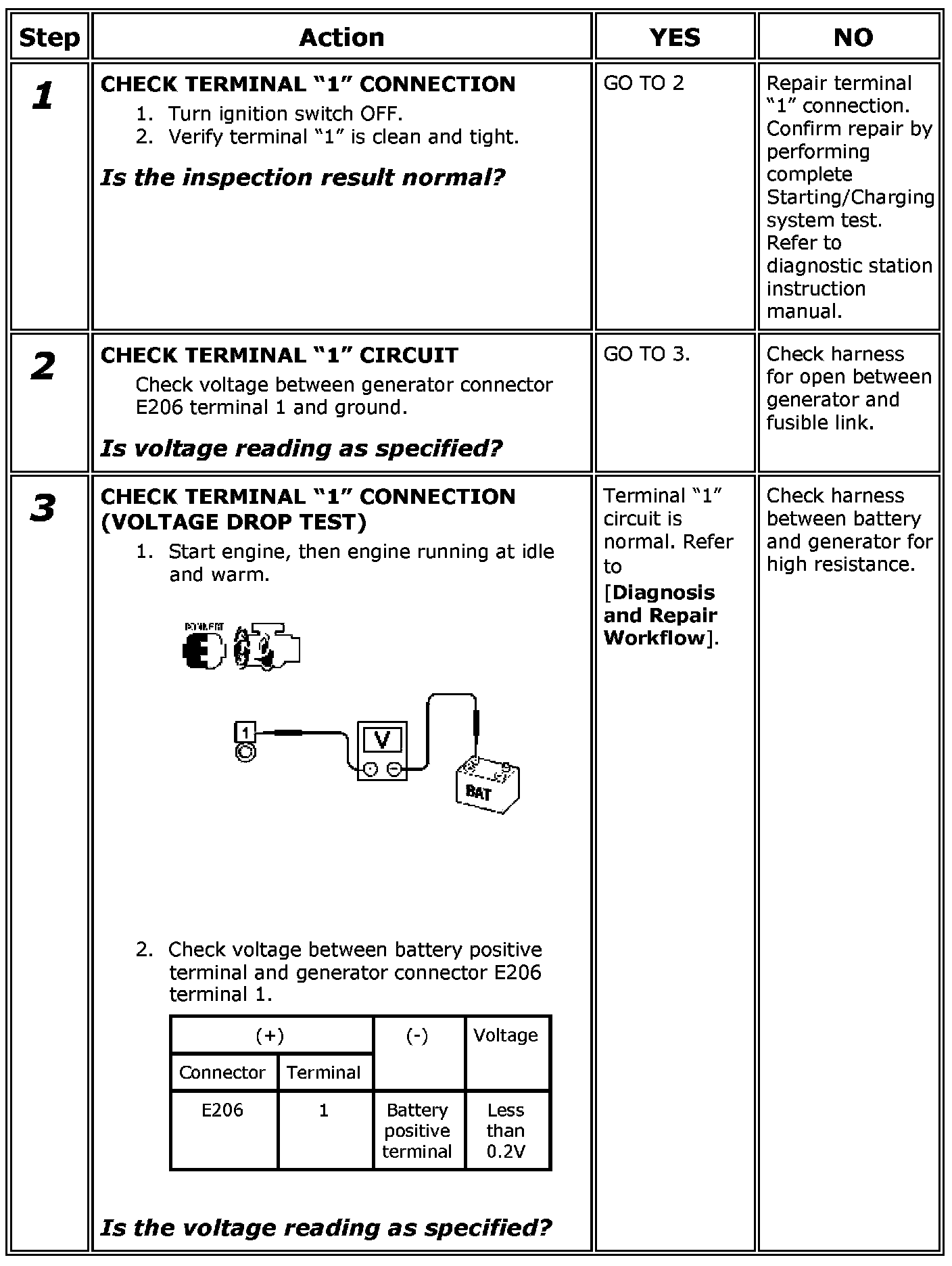

Diagnosis Procedure
Regarding Wiring Diagram information, refer to [Charging System: Wiring Diagram].
