A/T Control System: Control Valve
A/T Control System: Control Valve
A/T Control System: Control Valve

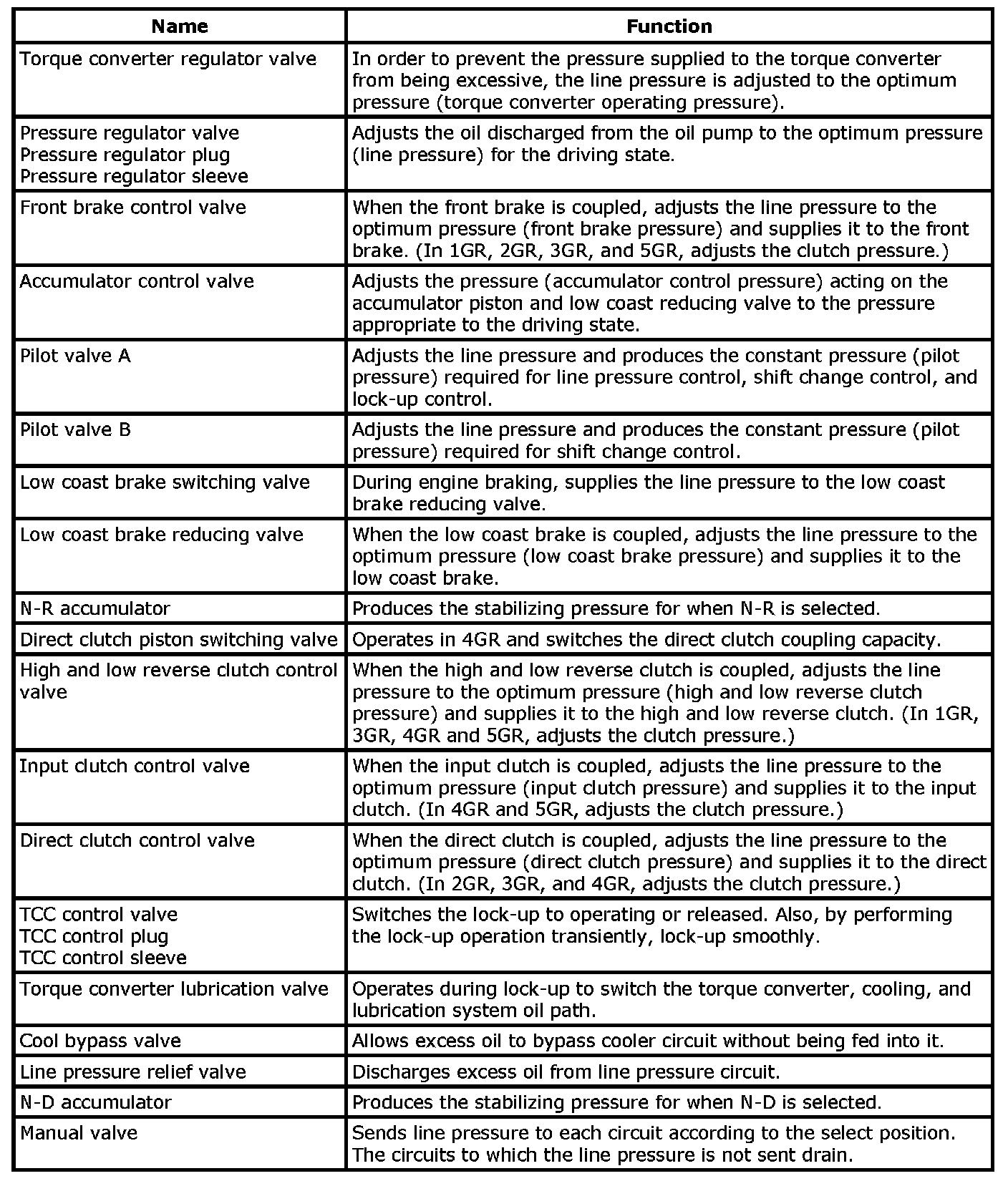

Function of Control Valve
Function of Pressure Switch
