DTC Index Transfer Control Unit

DTC Index: Transfer Control Unit

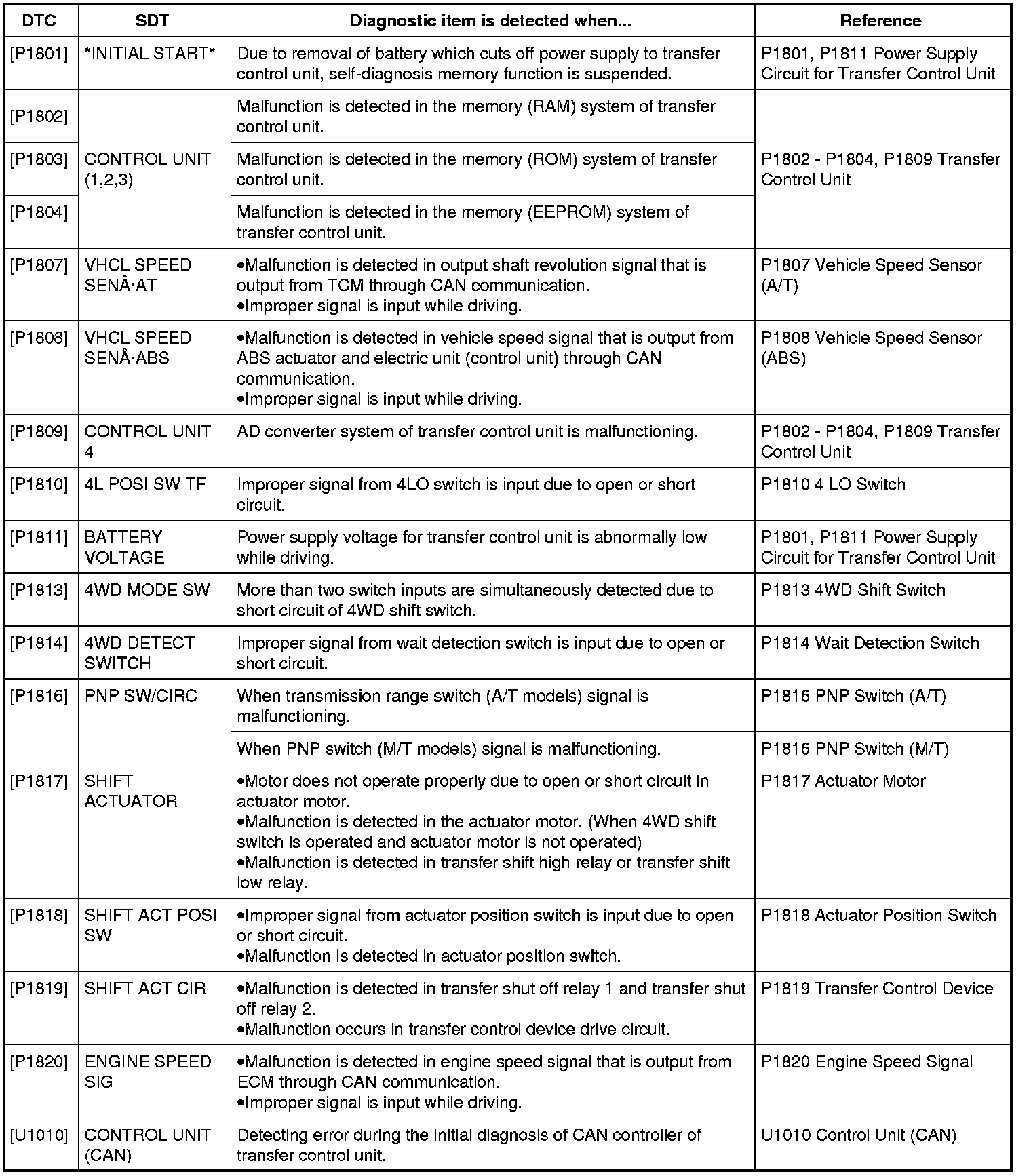

DTC Chart

NOTE:

If "SHIFT ACT POSI SW [P1818]" or "SHIFT ACT CIR [P1819]" is displayed, first erase DTC check results. ("SHIFT ACT POSI SW [P1818]" or "SHIFT ACT CIR [P1819]" may be displayed after installing transfer control unit or transfer assembly.)

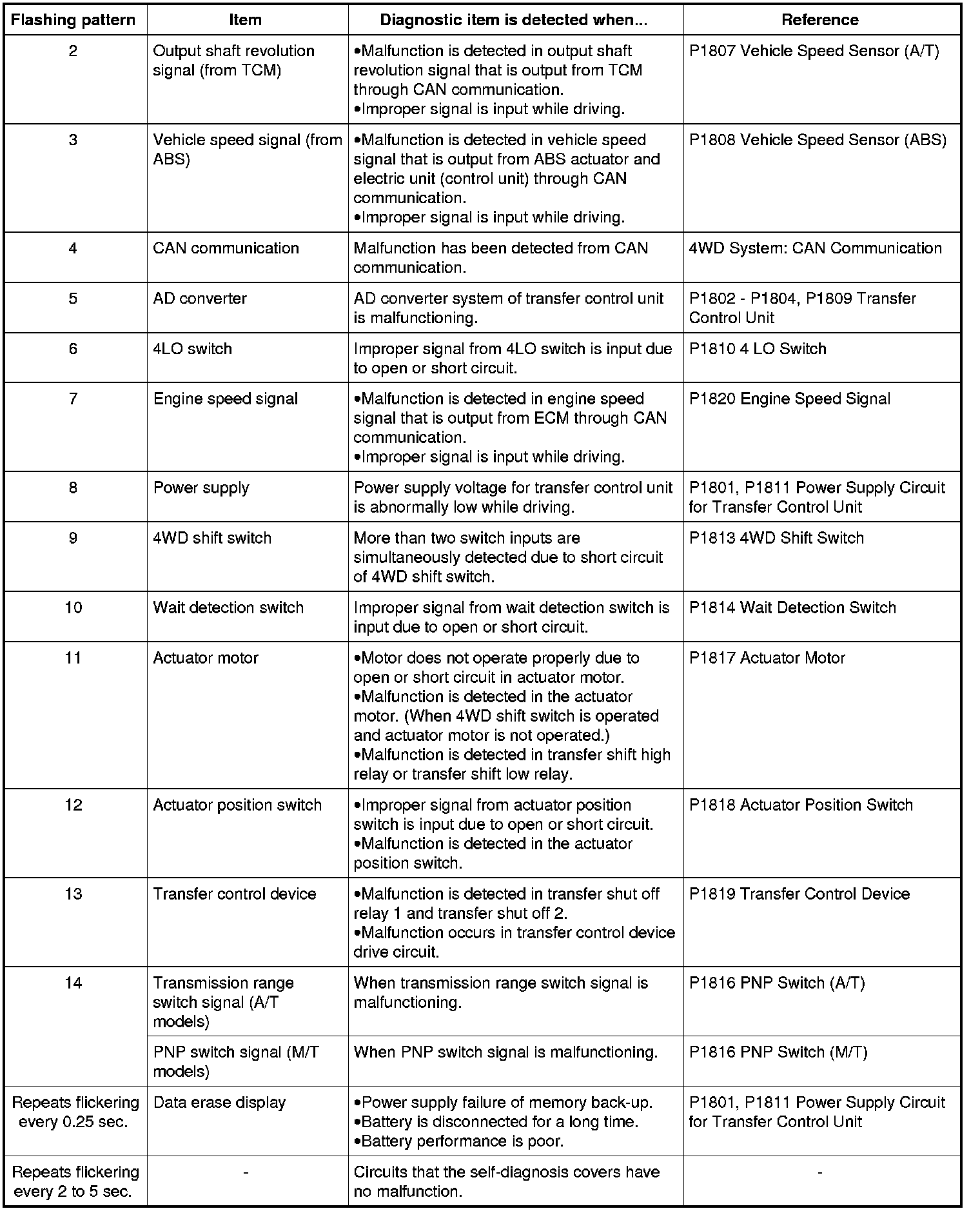

Flash Code Chart

NOTE:

If actuator position switch" or transfer control device" is displayed, first erase DTC. (They may be displayed after installing transfer control unit or transfer assembly.)
