Suzuki Truck
>>
2011
>>
Equator 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
ABS
ABS

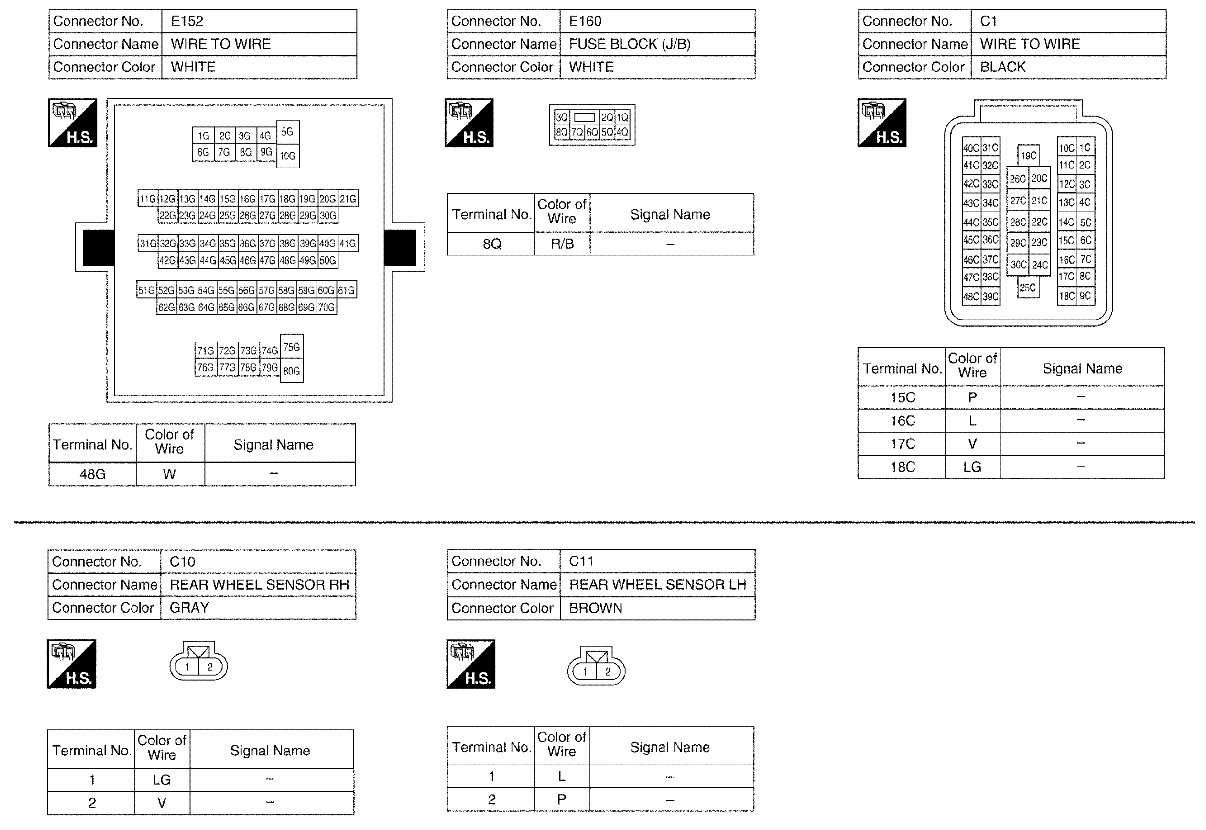

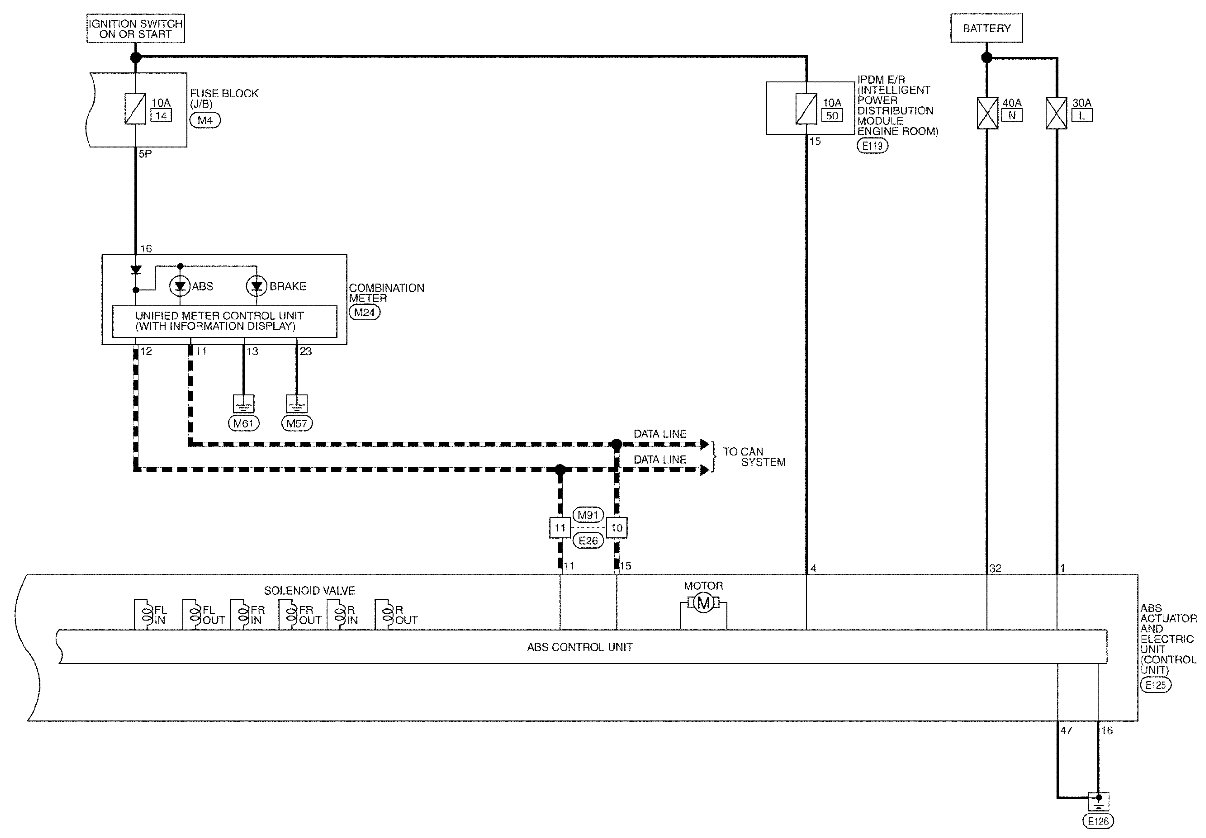

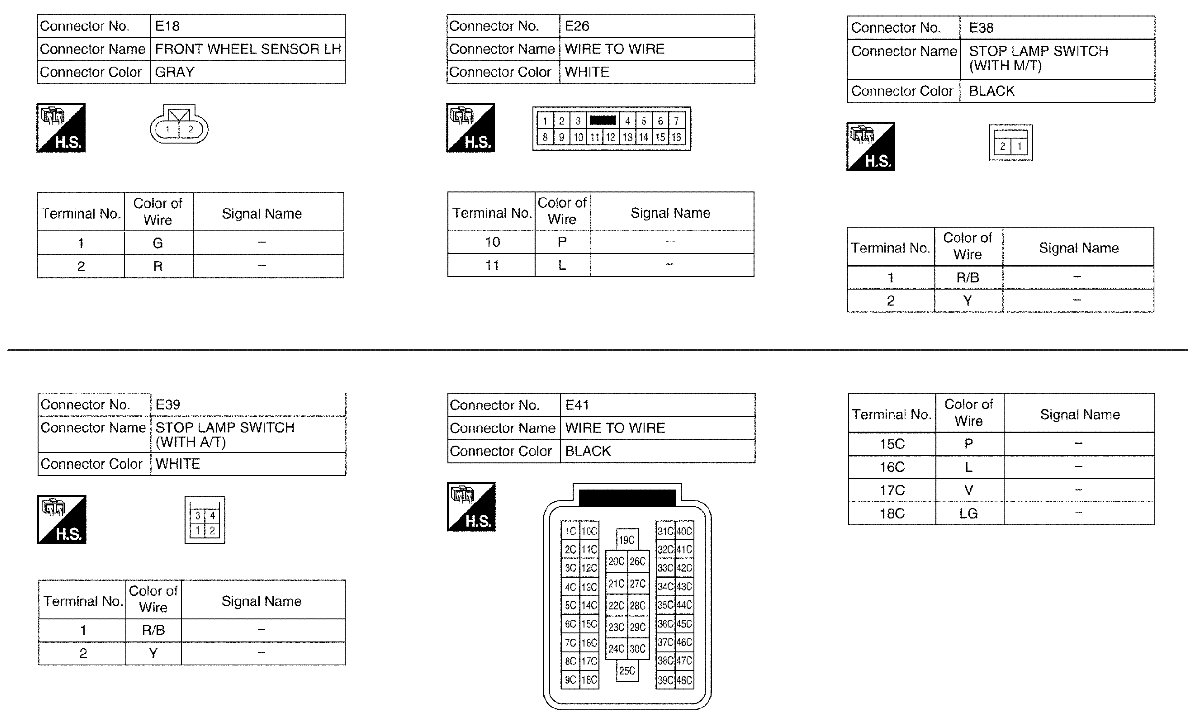

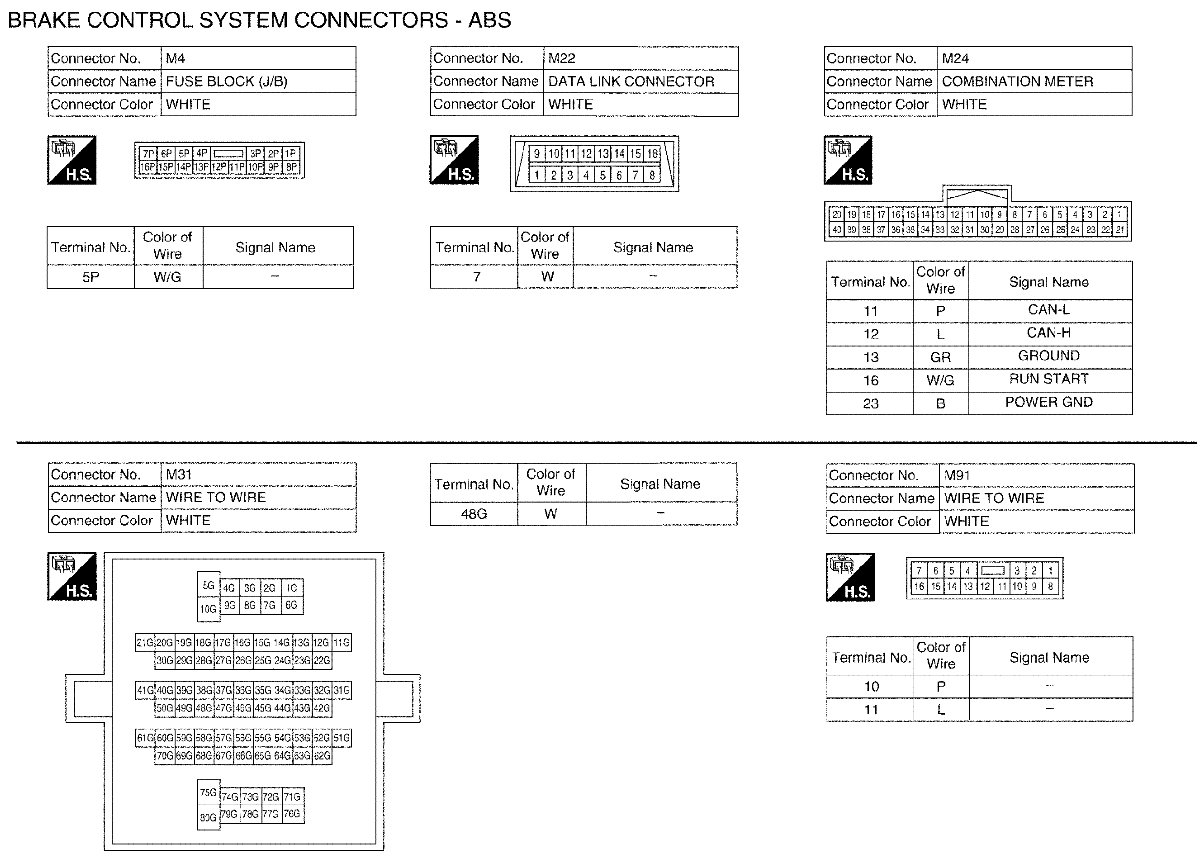

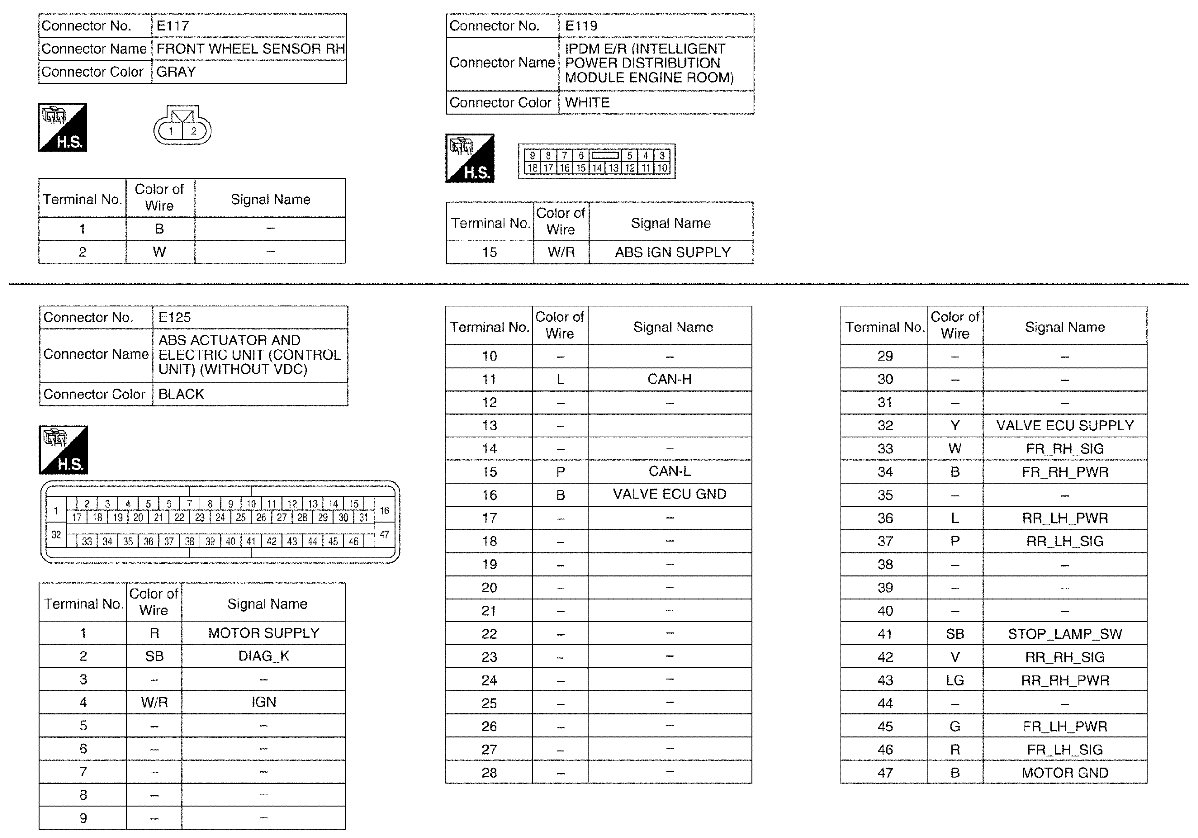

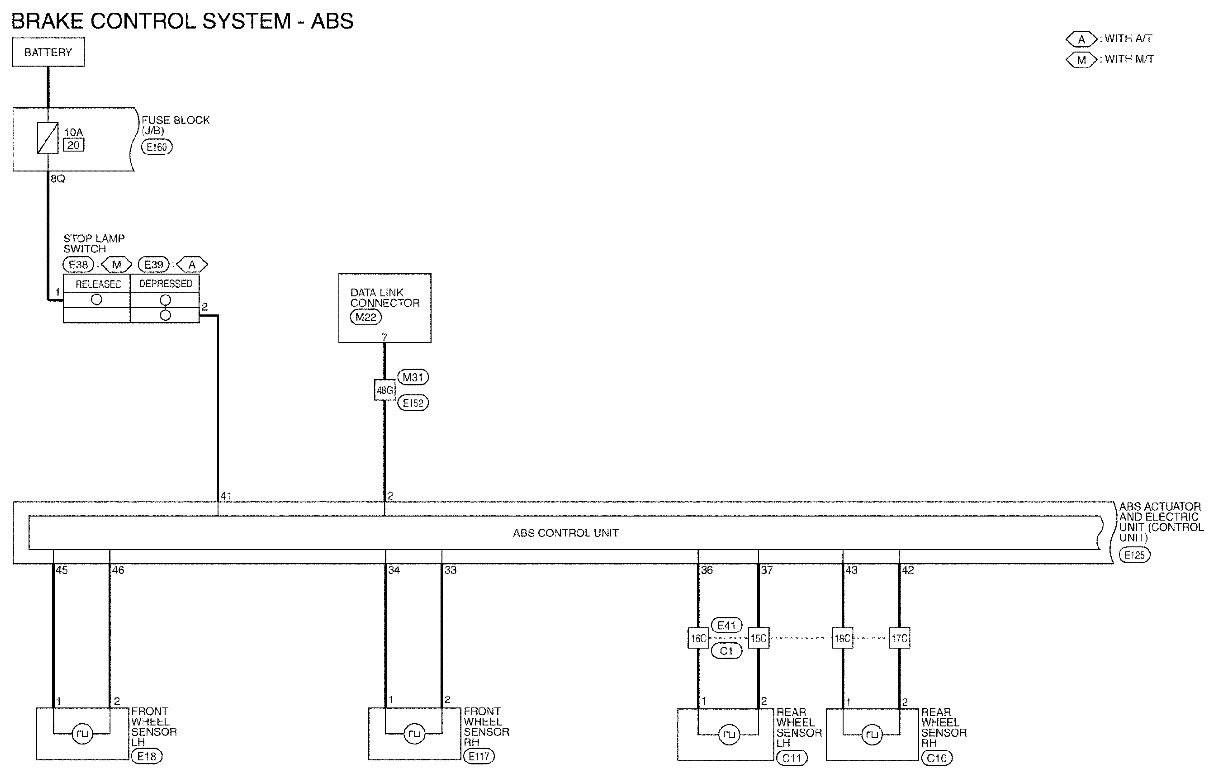

ABS: Wiring Diagram
