Fuel Injector
>>
Testing and Inspection
>>

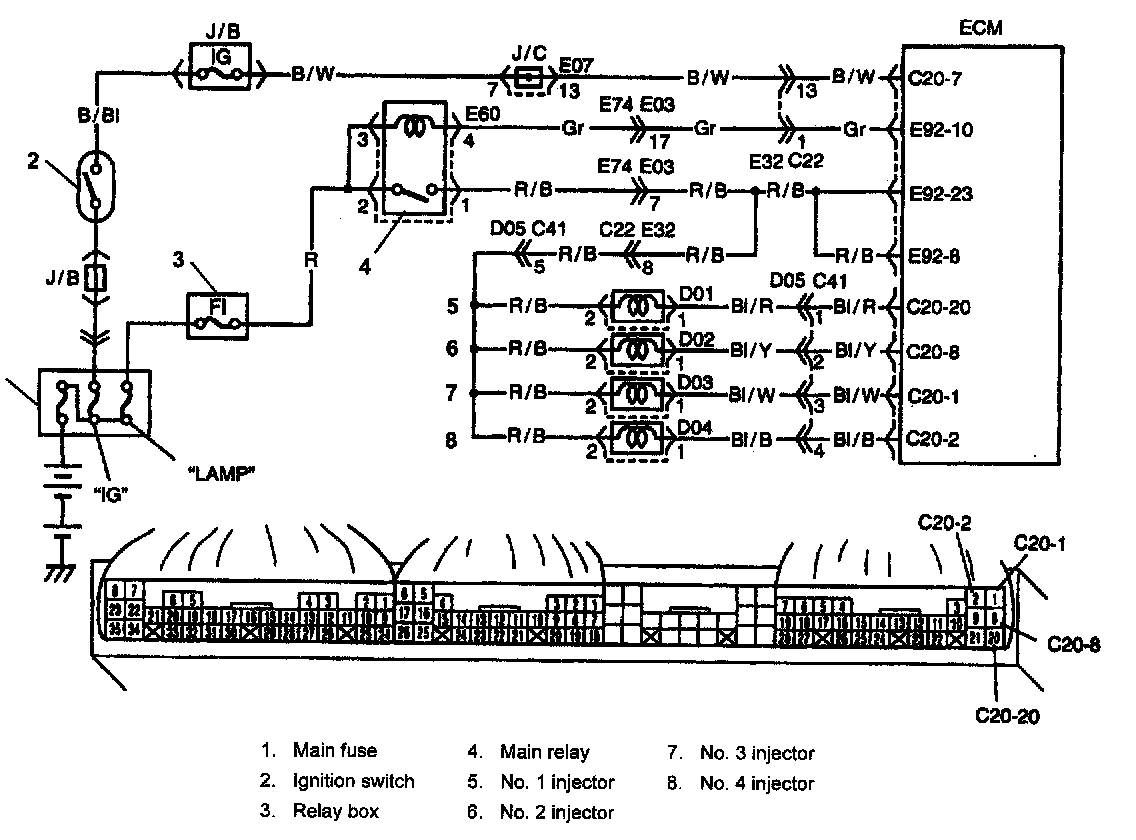

Fuel Injector Circuit Check
Fuel Injector Circuit Check

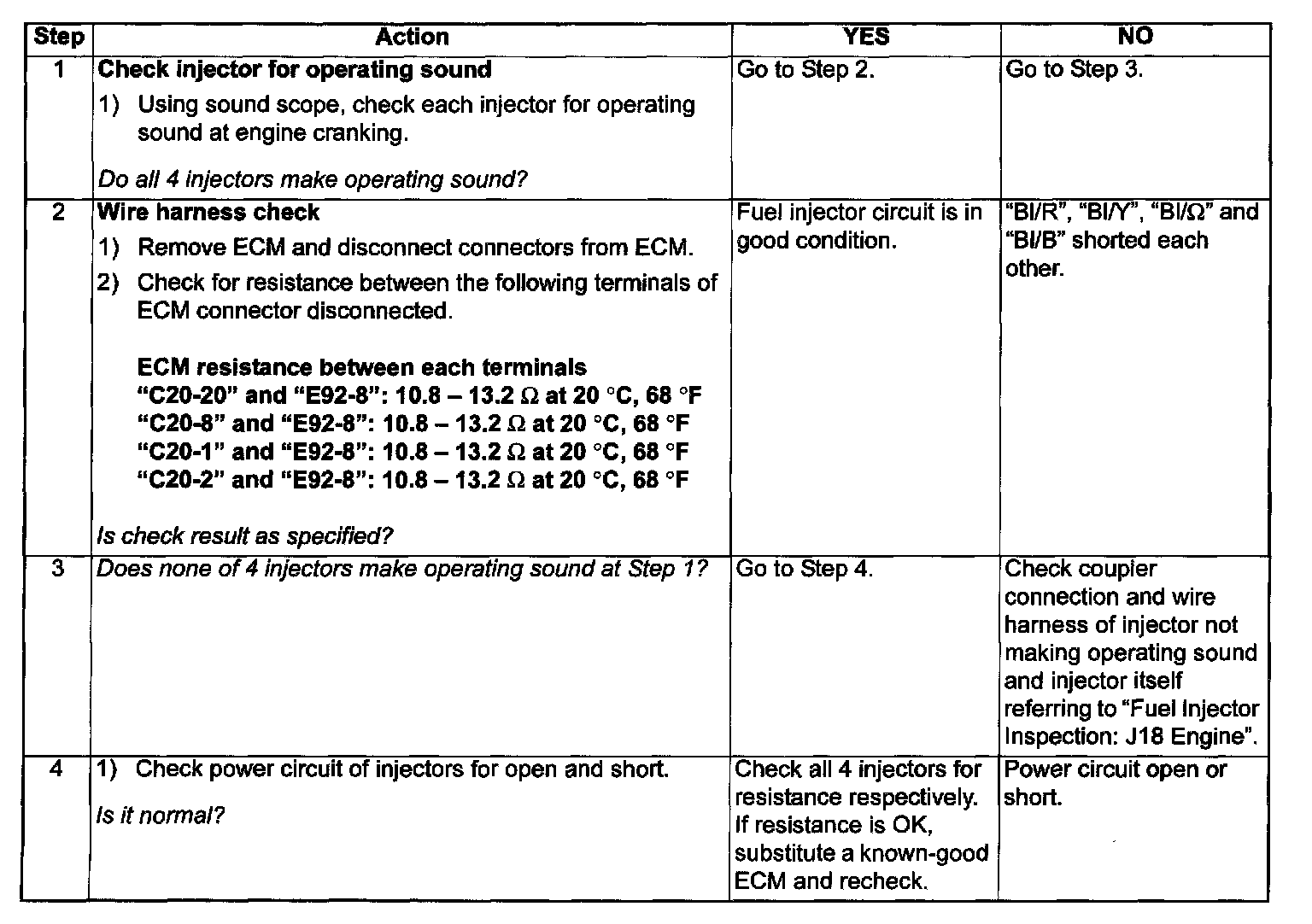

Steps 1 - 4:
