Center Ventilation Louver Removal and Installation

Center Ventilation Louver Removal and Installation

Removal

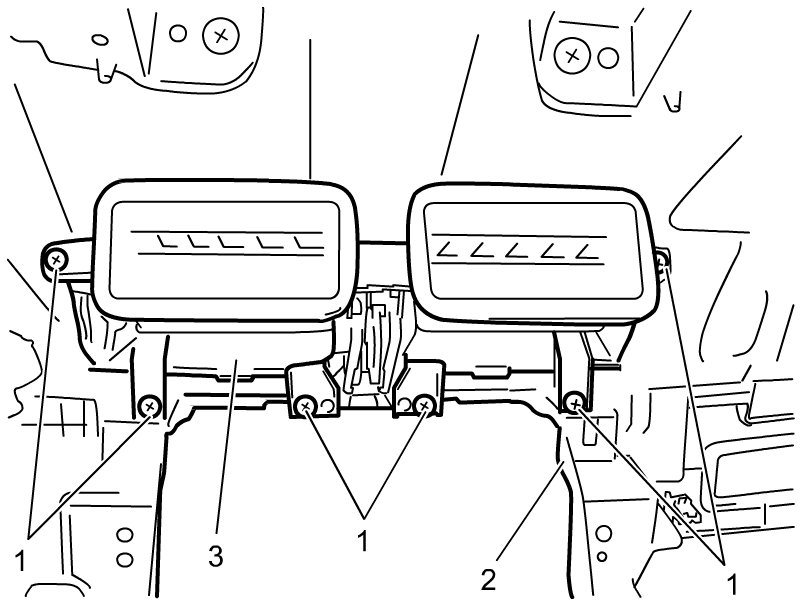

1) Remove instrument panel (2) with center ventilation louver (3). Removal and Replacement
2) Remove center ventilation louver from instrument panel by removing screws (1).






Installation

Reverse removal procedure.
