Toyota Truck
>>
2004
>>
Tacoma PreRunner V6-3.4L (5VZ-FE)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Electronic Brake Control Module
>>
Testing and Inspection
>>
ABS W/BA & VSC System
ABS W/BA & VSC System

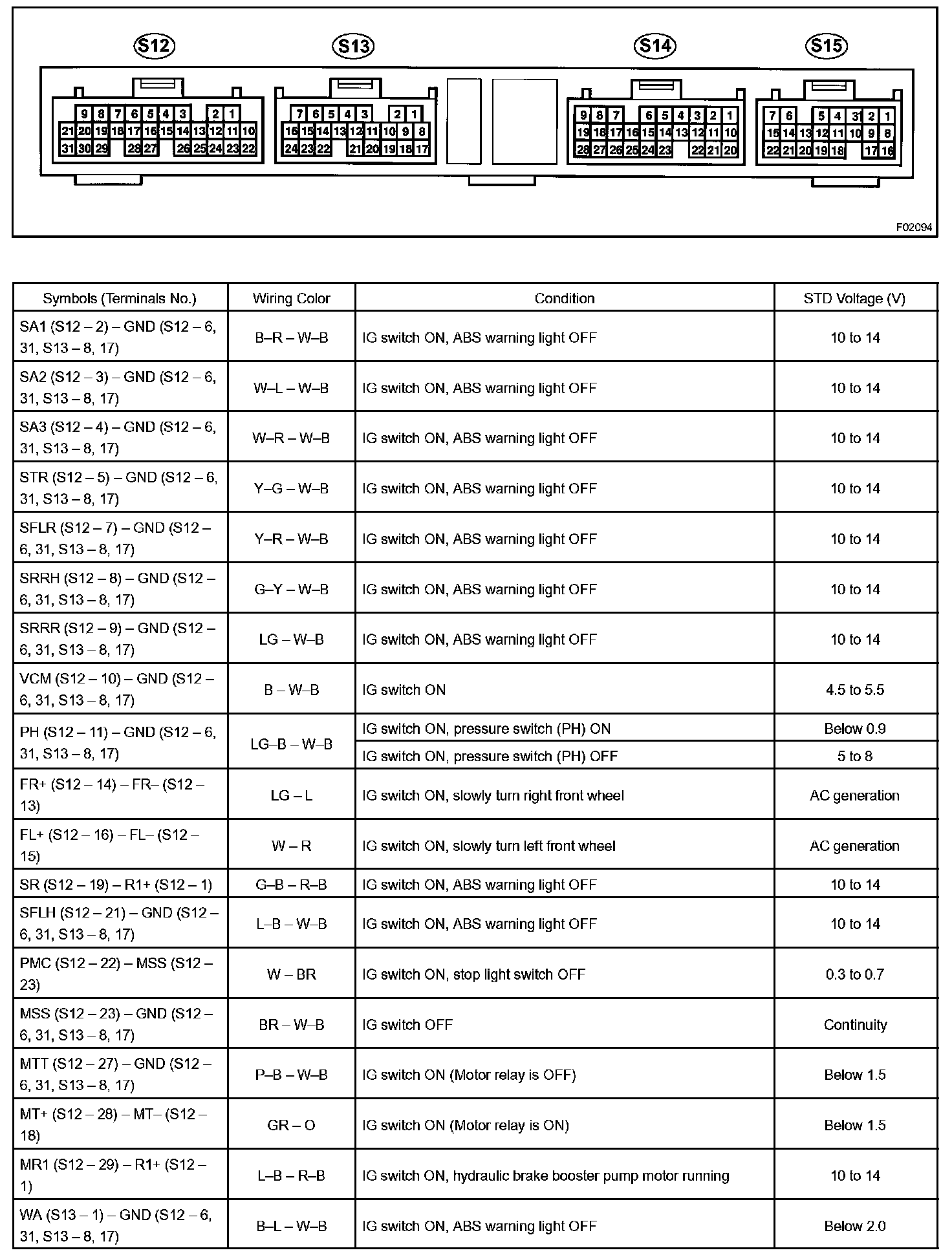

Terminals Of ECM/Pinouts Part 1:

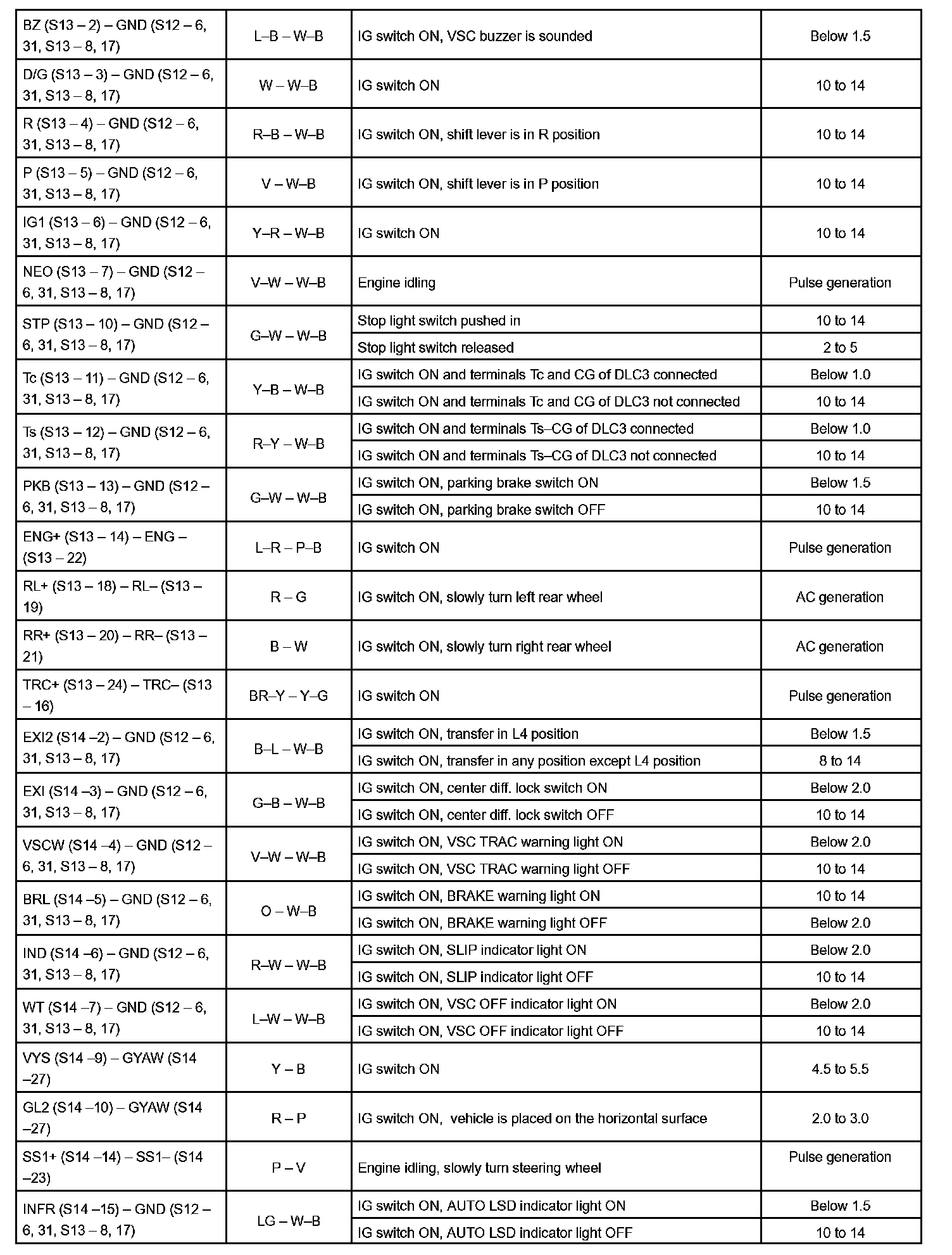

Terminals Of ECM/Pinouts Part 2:

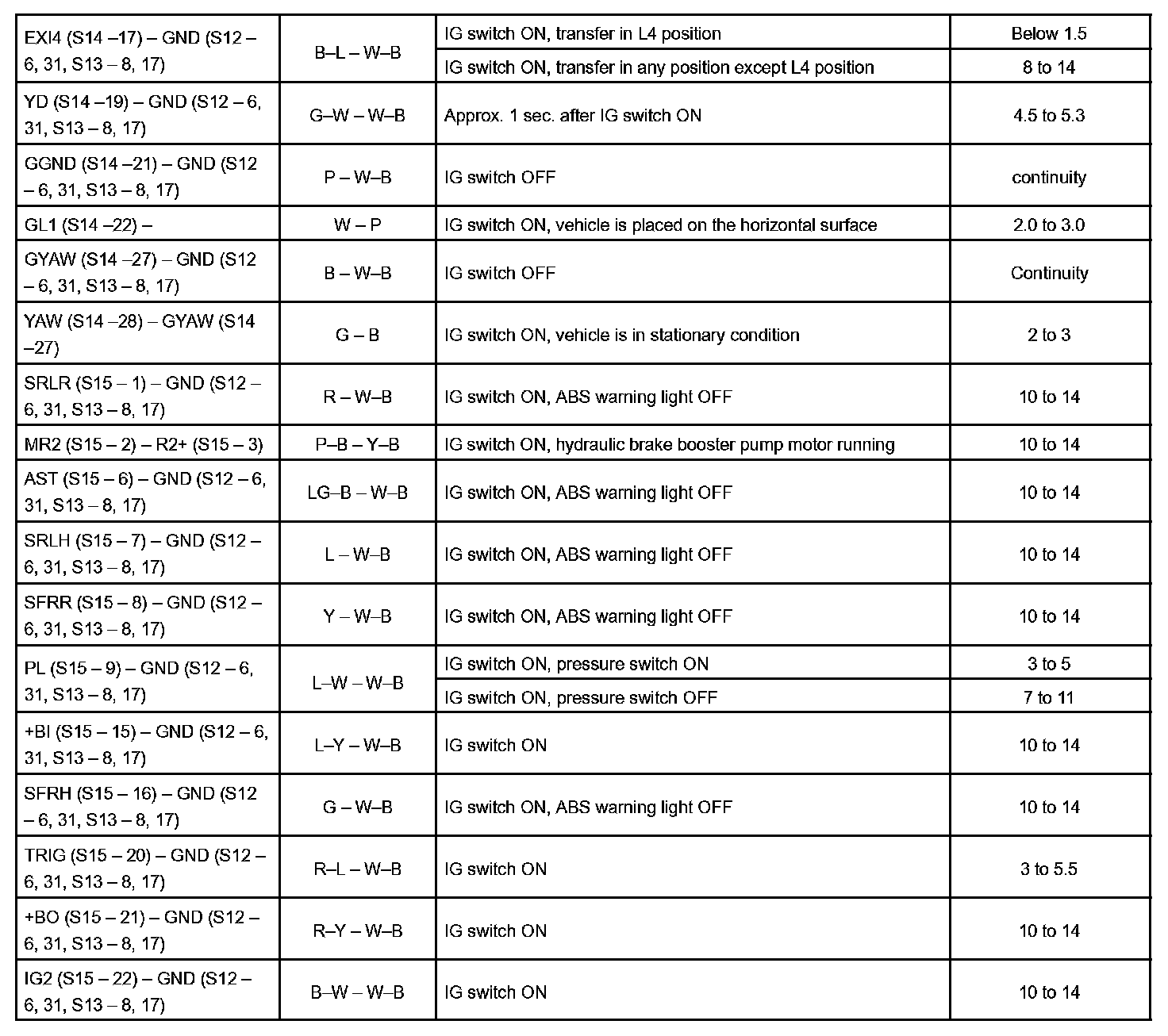

Terminals Of ECM/Pinouts Part 3:
