Front Passenger Side Power Window Switch
Front Passenger Side Power Window Switch
INSPECTION
1.

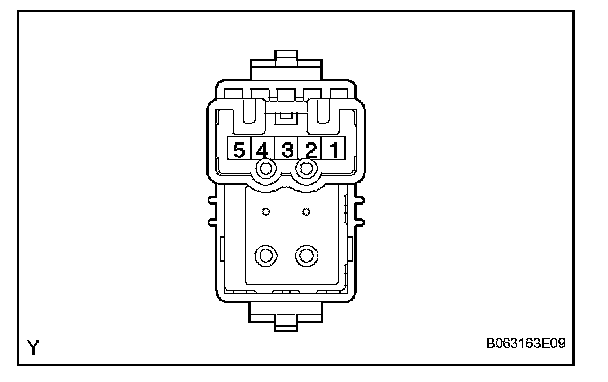

INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY
a.

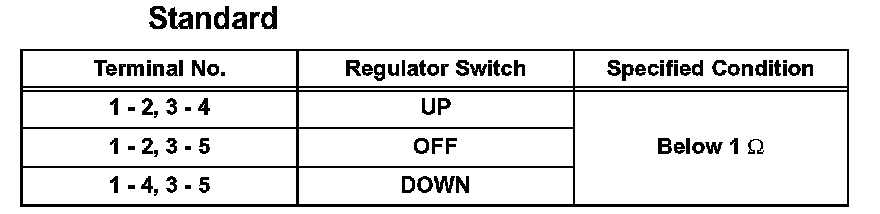

Check the resistance between the switch terminals when the switch is operated.
If the result is not as specified, replace the switch assembly.
