Rear Power Window Switch
Rear Power Window Switch
INSPECTION
1.

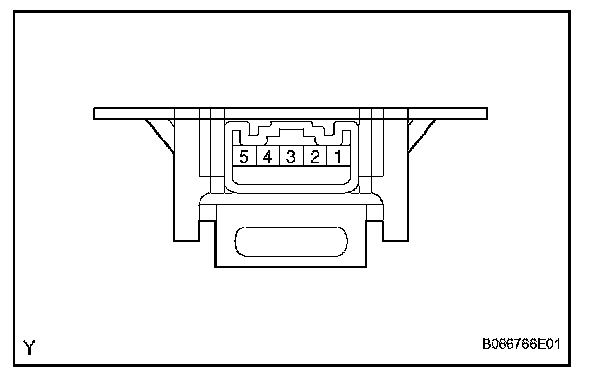

INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY REAR
a.

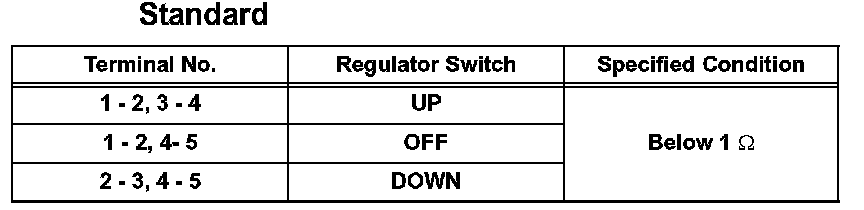

Check the resistance between the switch terminals when the switch is operated.
If the result is not as specified, replace the switch assembly.
