Rear Cooler Control Panel

Rear Cooler Control Panel:

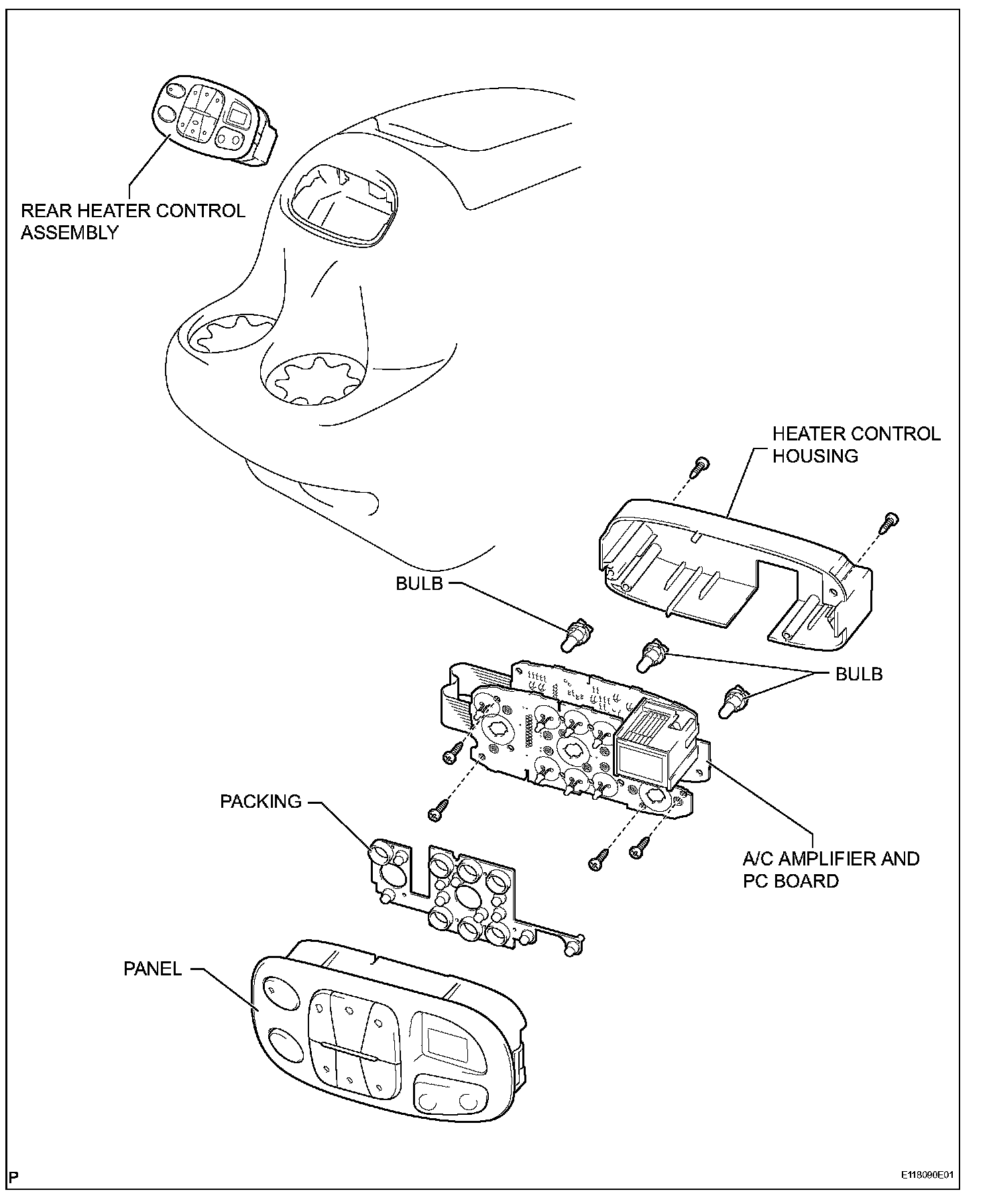

REAR COOLER CONTROL PANEL

REMOVAL

1. REMOVE REAR HEATER CONTROL ASSEMBLY

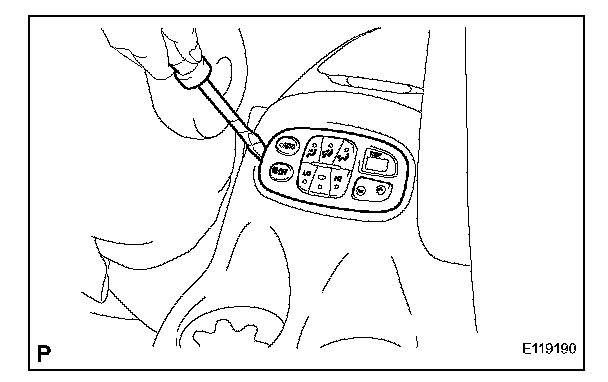

a. Using a screwdriver, release the 2 claws and pull out the control switch assembly, then disconnect the connector.

HINT: Tape the screwdriver tip before use.

INSTALLATION

Installation is in the reverse order of removal.
