Installation

HEATING / AIR CONDITIONING: REAR AIR CONDITIONING PANEL: INSTALLATION

INSTALLATION

1. INSTALL AIR CONDITIONING CONTROL ASSEMBLY

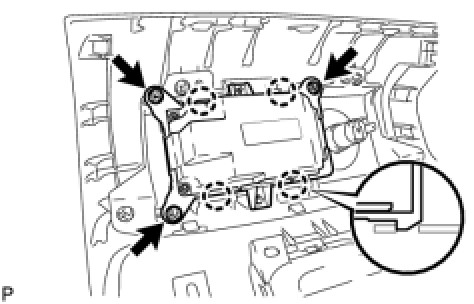

(a) Engage the 4 claws and install the air conditioning control.
(b) Install the 3 screws.
2. INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY





(a) Engage the 2 clamps and install the console rear end panel.

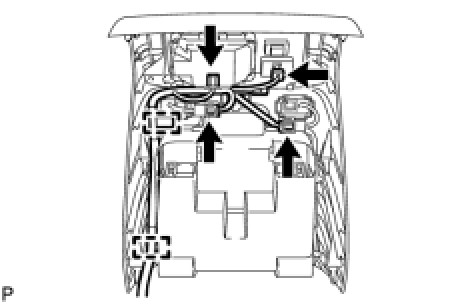

(b) Connect the 4 connectors.

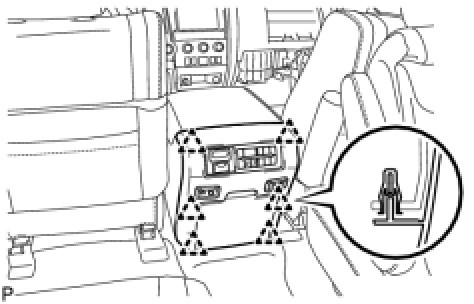

(c) Engage the 6 clips and install the console rear end panel.
