Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1982
>>
Celica Supra L6-2759cc 5M Ser
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Improper Temperature Control
Improper Temperature Control

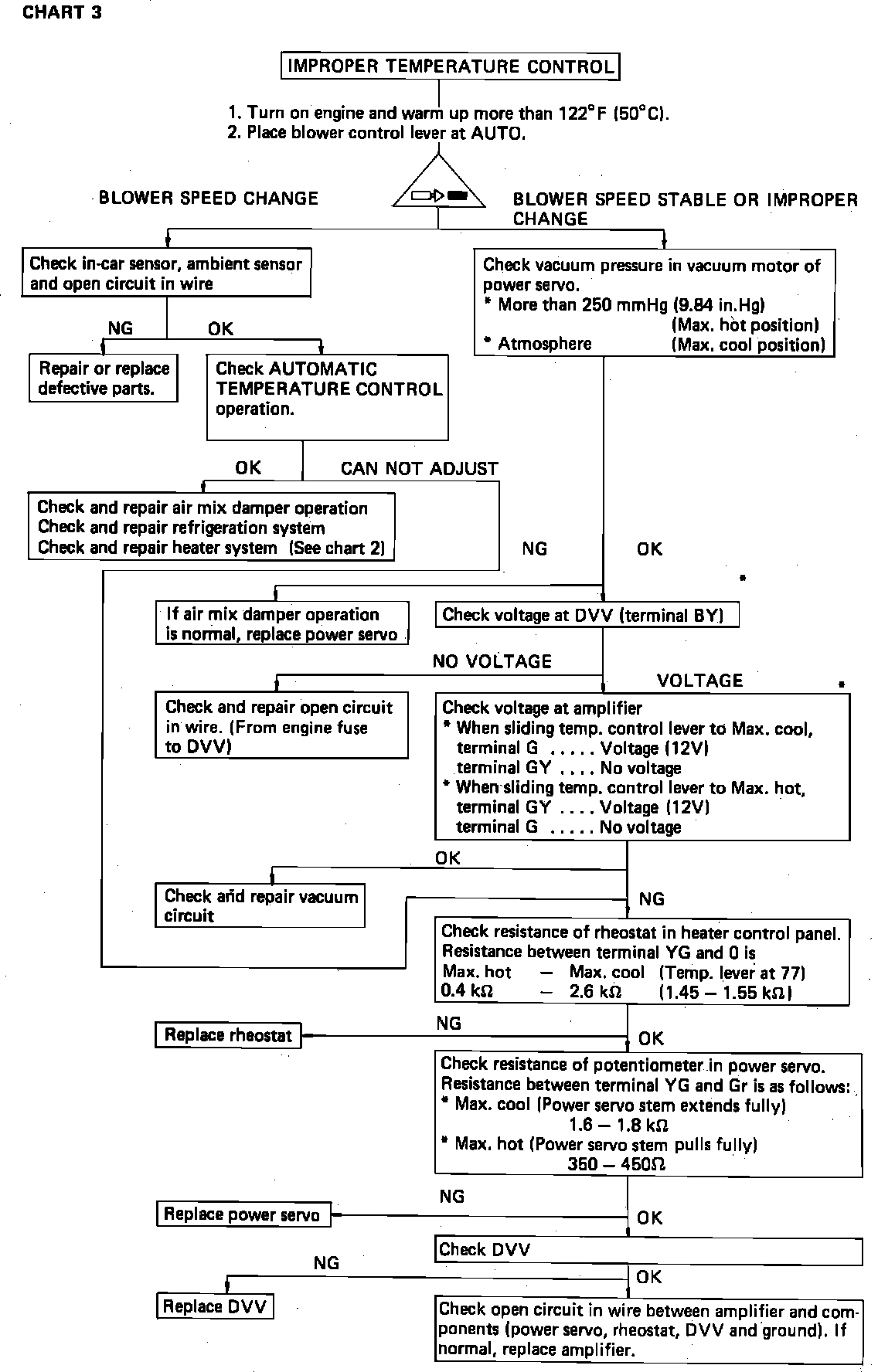

Fig. 4 Automatic A/C Diagnosis.:
