Courtesy Light Wiring Harness, Driver's Door
>>
Liftback Models
Liftback Models

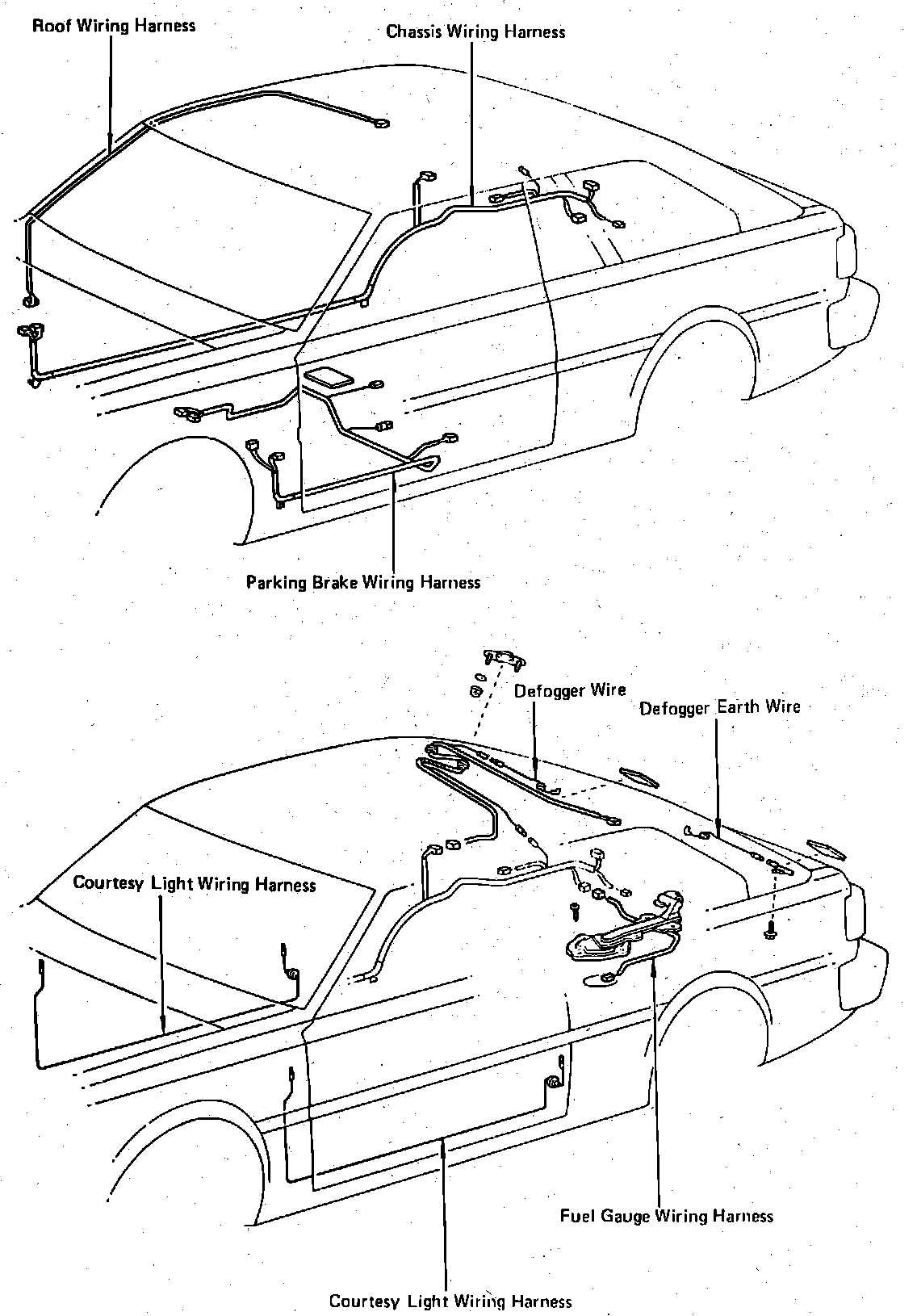

Body Wiring Harness Locations.:
Behind Drivers' Door Panel
Applicable to: 1981-83 Liftback
