Stabilizer Bar: Service and Repair

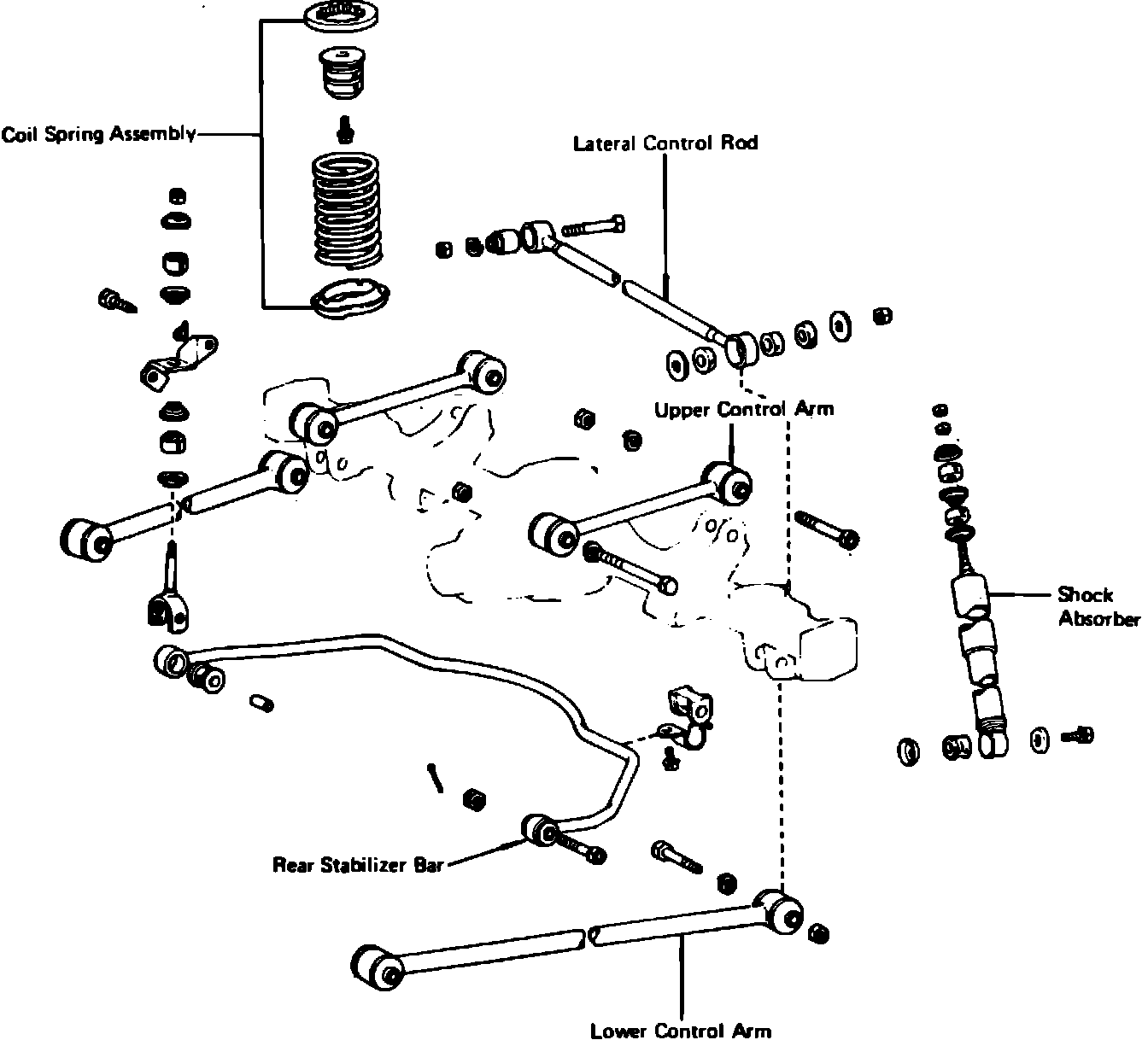

Fig. 8 Coil spring rear suspension. Corolla rear wheel drive, Cressida, Tercel Wagon w/4 wheel drive & Van w/rear wheel drive:

1. Raise and support rear of vehicle, then remove rear wheels.
2. Disconnect bolts securing stabilizer bar to axle housing, Fig. 8.
3. Disconnect bolts securing stabilizer bar to frame, then remove stabilizer bar.
4. Reverse procedure to install.
