Cruise Control: Diagrams

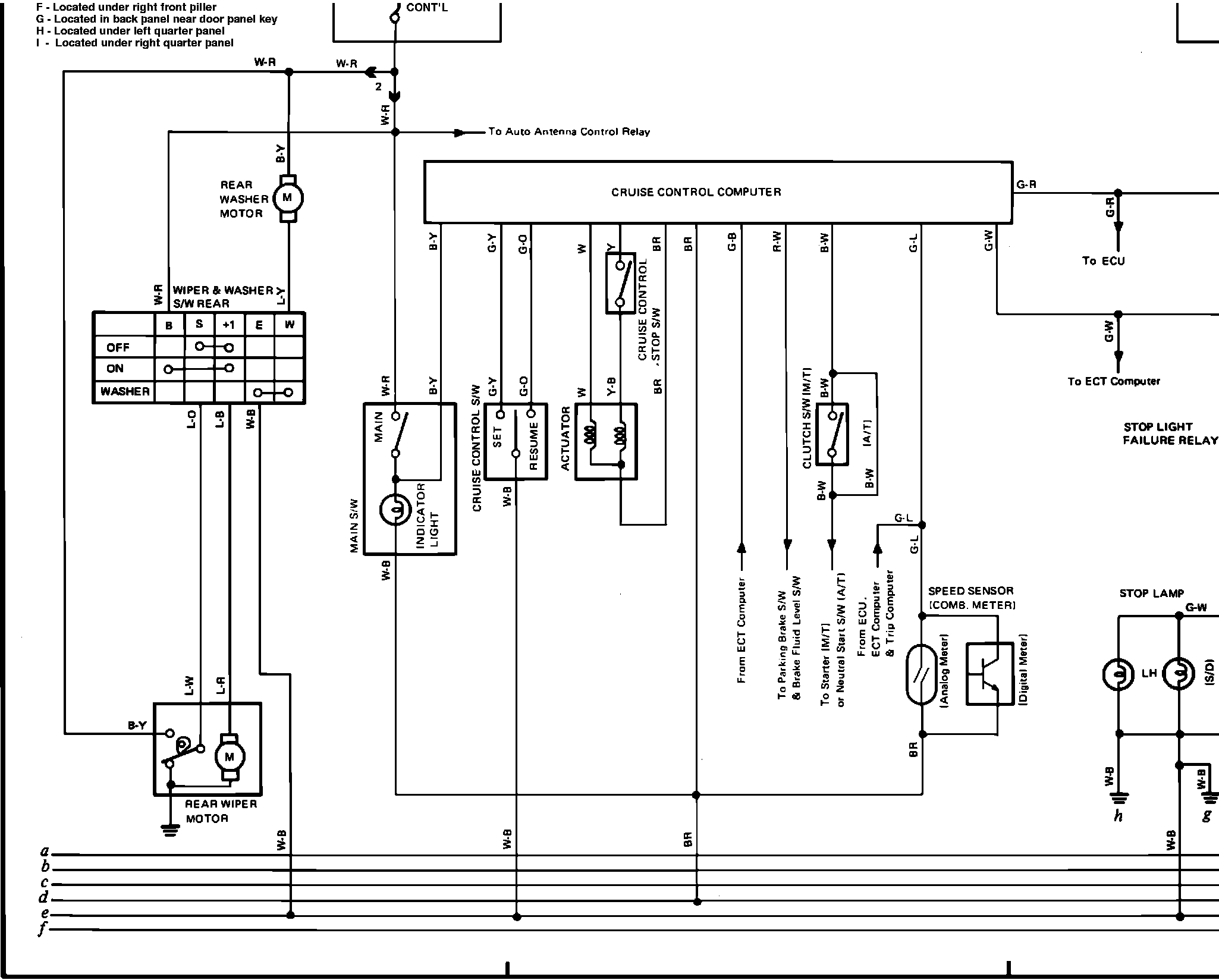

�������D Fig. 27d Rear Wiper & Washer, Cruise Control, Stop Lights, Taillight & Illumination, Headlight, Interior Lighting, and Clock Wiring Diagram:
