Electrical Diagrams

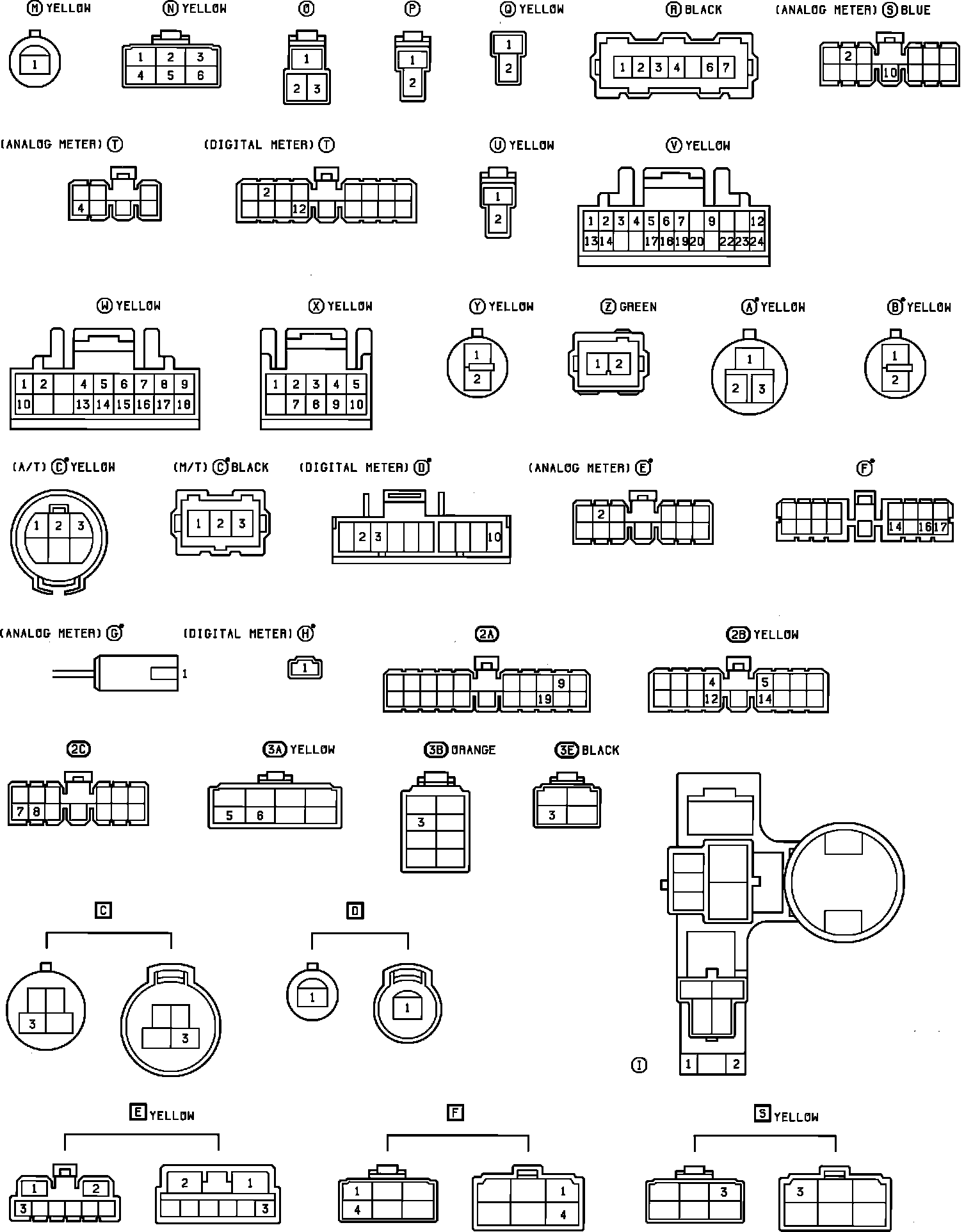

Fig. 79 EFI Wiring Diagram.:

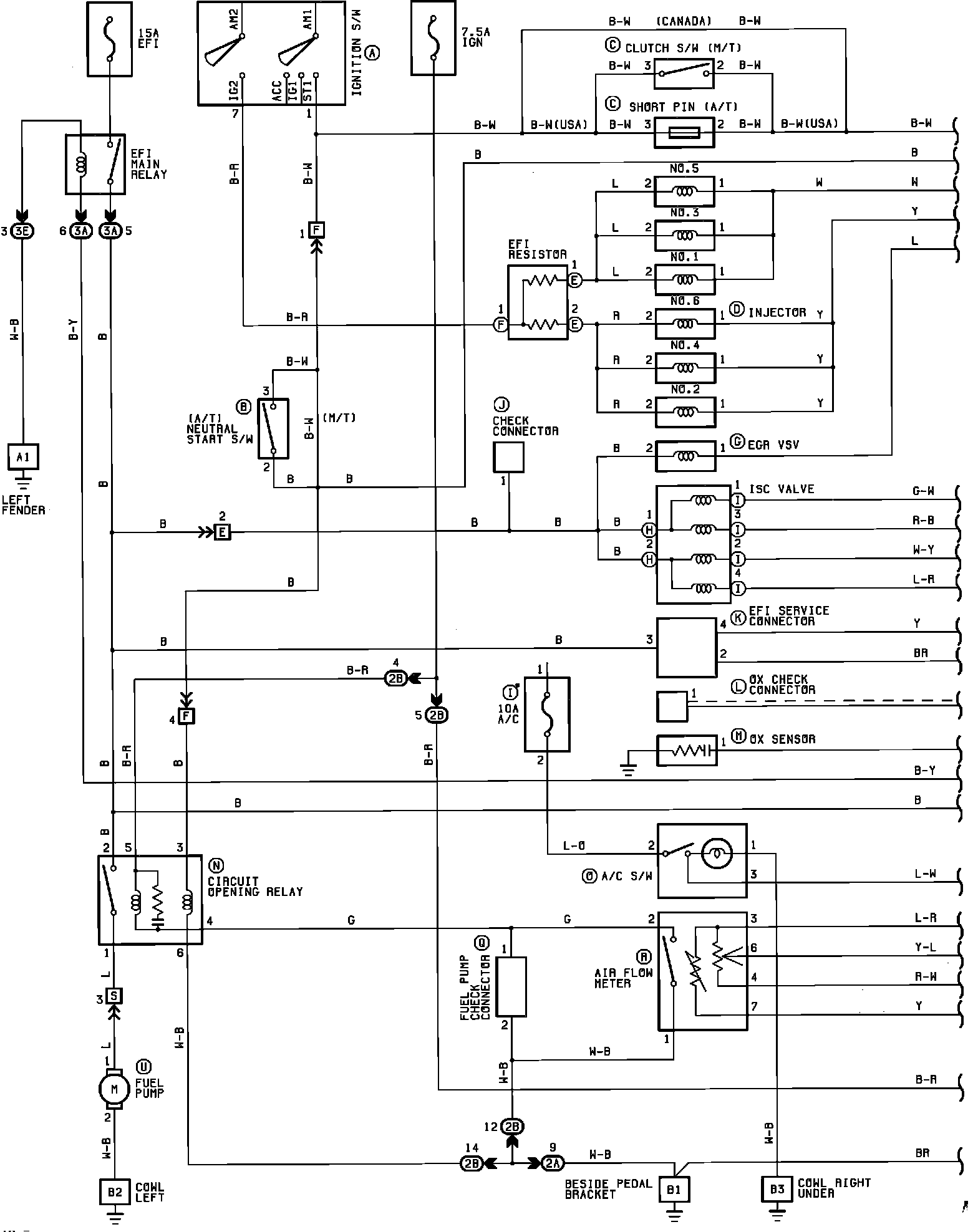

Fig. 80 EFI Wiring Diagram.:

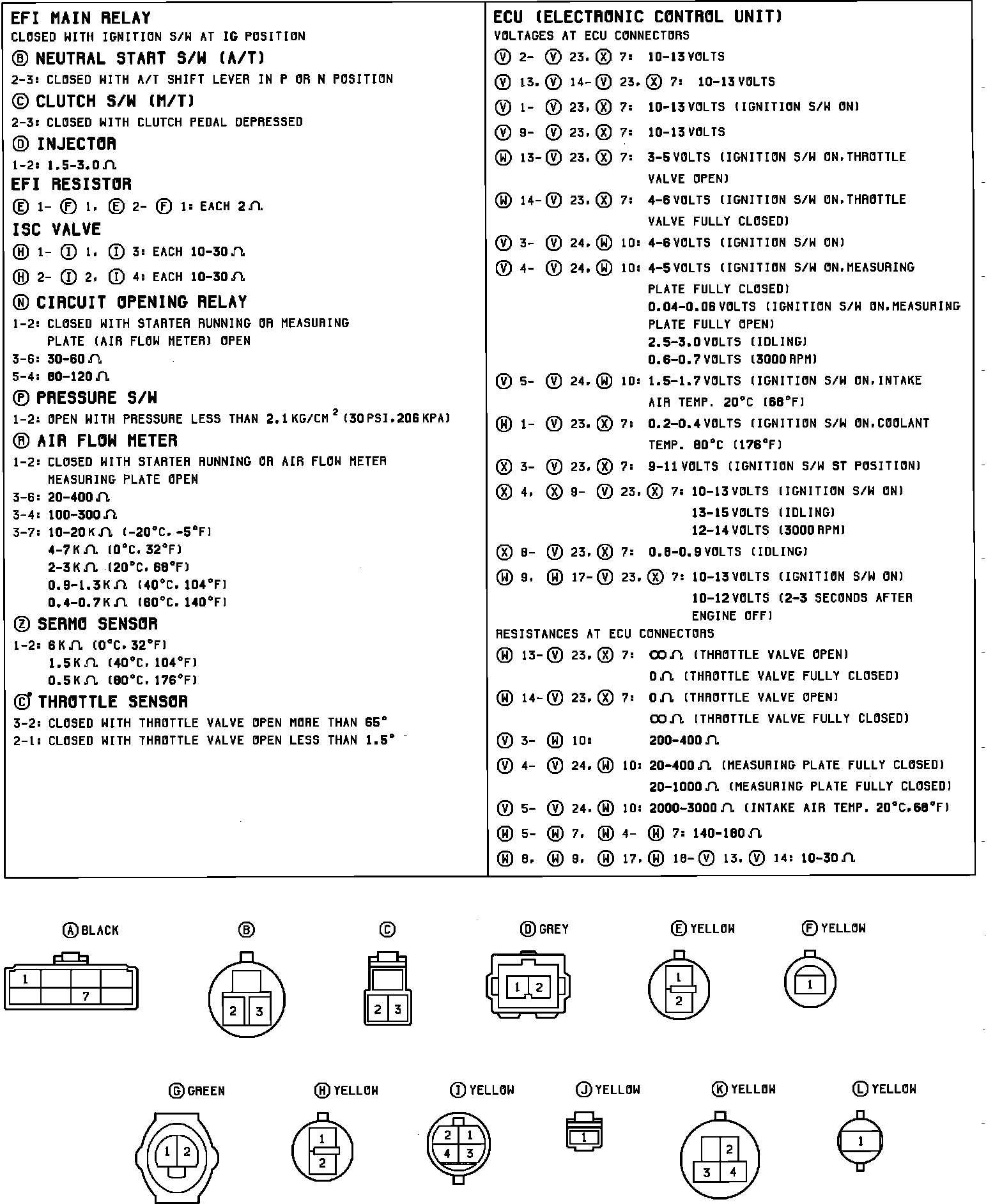

Fig. 81 EFI Wiring Diagram.:

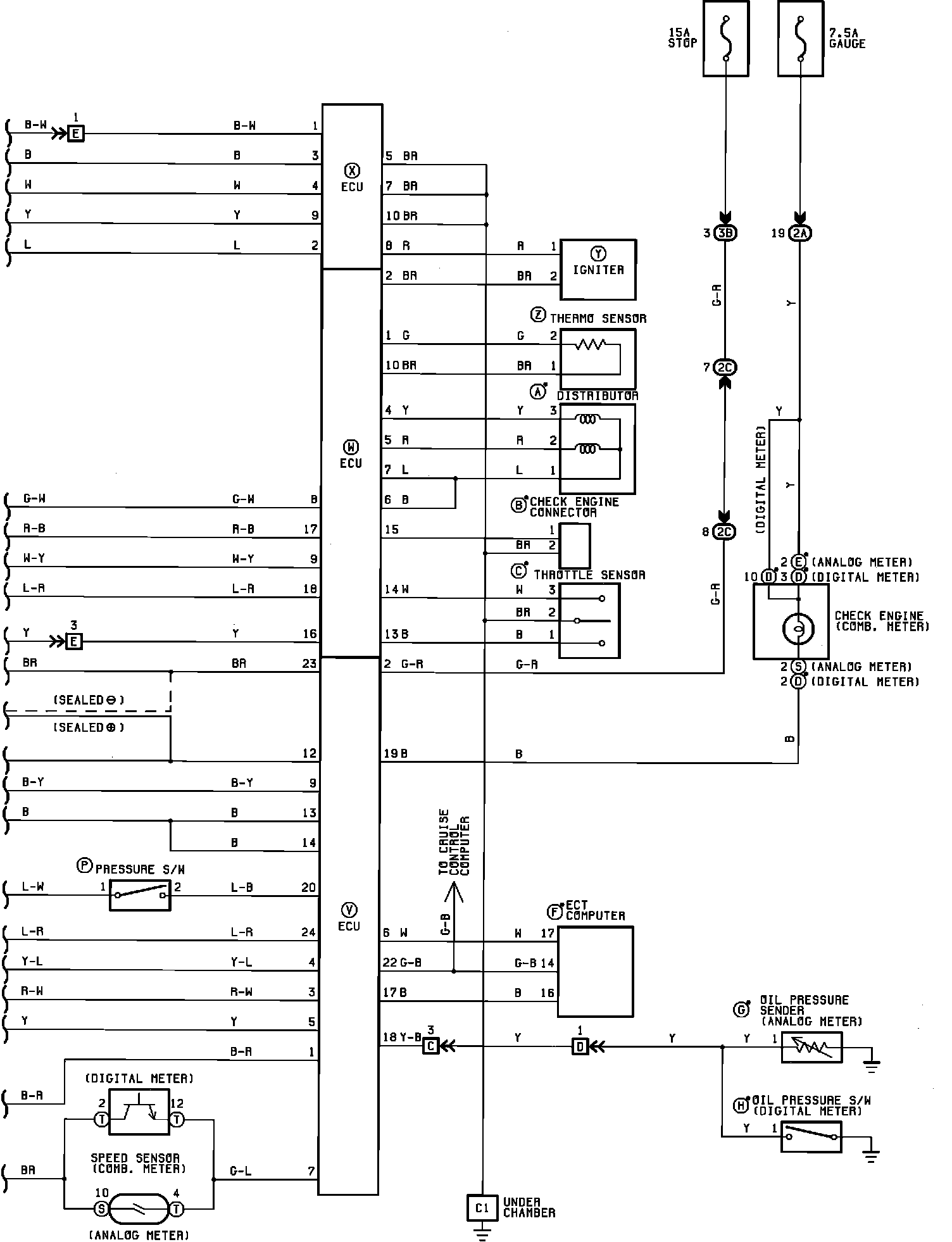

Fig. 82 EFI Wiring Diagram.:
