Motor Check

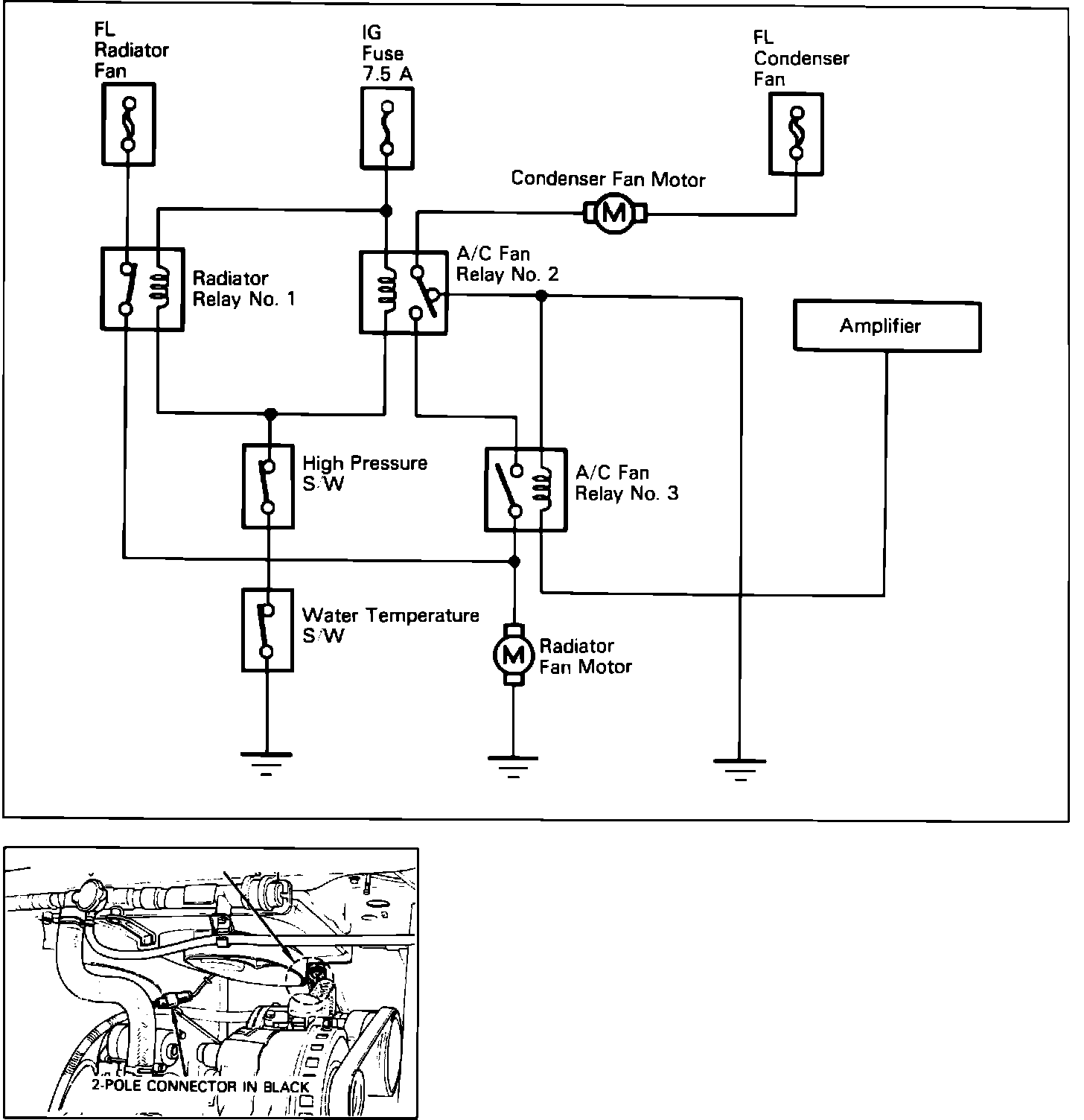

Condenser Fan Motor Circuit:

1. Disconnect negative battery cable and unplug motor connector.
2. Apply 12V across motor terminals and check that motor turns smoothly.
3. Check that current draw is 6.7 ± 0.7 amps.
4. If not as specified, replace motor.
