Alarm Module: Testing and Inspection

Theft Deterrent Computer Inspection:

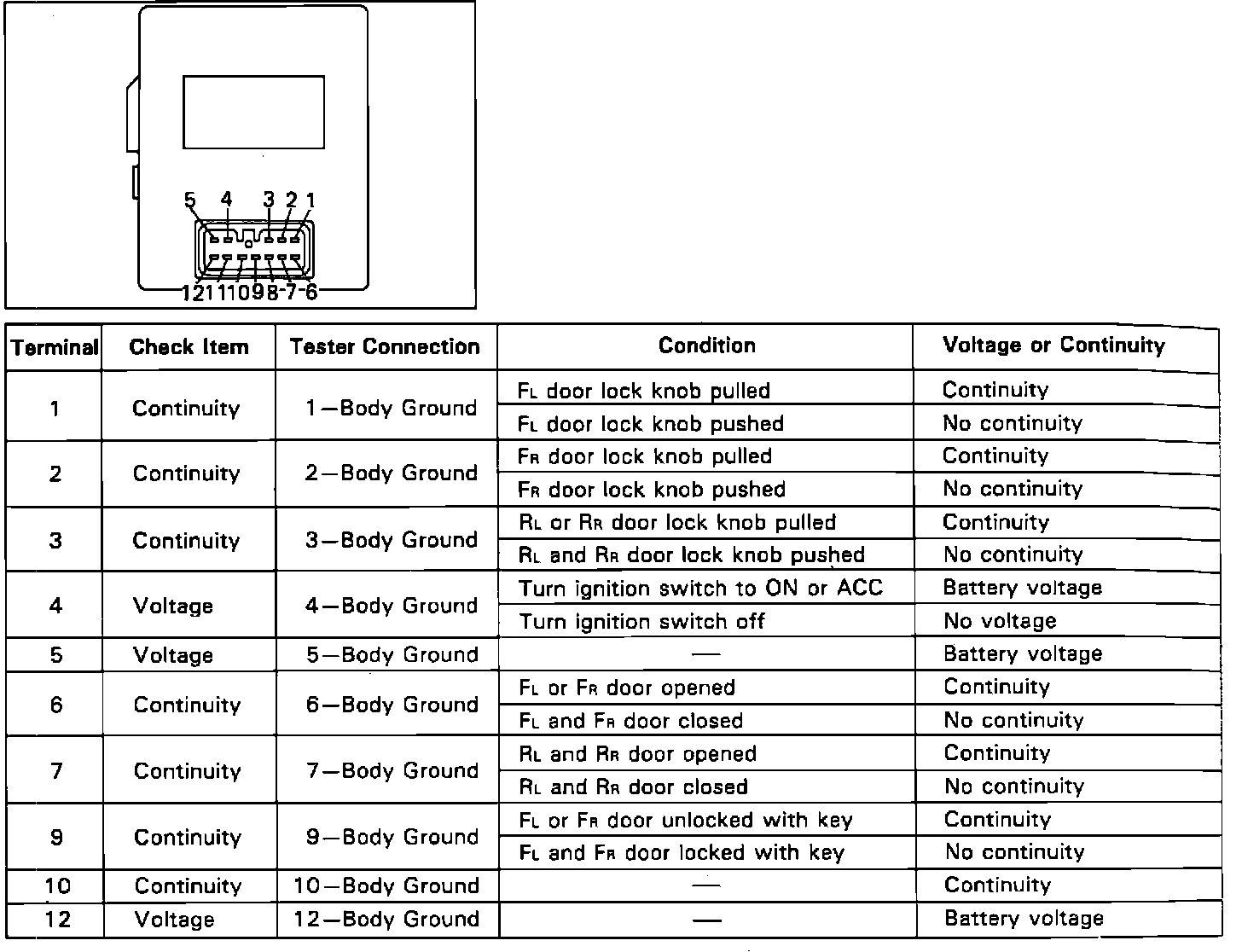

1. Unplug computer and inspect connector on harness side as shown on image chart.
2. If circuit is correct, replace computer.
