Specifications
>>
Mechanical Specifications
>>
Manual Transmission/Transaxle
>>

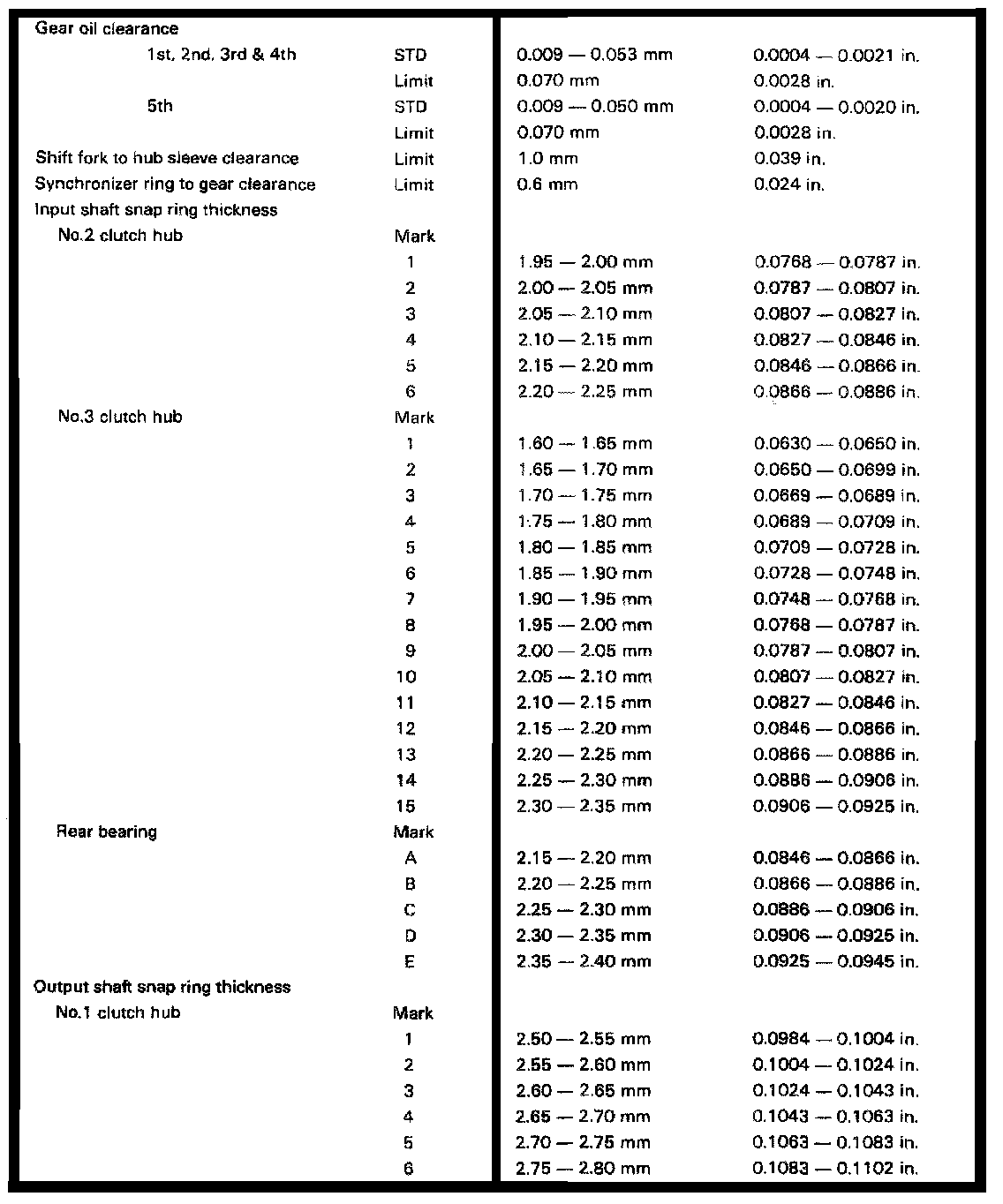

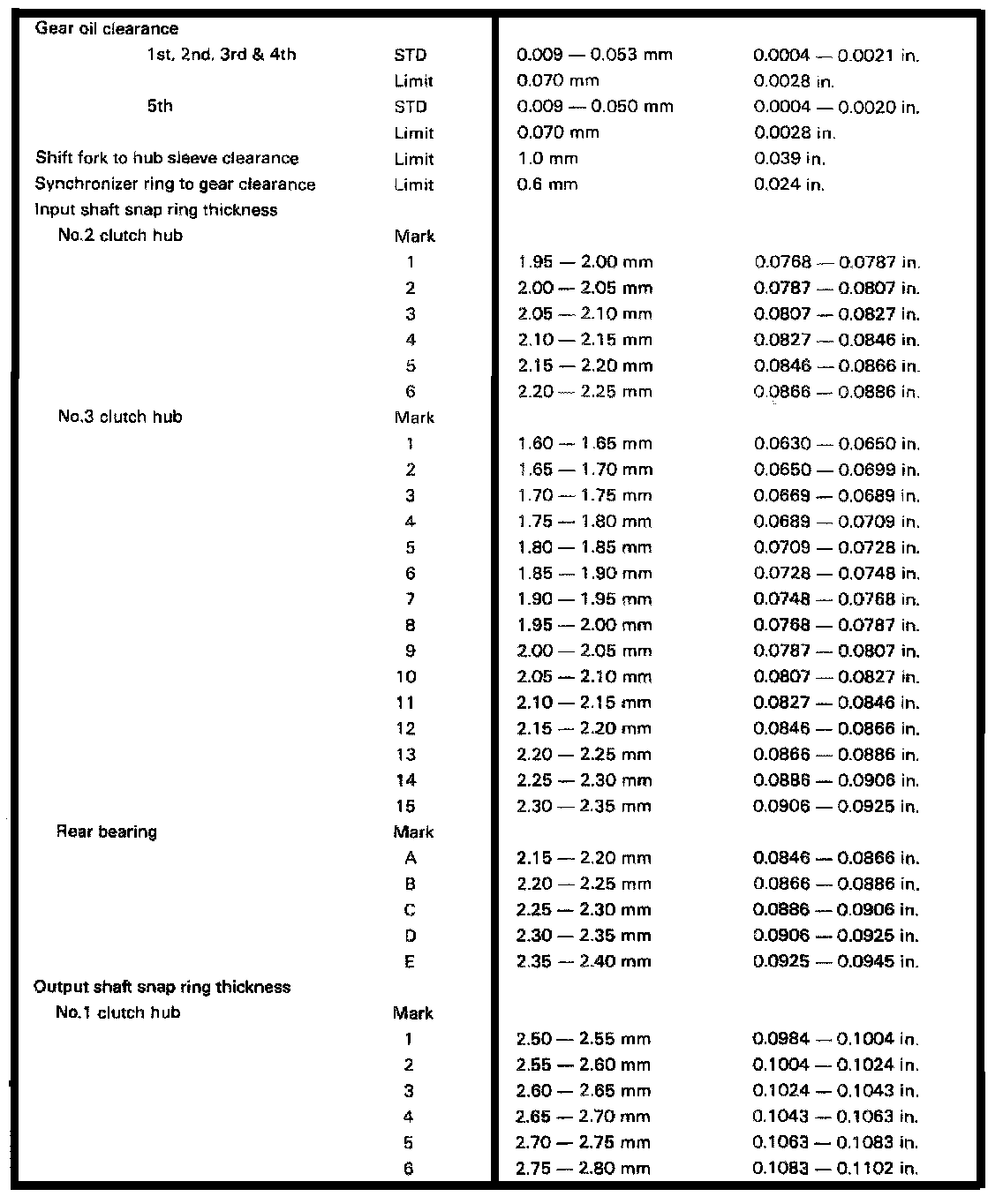

M/T Technical Data
M/T Technical Data
S51 5-spd M/T, Clutch Clearance:
S51 5-spd M/T, Shaft/Gear Clearance:
S51 5-spd M/T, Gear/Clutch Hub Thickness:
S51 5-spd M/T, Side Bearing/Shift Lever Shim Thickness:
