Component Test

ON-VEHICLE INSPECTION

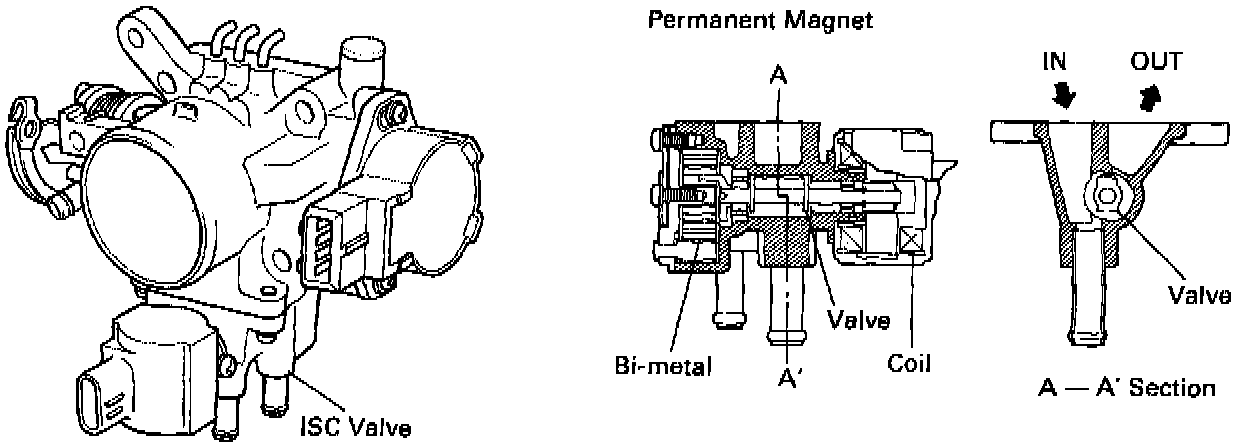

INSPECT ISC VALVE RESISTANCE
(a) Disconnect the ISC valve connector.

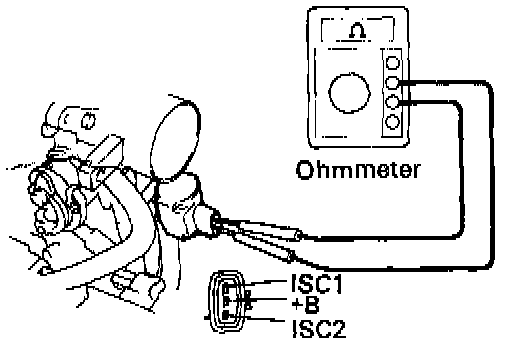

(b) Measure the resistance between the terminals +B and other terminals (ISC1, ISC2).

Resistance: 16.0 - 17.0 ohms

If the resistance is not as specified, replace the valve.

(c) Reconnect the ISC valve connector.
