Throttle Cable

REMOVAL OF THROTTLE CABLE




1. DISCONNECT THROTTLE CABLE

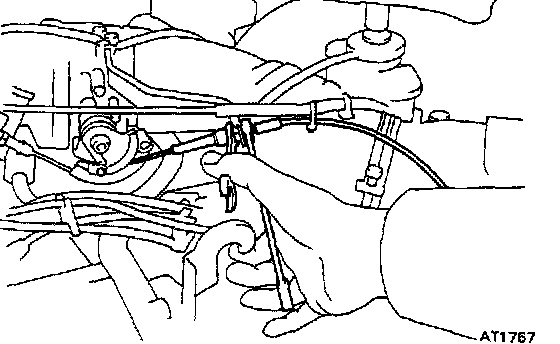

(a) Disconnect the cable housing from the bracket.
(b) Disconnect the cable from the throttle linkage.




2. REMOVE NEUTRAL START SWITCH

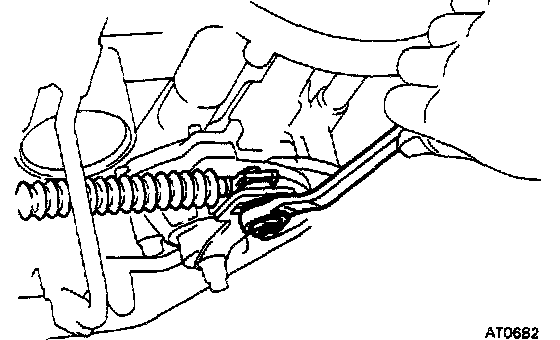

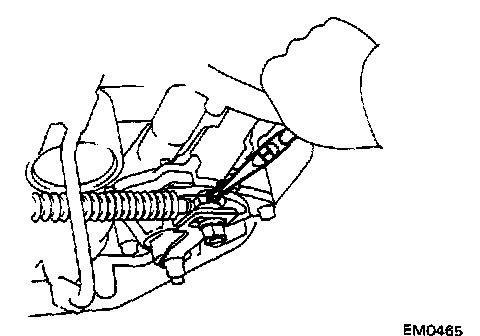

(a) Remove the clip and, disconnect the transmission control cable from manual shift lever.
(b) Remove the manual shift lever.
(c) Remove the neutral start switch.

3. REMOVE VALVE BODY.




4. PULL THROTTLE CABLE OUT OF TRANSMISSION CASE

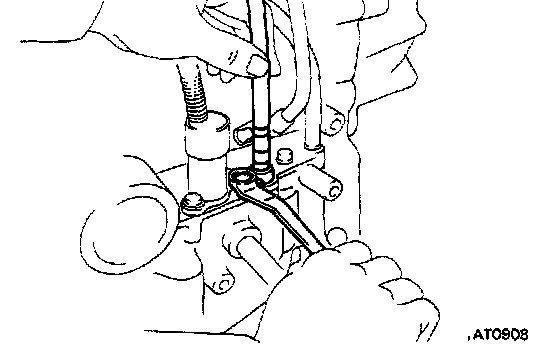

(a) Remove the one bolt and retaining plate.
(b) Pull the cable out of the transmission case.


INSTALLATION OF THROTTLE CABLE




1. INSTALL CABLE IN TRANSMISSION CASE

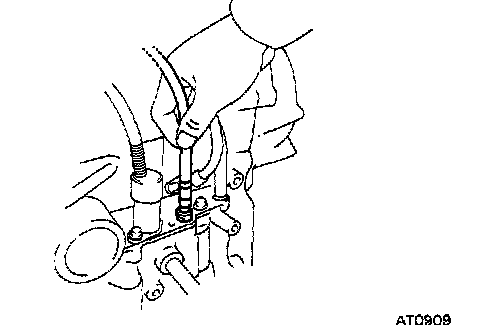

(a) Be sure to push it in all the way.
(b) Install the retaining plate and one bolt.

2. INSTALL VALVE BODY
3. IF THROTTLE CABLE IS NEW, STAKE STOPPER TO INNER CABLE

NOTE: New cables do not have a staked stopper.

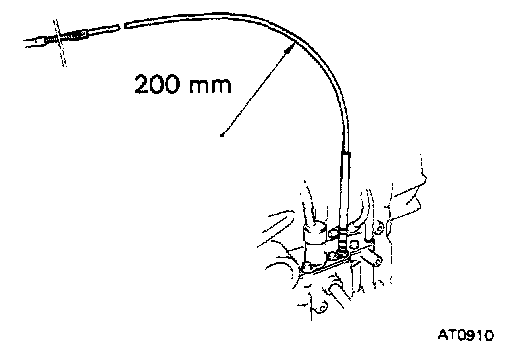

(a) Bend the cable so there is a radius of about 200 mm (7.87 in.).
(b) Pull the inner cable lightly until a slight resistance is felt, and hold it.

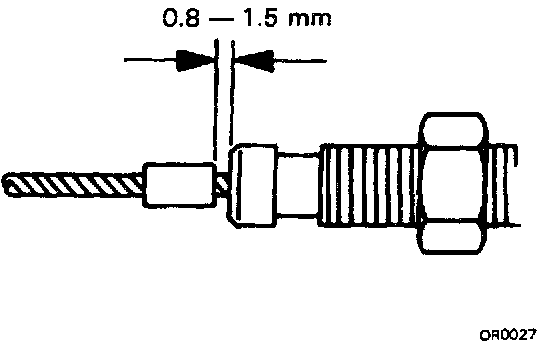

(c) Stake the stopper 0.8 1.5 mm (0.031 0.059 in.) from the end of outer cable as shown.

4. CONNECT THROTTLE CABLE
(a) Connect the cable to the throttle linkage.
(b) Connect the cable housing to the bracket.

5. ADJUST THROTTLE CABLE




6. INSTALL NEUTRAL START SWITCH
7. TEST DRIVE VEHICLE
