Home
>>
Toyota
>>
1987
>>
Tercel Wagon L4-1452cc 1.5L SOHC (3A-C)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagrams
>>
Connector Views
Connector Views

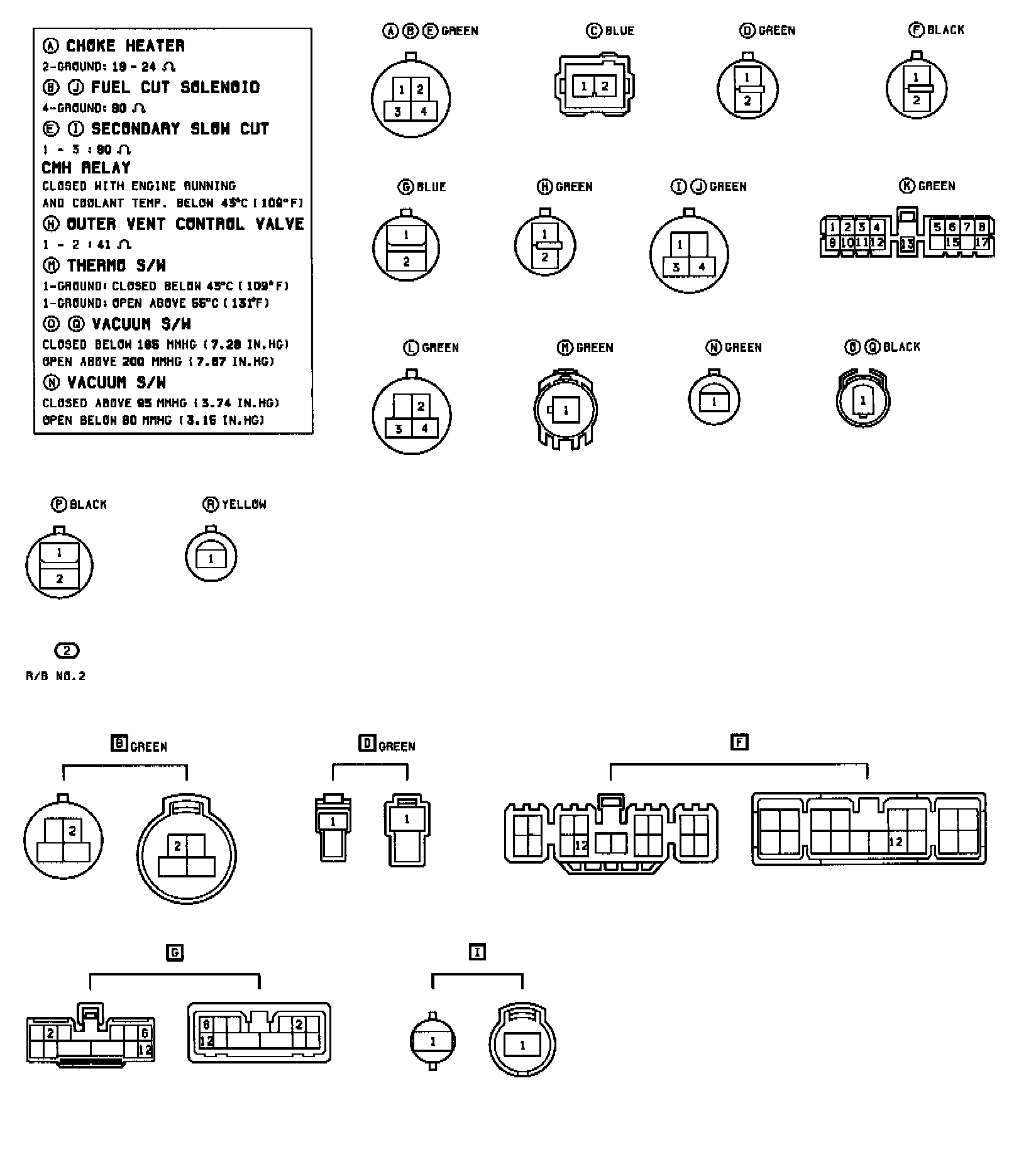

Computer Control Connectors:
