Power and Ground Distribution
>>
Fuse
>>
Locations
>>

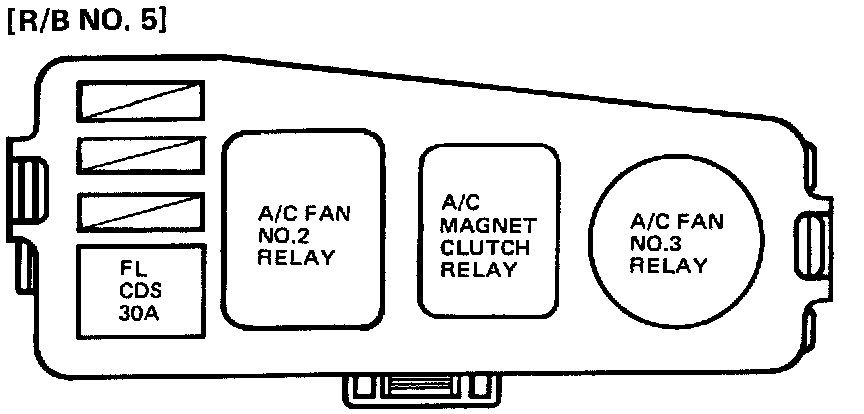

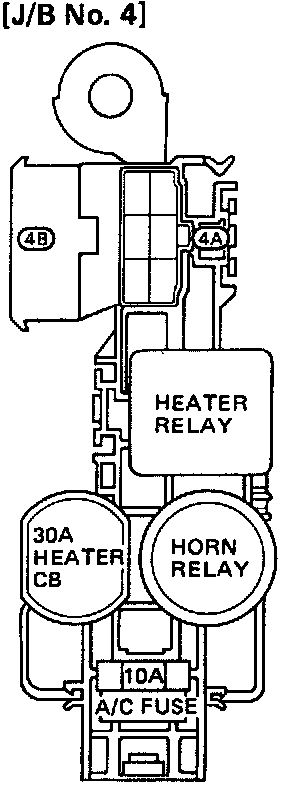

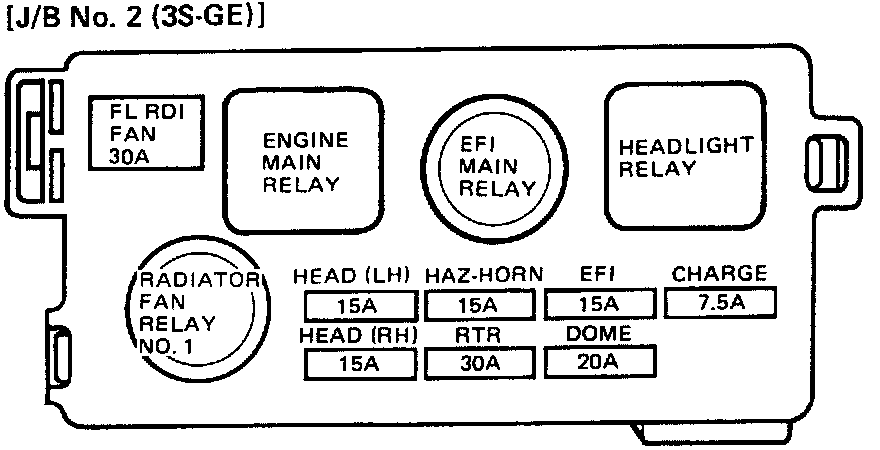

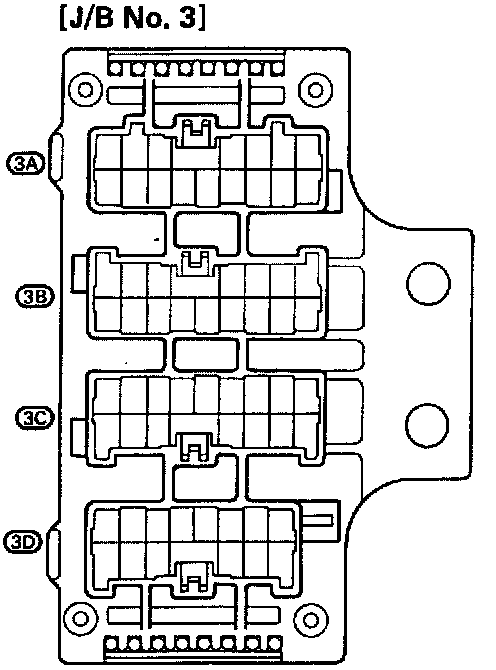

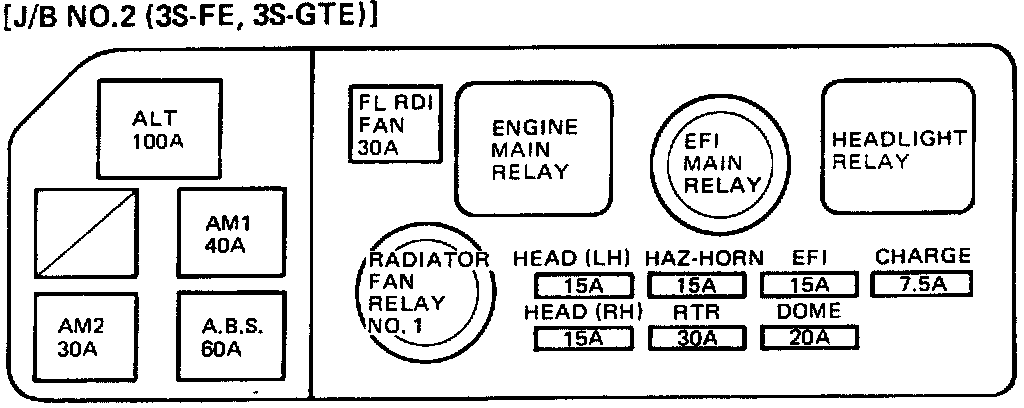

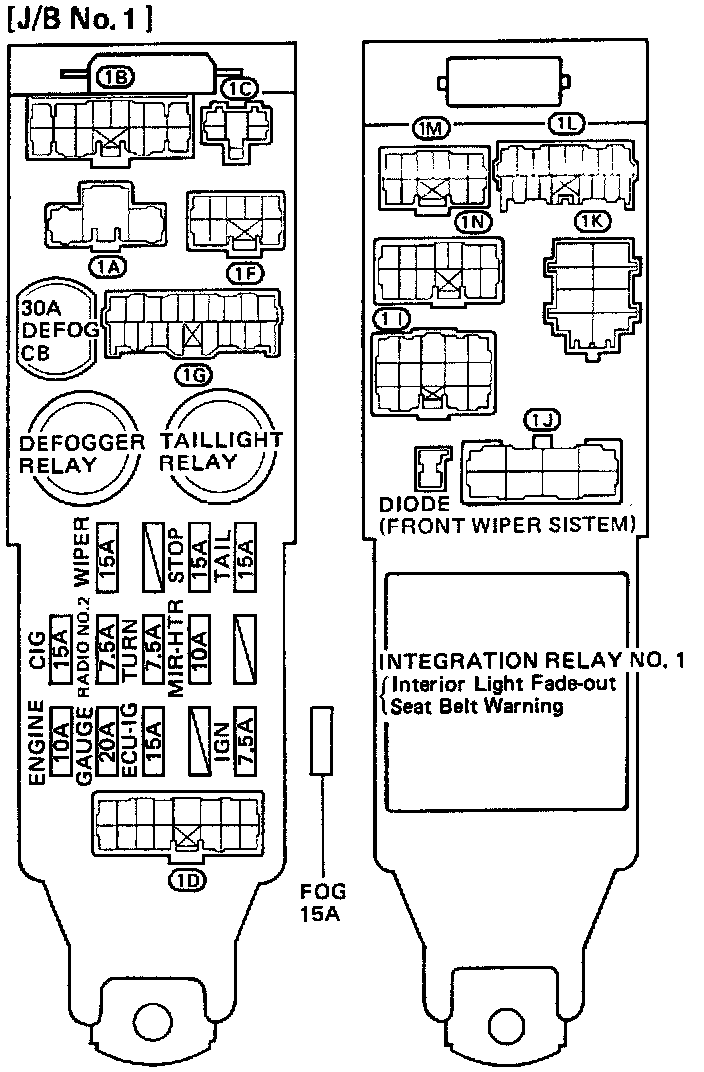

Fuse Panel Details
Fuse Panel Details

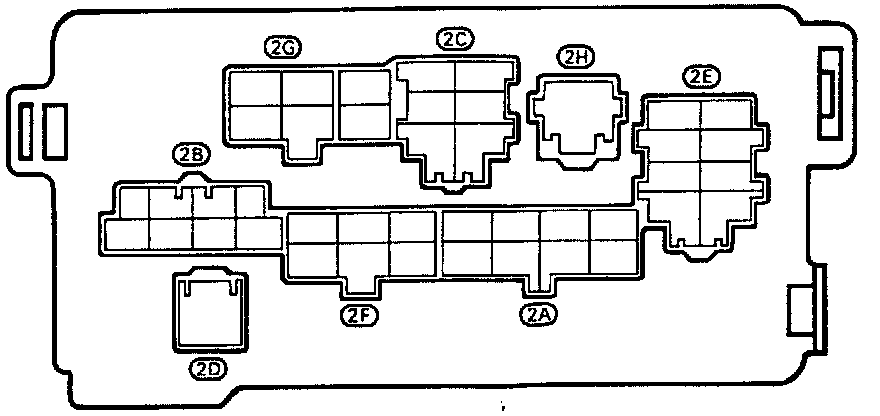

J/B No.2 Connectors:
