Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1989
>>
Celica L4-2.0L (3S-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Malfunction Indicator Lamp
>>
Testing and Inspection
>>
3S-FE Engine (Non Turbocharged)
>>

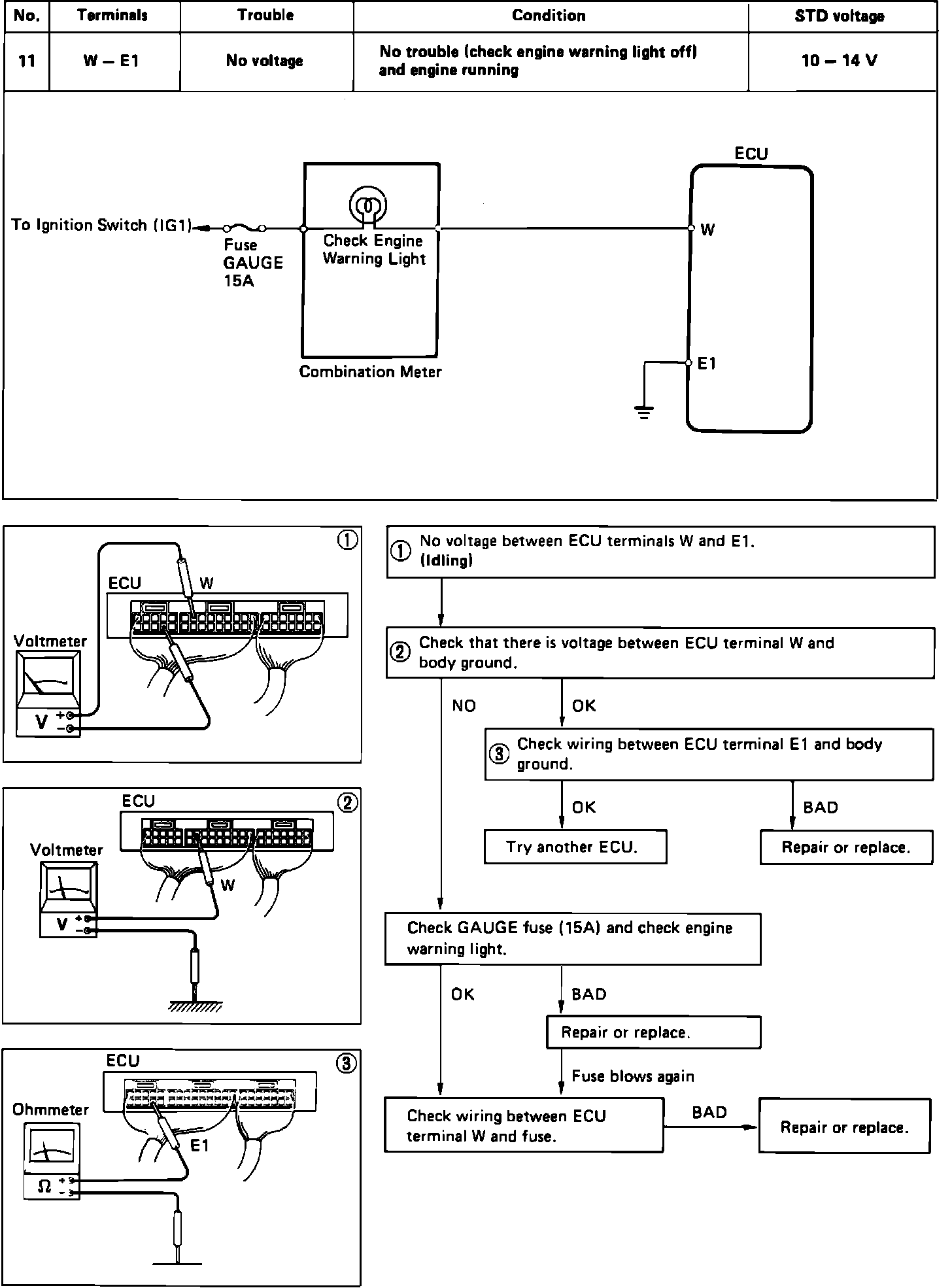

"Check Engine" Light Circuit Test
"Check Engine" Light Circuit Test
"Check Engine" Light Circuit Test:
