Component Locations

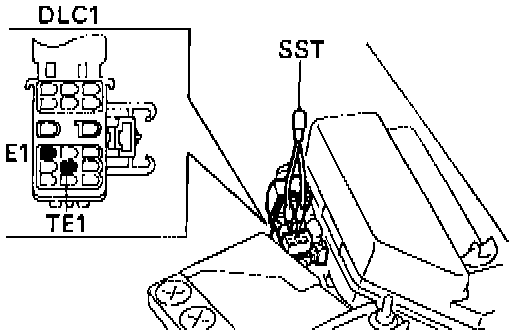

DLC 1 Location And SST Used To Connect TE1 And E1:
The Data Link Connector (DLC 1) is mounted on the side of Relay Block No. 2, at the front left of the engine compartment, near the battery.
The Data Link Connector (DLC 1) is mounted on the side of Relay Block No. 2, at the front left of the engine compartment, near the battery.
