Transmission Position Sensor/Switch: Testing and Inspection

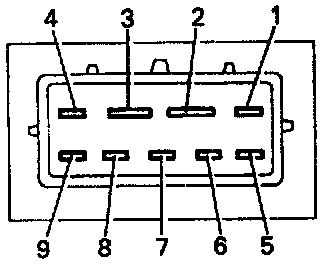

PARK/NEUTRAL POSITION SWITCH

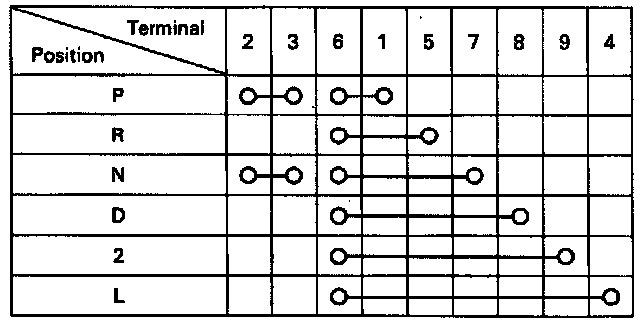

Using an ohmmeter, check the continuity of the terminals for each switch position shown in the table.
