Transmission Control Systems: Service Precautions

PRECAUTION
- Do not open the cover or the case of the Engine Control Module (ECM) and various computer unless absolutely necessary. (If the IC terminals are touched, the IC may be destroyed by static electricity)

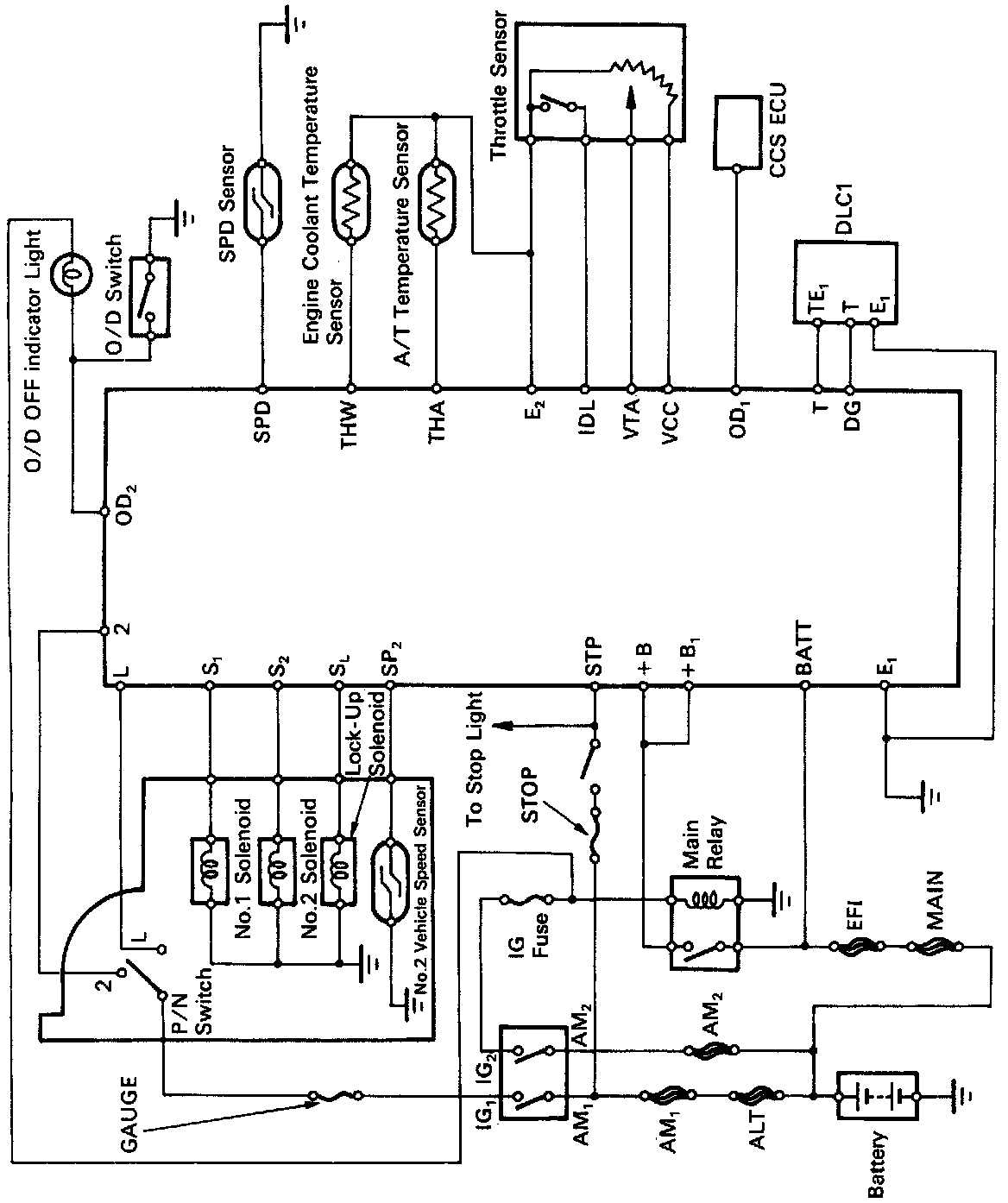

ELECTRONIC CONTROL CIRCUIT
