Ignition Timing

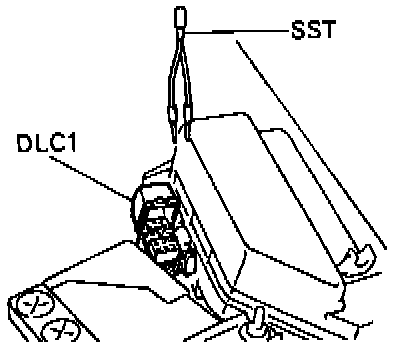

DLC 1 Location And SST:






With Terminals TE1 and E1 of DLC 1 connected 10 ° @ 750 rpm
