Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
1996
>>
Paseo L4-1497cc 1.5L DOHC (5E-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
Transmission Control Systems

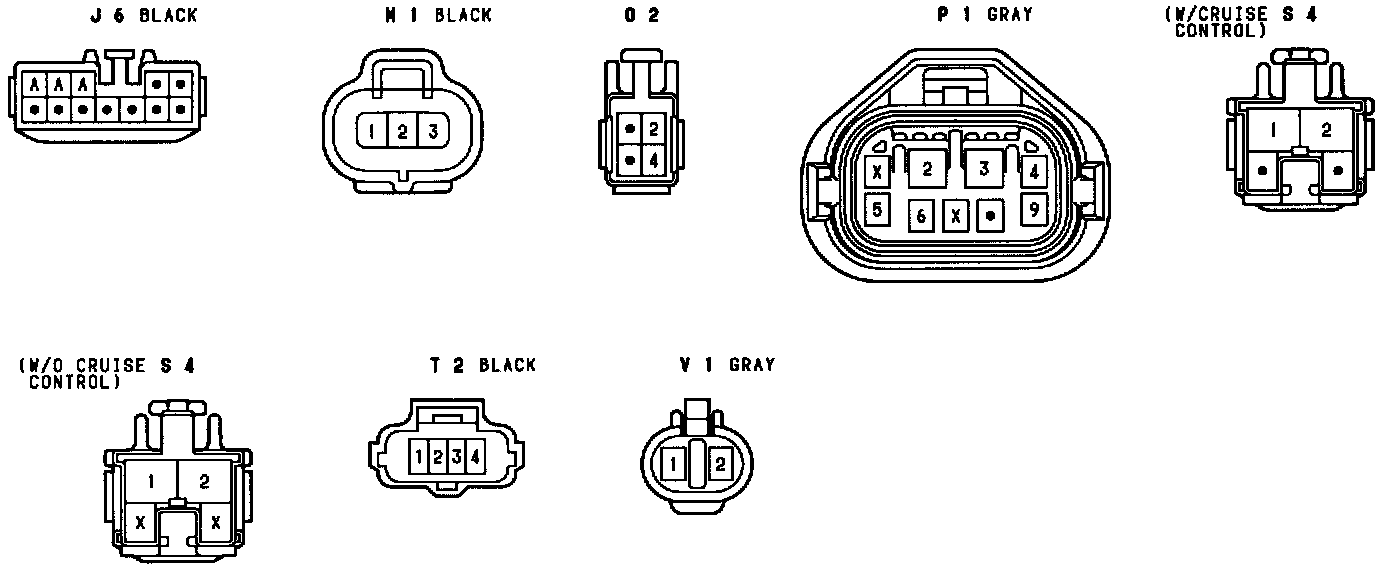

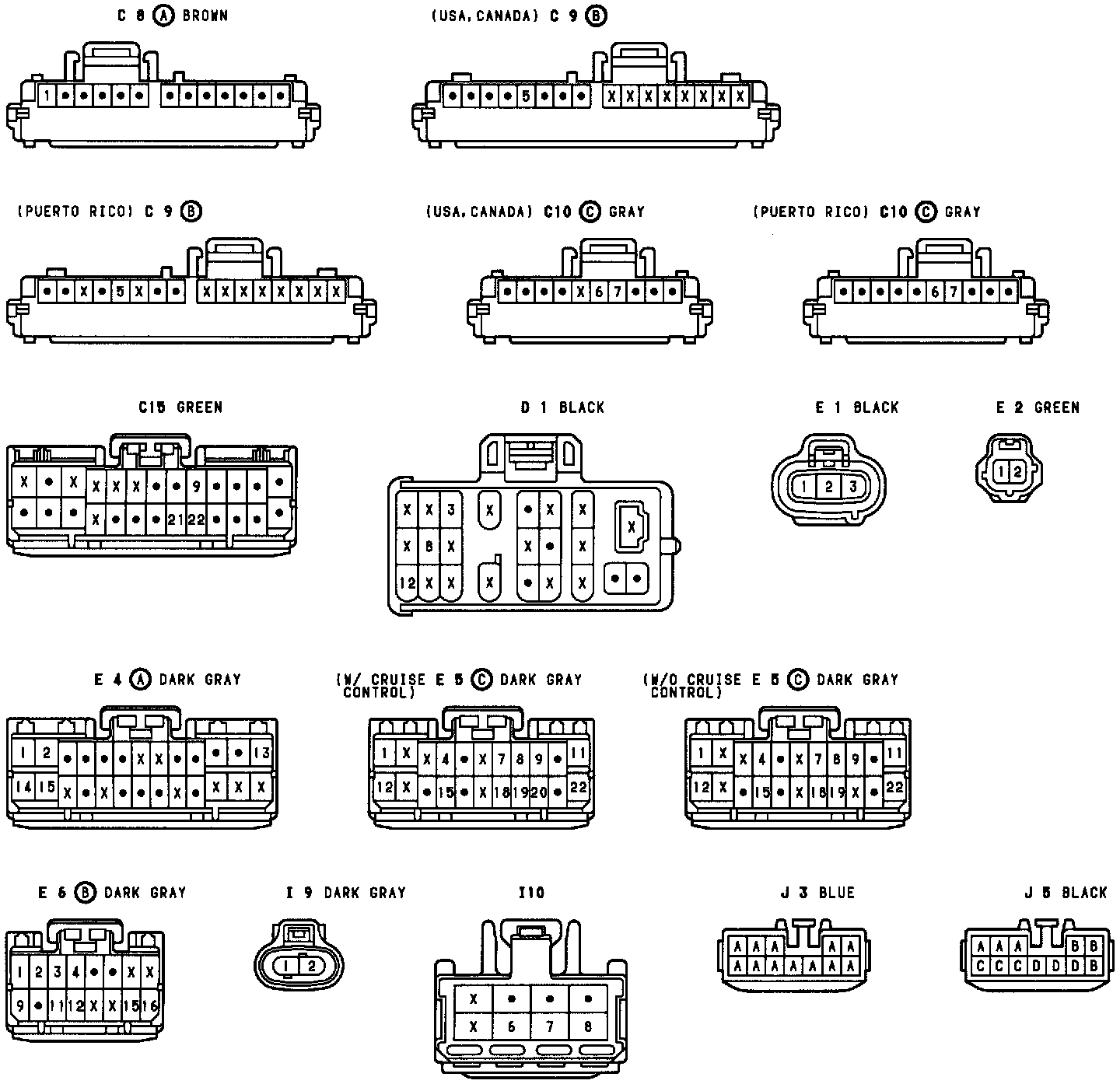

Electronically Controlled Transmission - Connectors:
Electronically Controlled Transmission - Connectors:
