Engine Oil: Service and Repair

WARNING:
^ Prolonged and repeated contact with mineral oil will result in the removal of natural fats from the skin, leading to dryness, irritation and dermatitis. In addition, used engine oil contains potentially harmful contaminants which may cause skin cancer. Adequate means of skin protection and washing facilities should be provided.
^ Care should be taken, therefore, when changing engine oil, to minimize the frequency and length of time your skin is exposed to used engine oil. Protective clothing and gloves, that cannot be penetrated by oil, should be worn. Wash your skin thoroughly with soap and water, or use waterless hand cleaner, to remove any used engine oil. Do not use gasoline, thinners, or solvents.
^ In order to preserve the environment, used oil must be disposed of only at designated disposal sites.





1. Drain engine oil.
(a) Remove the oil filler cap.
(b) Remove the oil drain plug and drain the oil into a container.
2. Replace oil filter.

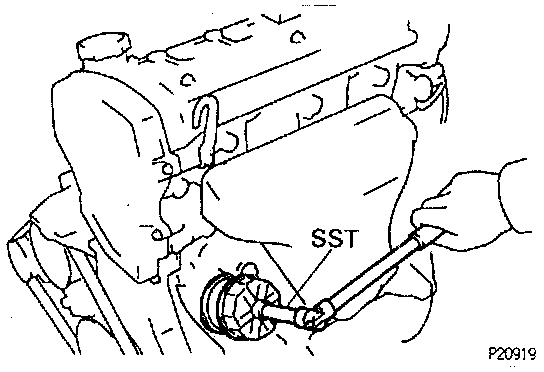

(a) Using Special Service Tool (SST) # 09228 - 06501 or equivalent, remove the oil filter.
(b) Clean the filter contact surface on the filter mounting.
(c) Lubricate the filter rubber gasket with engine oil.

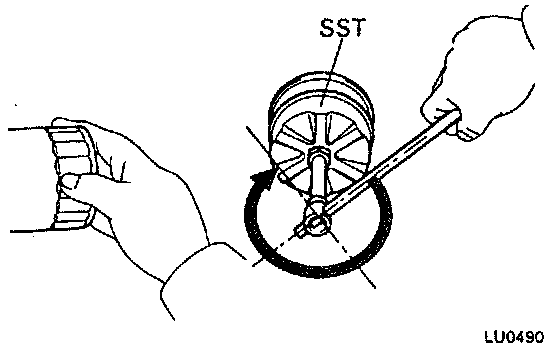

(d) Tighten filter until the gasket contacts seat of the filter mounting.
Then using SST, give it an additional 3/4 turn to seat the filter.
3. Fill with engine oil.
(a) Clean and install the oil drain plug with a new gasket.
Torque: 25 Nm (250 kg.cm, 18 ft. lbs.)
(b) Fill the engine with new oil.
Oil grade: See step 1 in oil pressure check.
Oil capacity: Drain and refill
w/o Oil filter change: 2.6 liters (2.7 US qts, 2.3 Imp. qts)
w/ Oil filter change: 2.8 liters (3.0 US qts, 2.5 Imp. qts)
Dry fill: 3.7 liters (3.9 US qts, 3.3 Imp. qts)
4. Start engine and check for leaks.
5. Check engine oil level.
