Load Compensator: Testing and Inspection

ON-VEHICLE INSPECTION

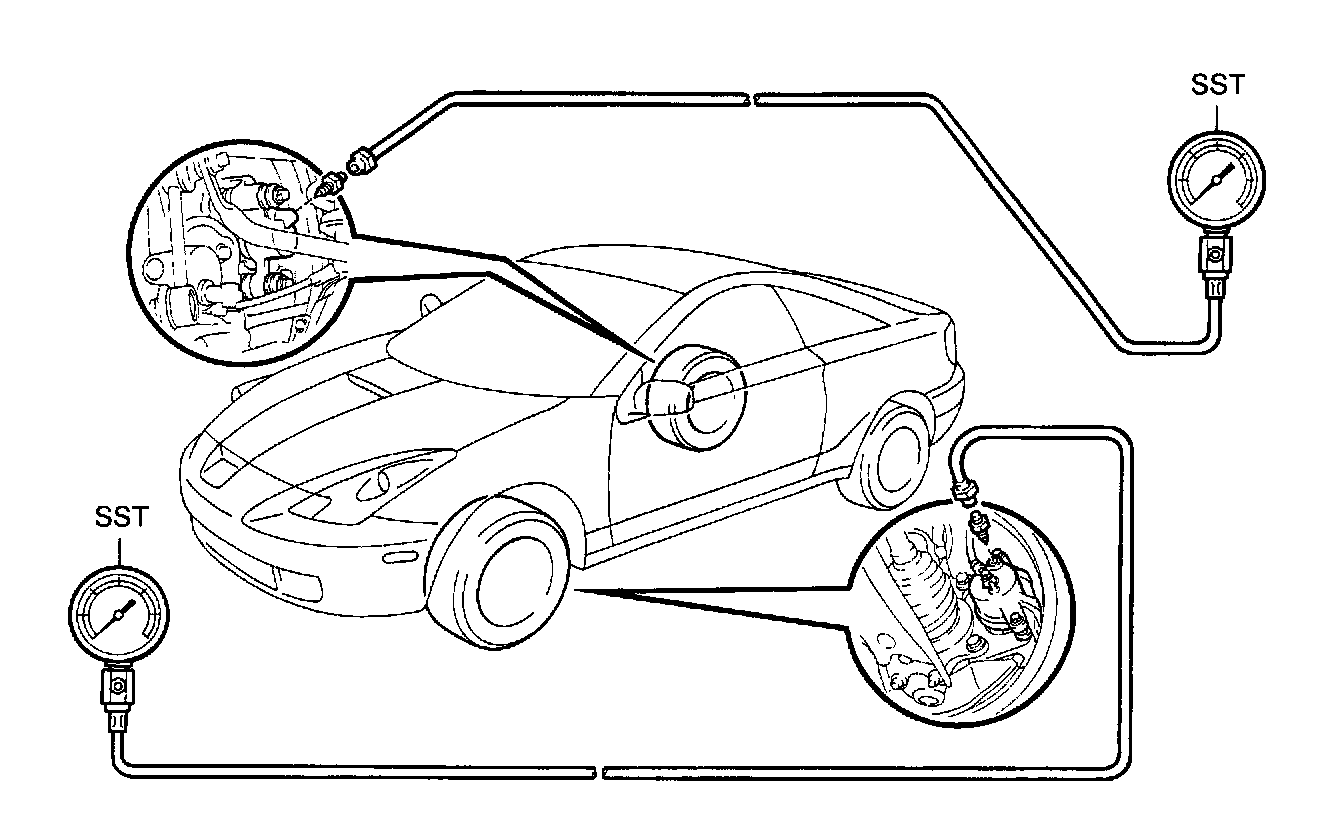

1. INSTALL LSPV GAUGE (SST) AND BLEED AIR
SST 09709-29018
2. BLEED AIR FROM FLUID PRESSURE GAUGE
3. RAISE MASTER CYLINDER PRESSURE AND CHECK REAR WHEEL CYLINDER OR REAR BRAKE CALIPER PRESSURE

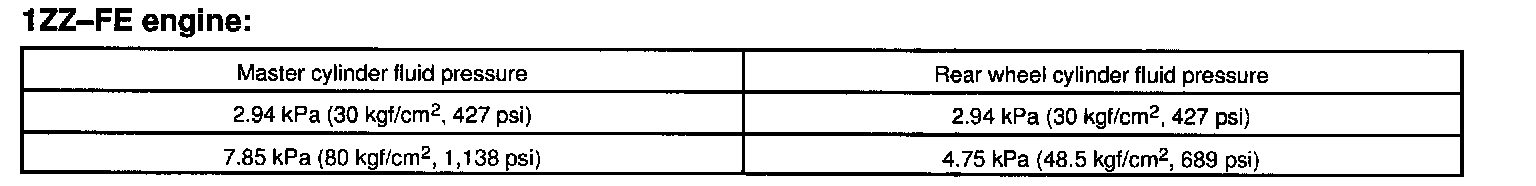

1ZZ-FE Engine:

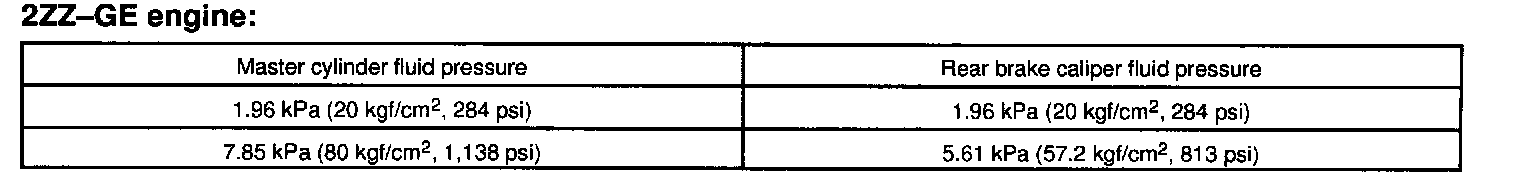

2ZZ-GE Engine:
When inspecting the fluid pressure, inspect the left font and right rear together, and the right front and left rear together.
If the rear fluid pressure is incorrect, replace the P valve assembly.
4. BLEED BRAKE SYSTEM
5. CHECK FOR LEAKS
