Relay Box: Locations

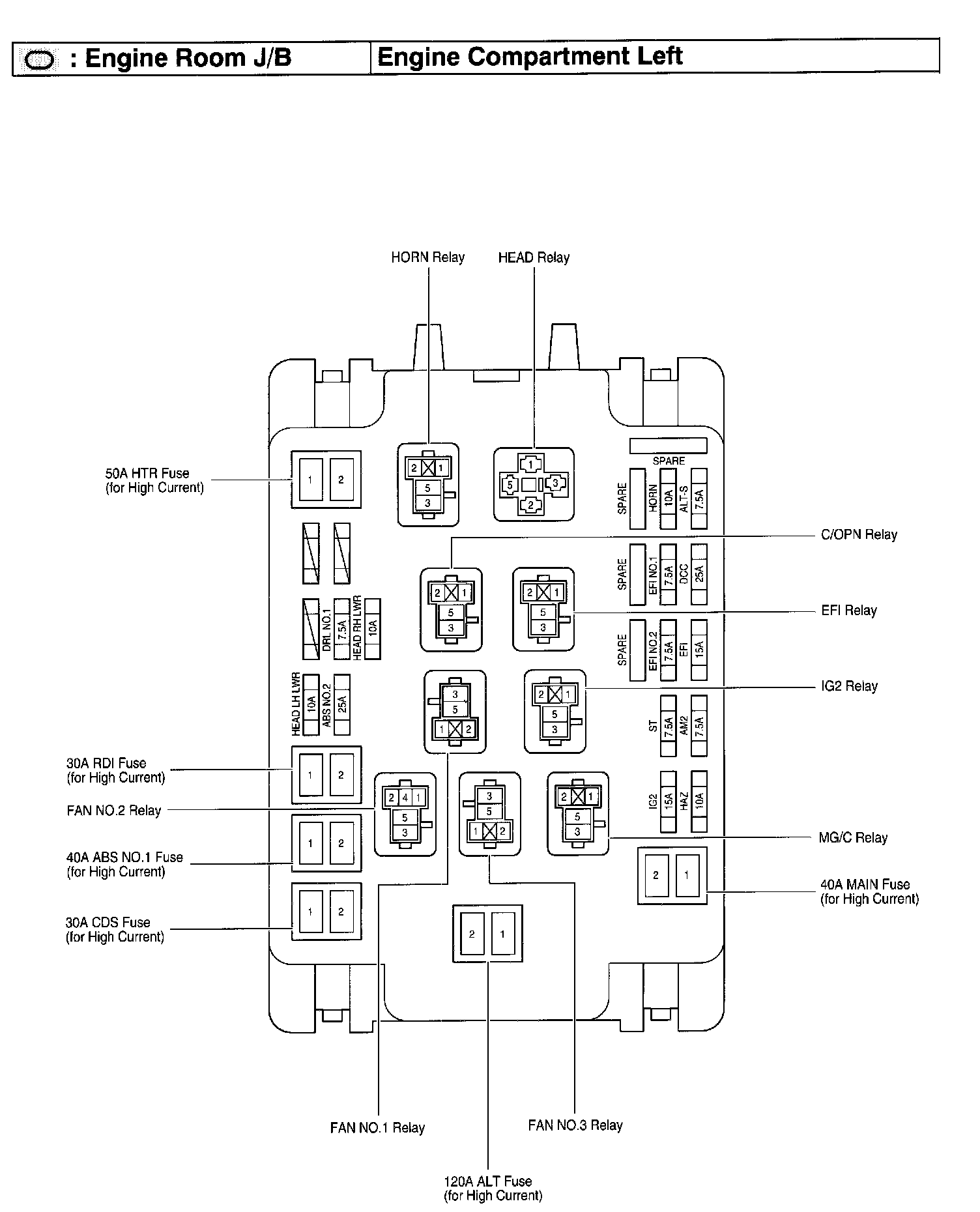

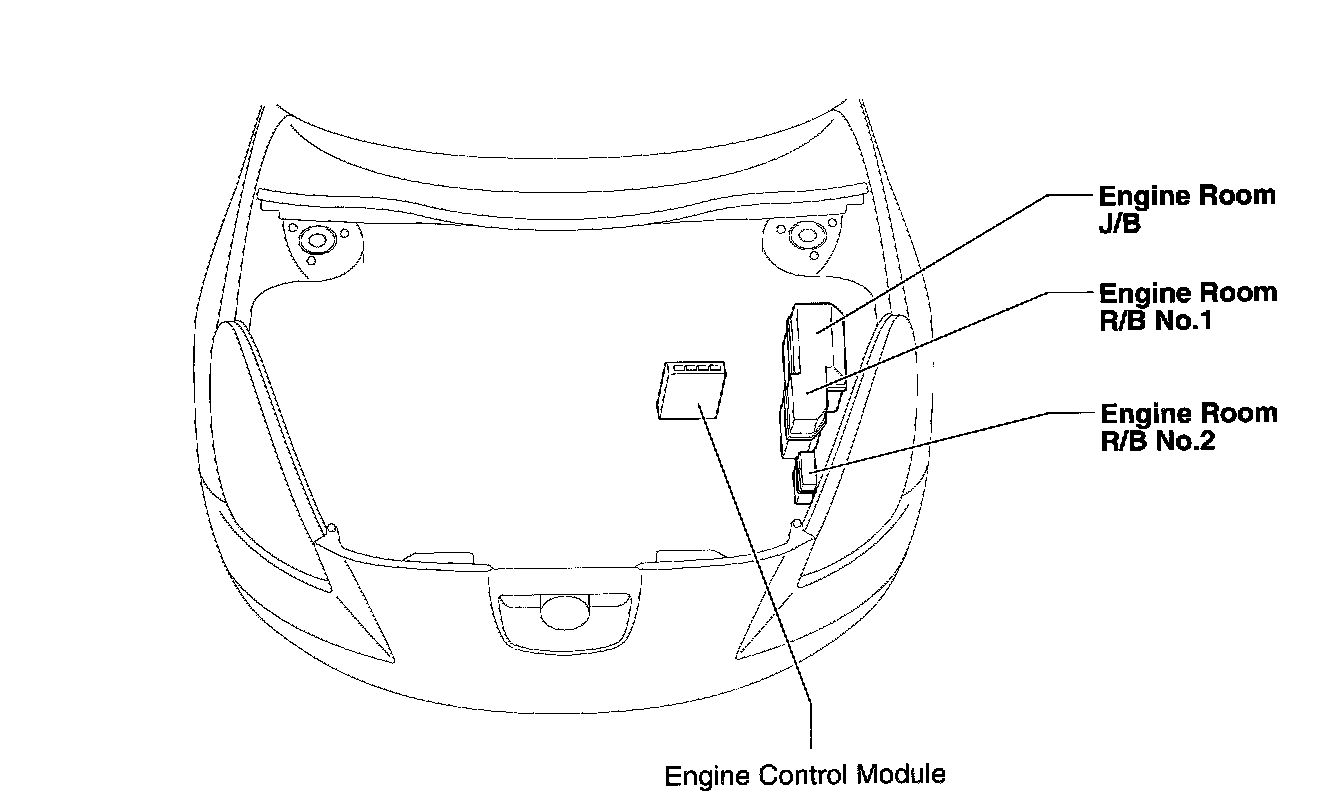

Engine Room J/B:

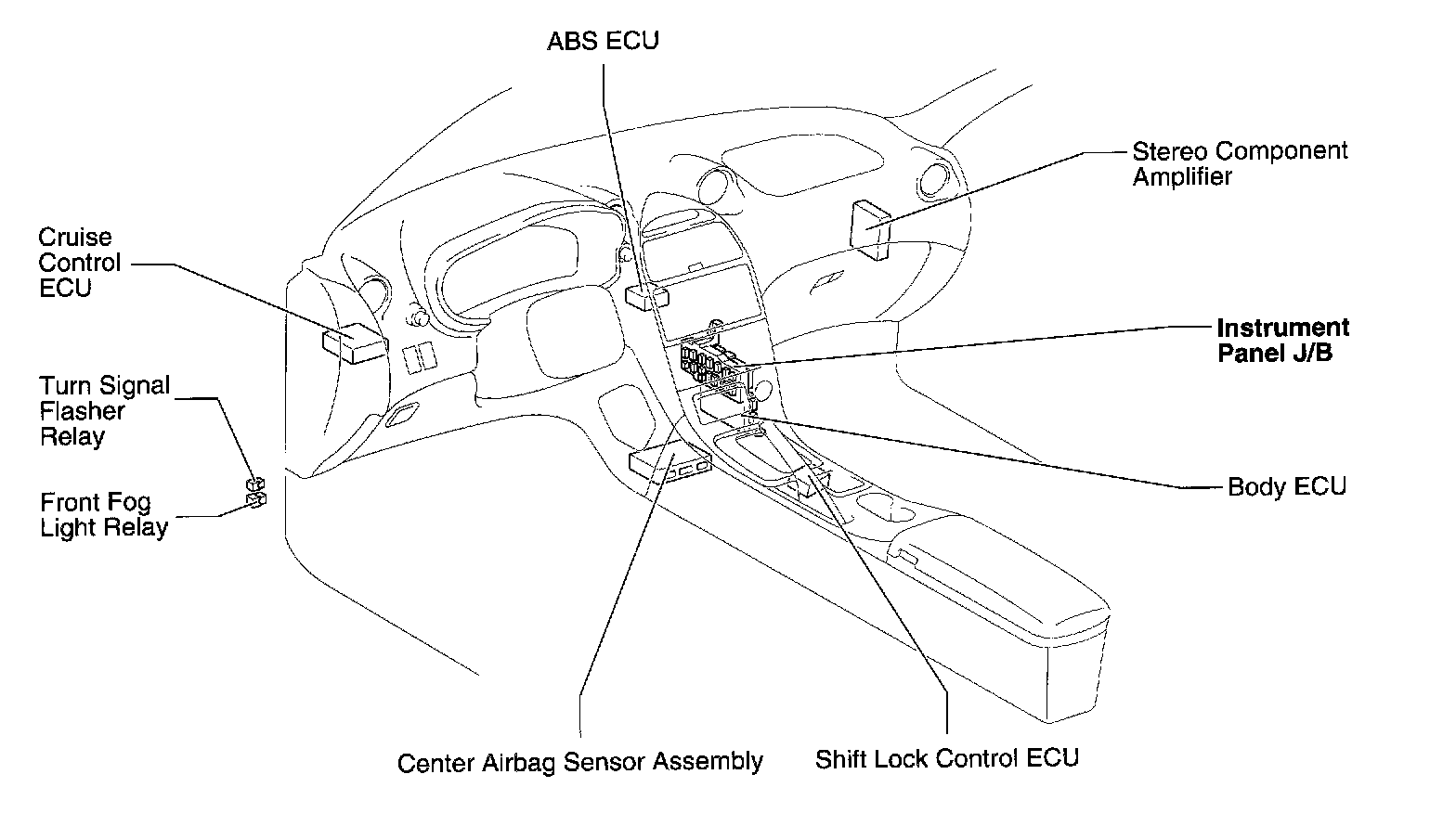

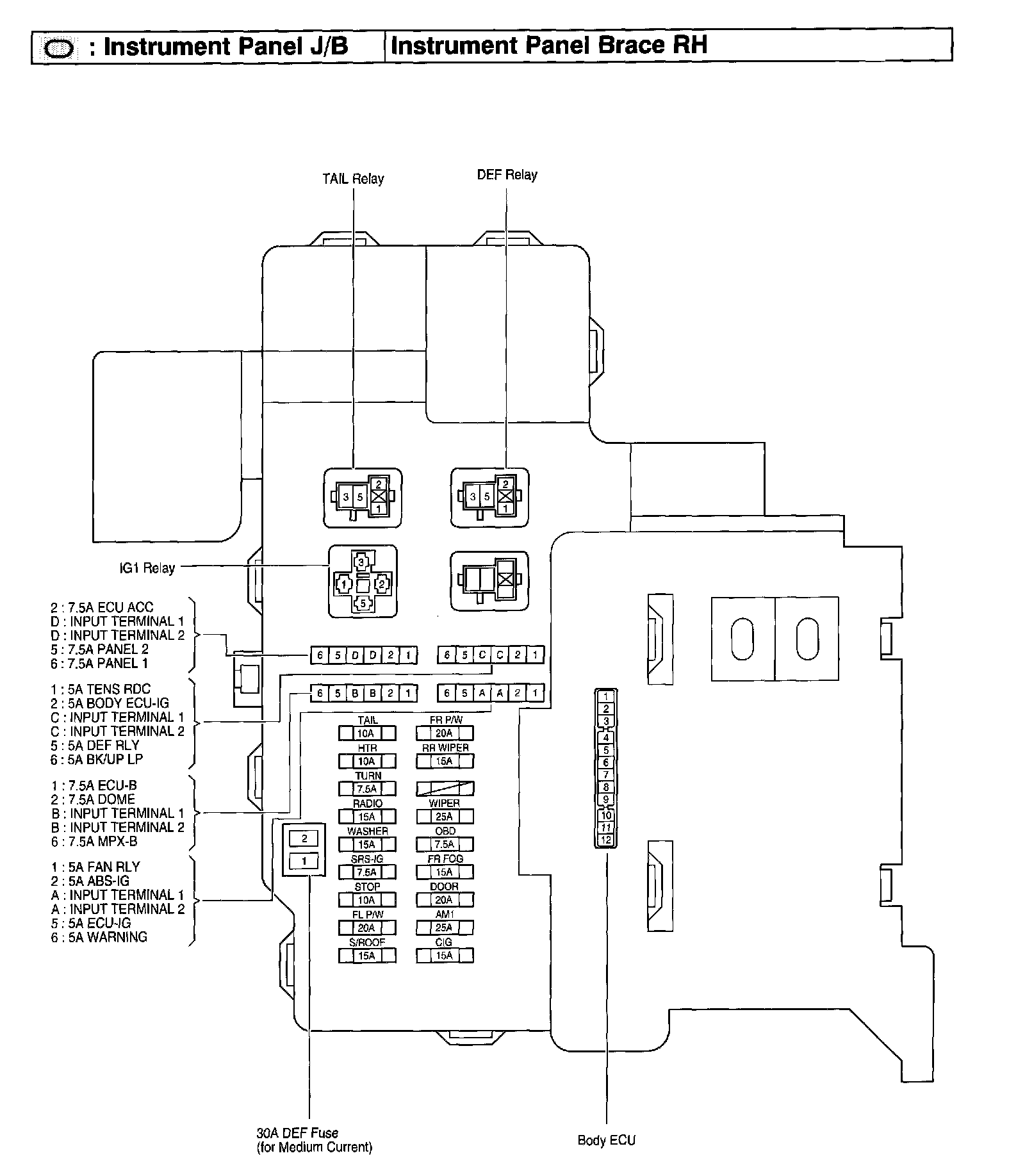

Instrument Panel J/B:
Engine Room R/B No. 1:
Engine Room R/B No. 2:
