Transmission Speed Sensor: Service and Repair
ON-VEHICLE REPAIR1. REMOVE BATTERY
2. REMOVE ECM AND ECM CASE
3. REMOVE ECM BRACKET

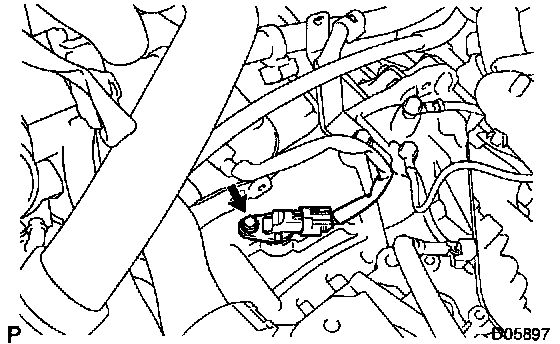

4. REMOVE DIRECT CLUTCH SPEED SENSOR
a) Disconnect the connector.
b) Remove the bolt and direct clutch speed sensor.
c) Remove the O-ring from the direct clutch speed sensor.
5. INSTALL DIRECT CLUTCH SPEED SENSOR
a) Coat a new O-ring with ATF and install it to the direct clutch speed sensor.
b) Install the direct clutch speed sensor with the bolt.
Torque: 7.8 Nm (80 kgf-cm, 69 inch lbs.)
c) Connect the connector.
6. INSTALL ECM BRACKET
Torque:
Bolt: 18 Nm (185 kgf-cm, 13 ft. lbs.)
Nut: 12 Nm (120 kgf-cm, 9 ft. lbs.)
7. INSTALL ECM AND ECM CASE
Torque: 6.9 Nm (70 kgf-cm, 61 inch lbs.)
8. INSTALL BATTERY
