Component Tests and General Diagnostics
Ignition Switch and Key Unlock Warning SwitchINSPECTION

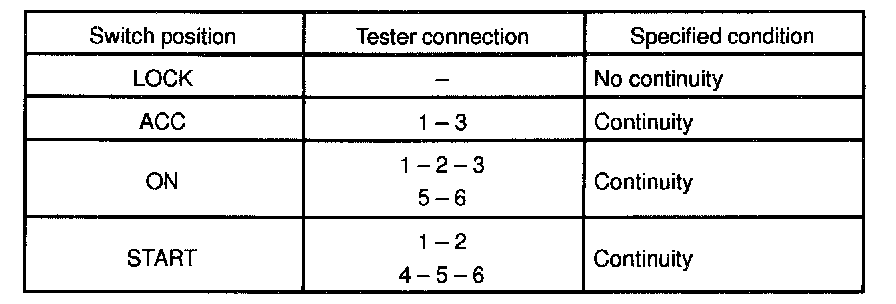

1. INSPECT IGNITION SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

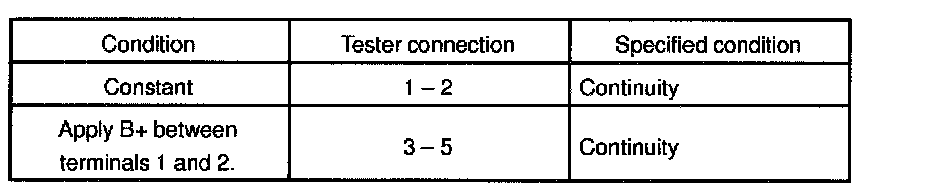

2. INSPECT KEY UNLOCK WARNING SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

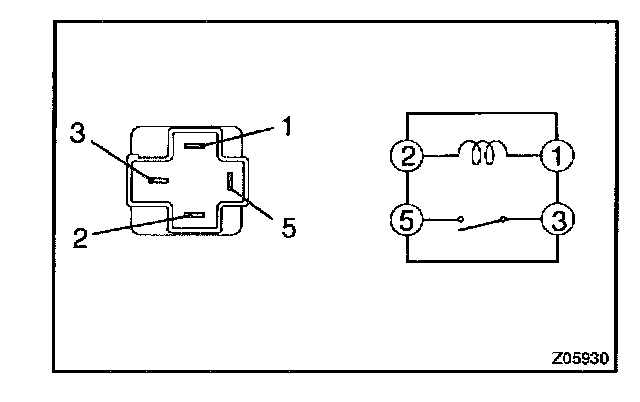

3. INSPECT IGNITION RELAY (Marking: IGI) CONTINUITY
If continuity is not as specified, replace the relay.
4. INSPECT KEY UNLOCK WARNING BUZZER
Check the buzzer sound when driver's door is opened and key inserted.
If operation is not as specified, replace the combination meter.
