Control Switch Circuit (Cruise Control Switch)

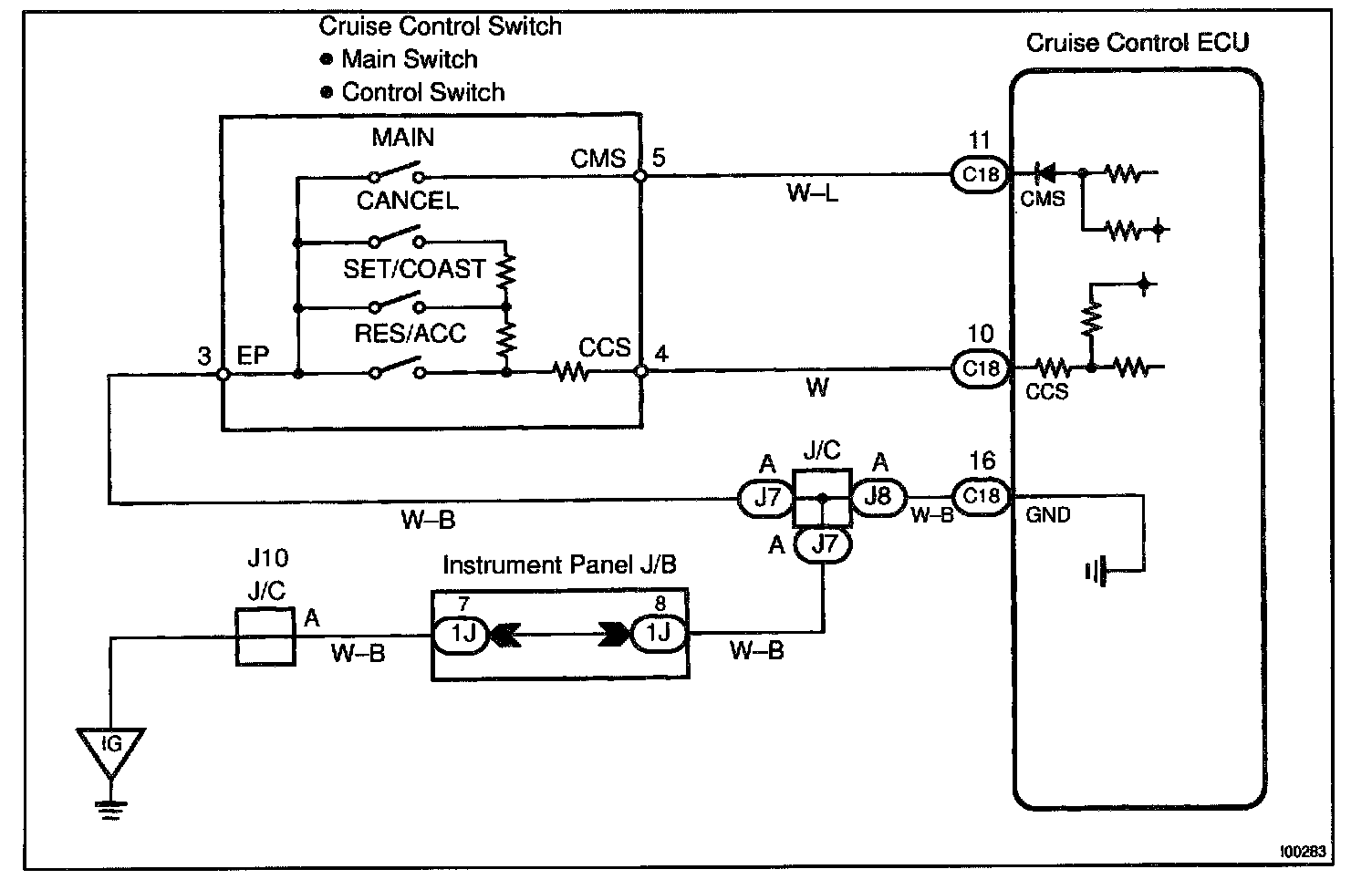

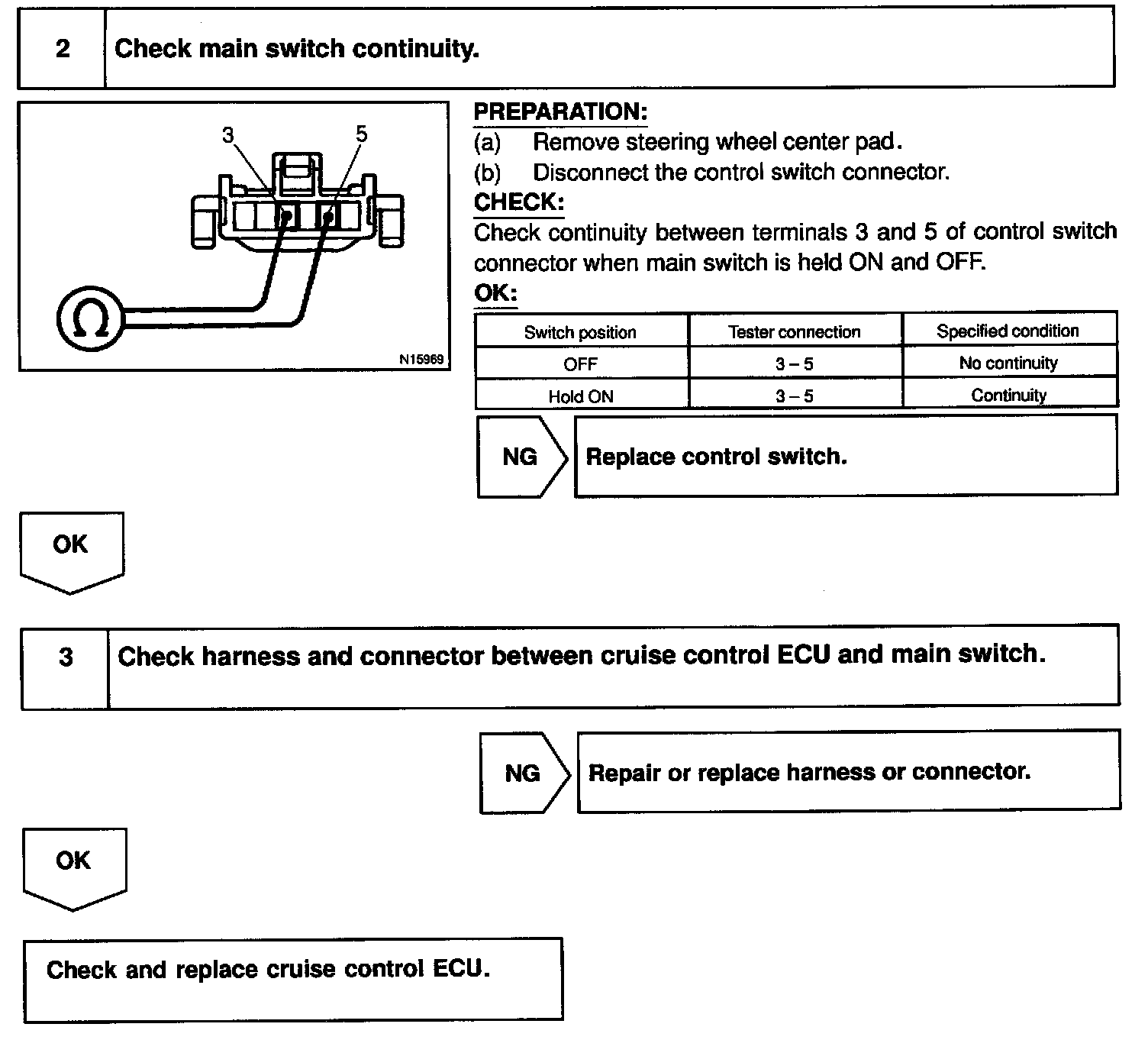

Main Switch Circuit (Cruise Control Switch)

CIRCUIT DESCRIPTION

When the cruise control main switch is turned OFF, the cruise control does not operate.
