Home
>>
Toyota
>>
2001
>>
Celica GT L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine
Engine

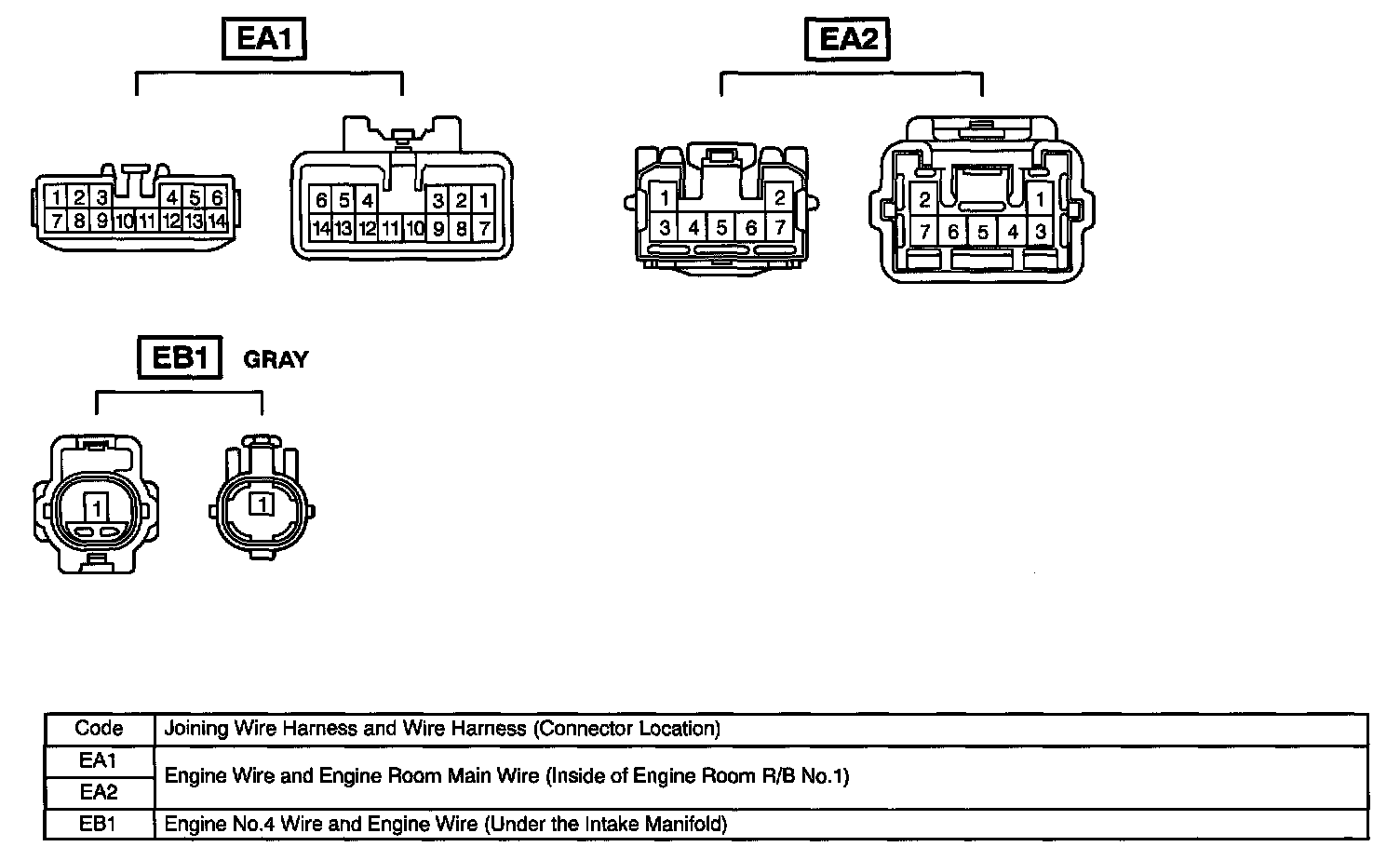

UnderHood Wire Harness To Wire Harness Connectors (EA1 - EB1):
