Engine Compartment

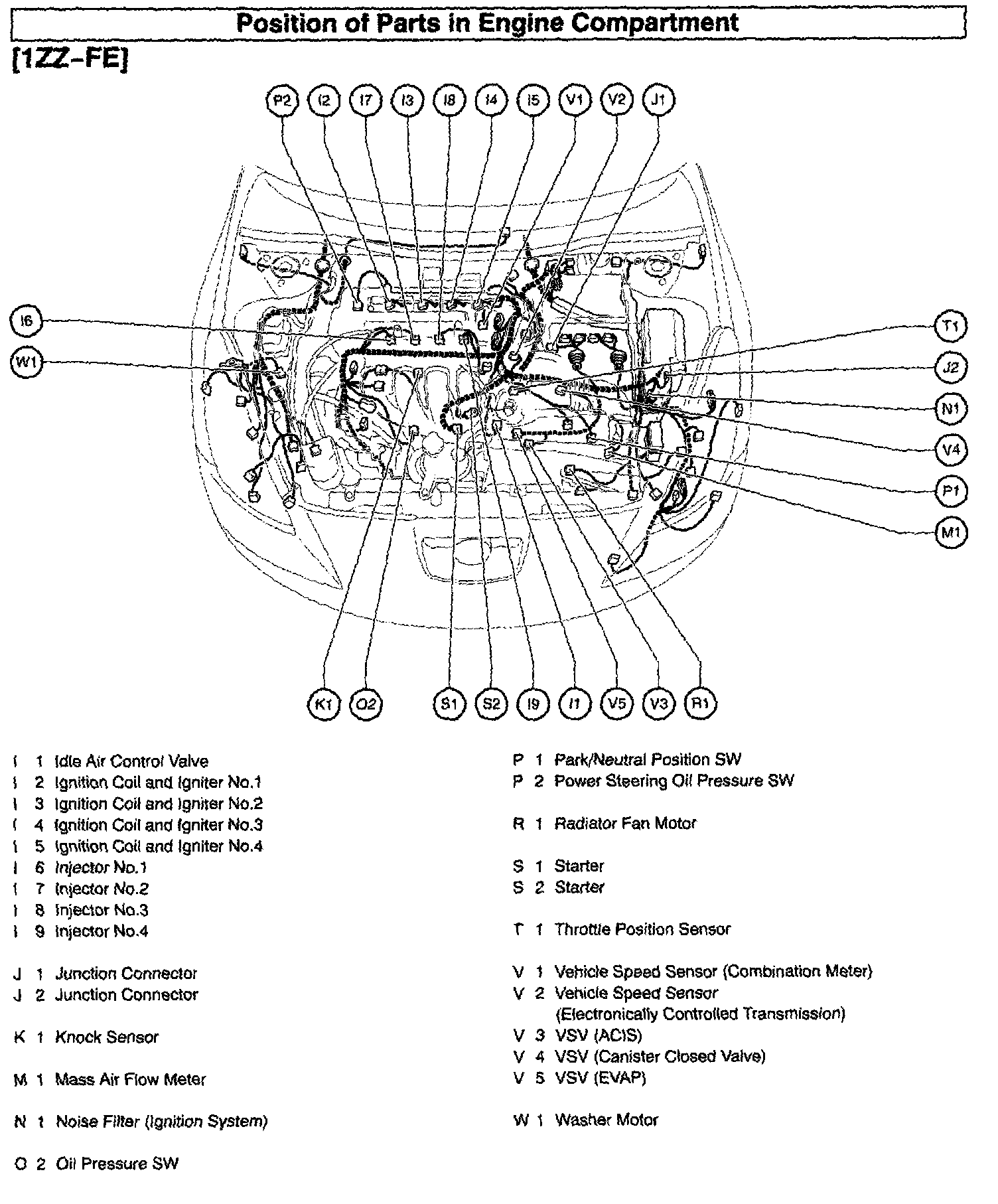

Position Of Parts In Engine Compartment (GT 1ZZ-FE):

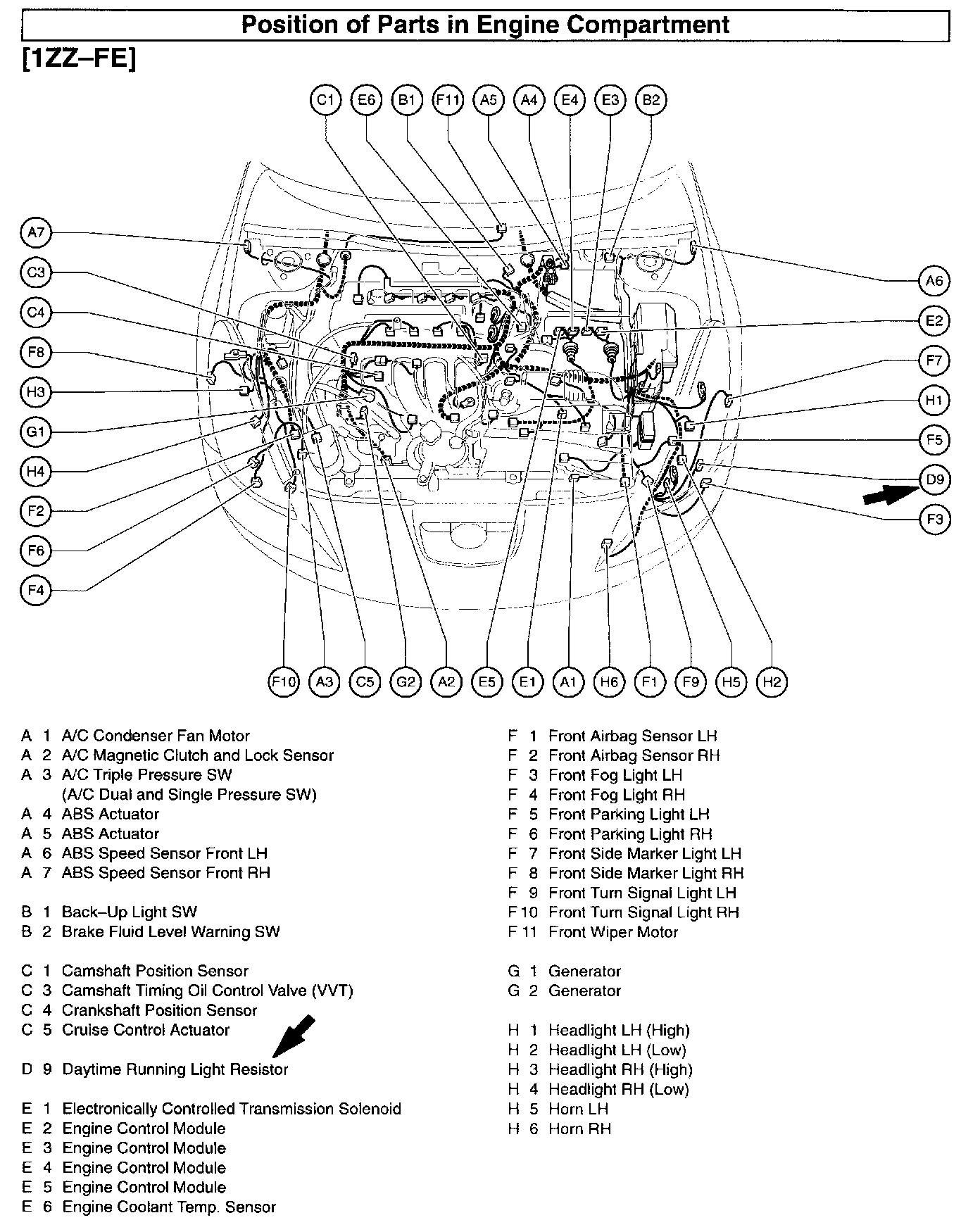

Position Of Parts In Engine Compartment (GT 1ZZ-FE):
