Fuse Block: Locations
Engine Room J/B Part 1:
Instrument Panel J/B Part 1:
Engine Room R/B No.1:

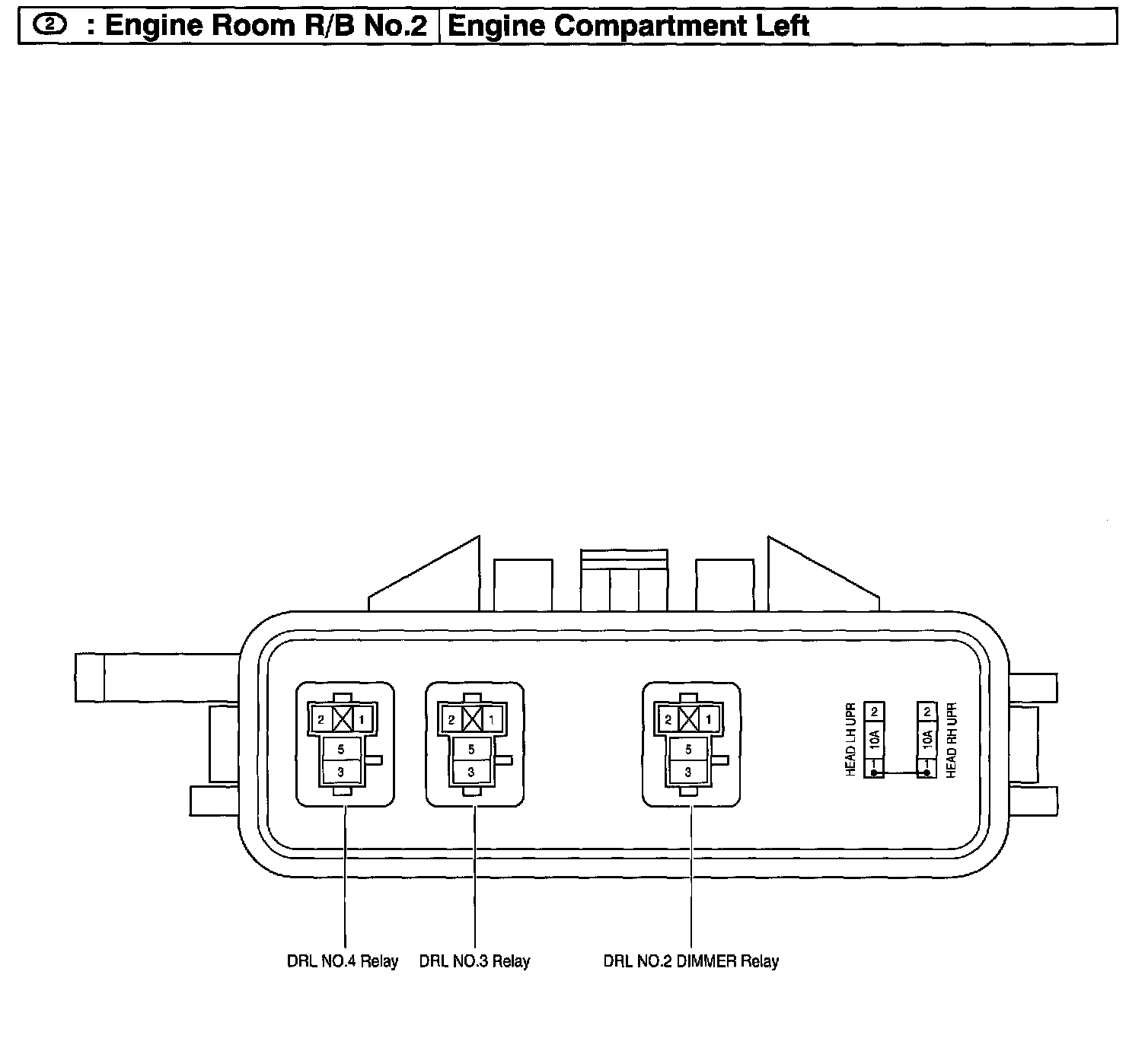

Engine Room R/B No.2:
Details

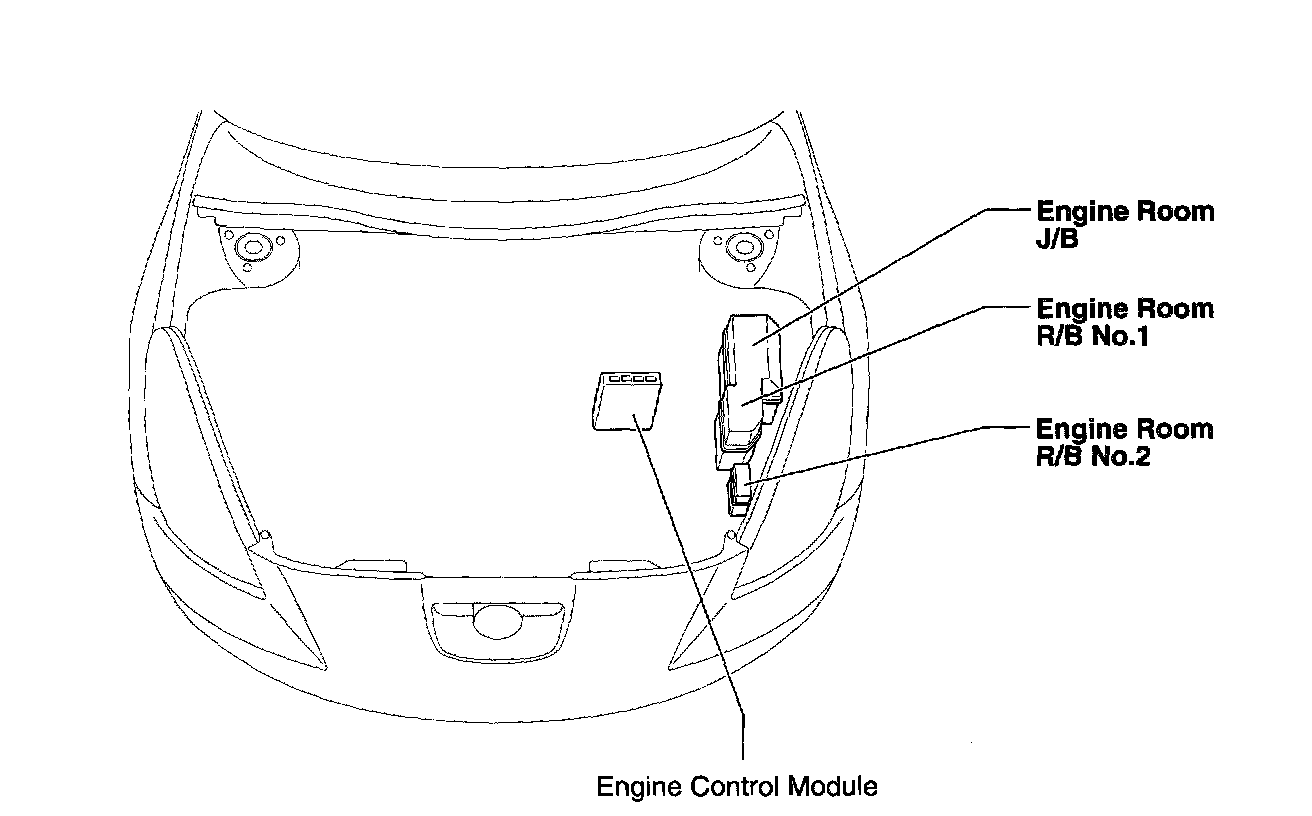

Engine Compartment:
Instrument Panel:
BODY:
Locations
