System Diagram

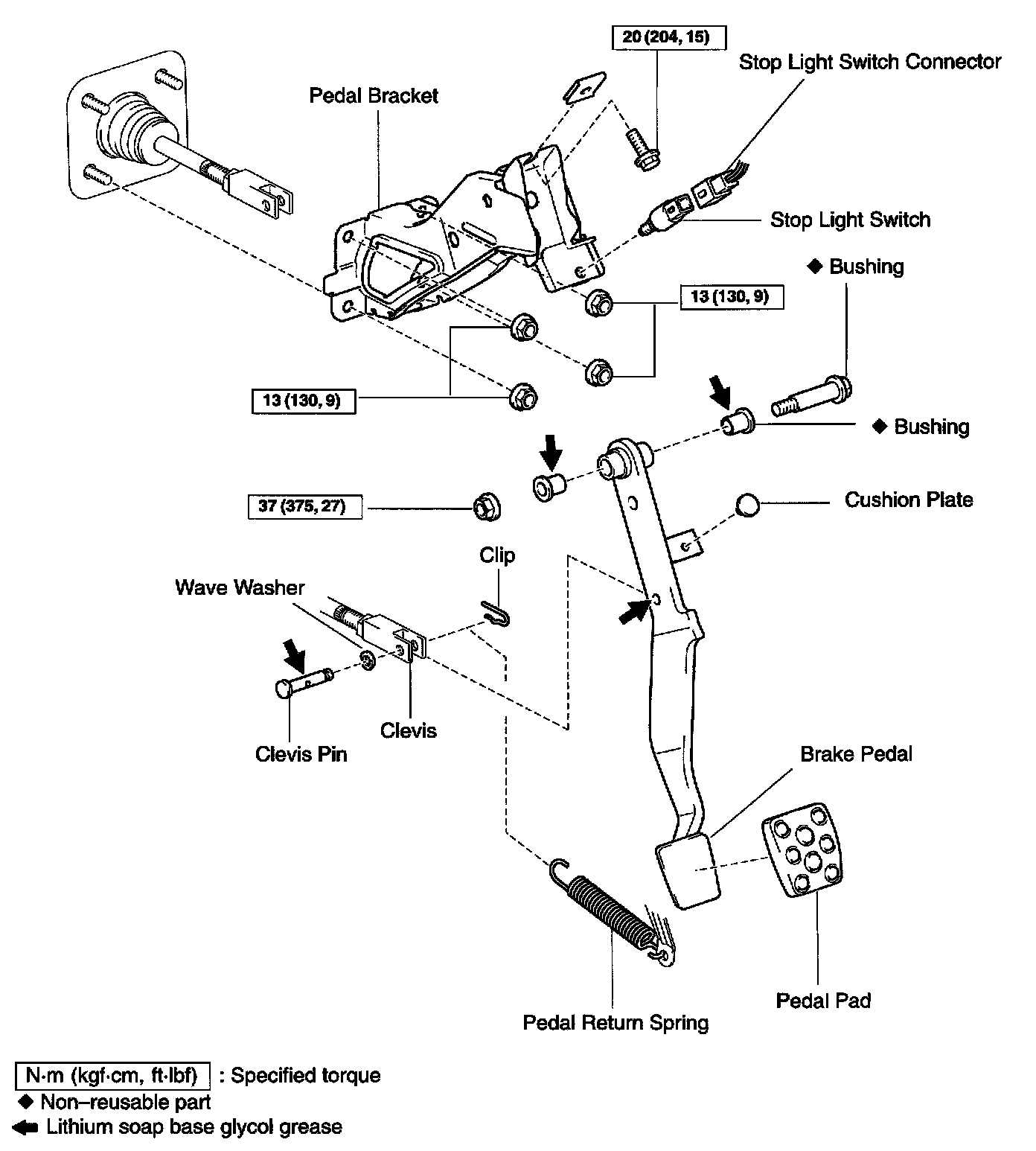

BRAKE PEDAL

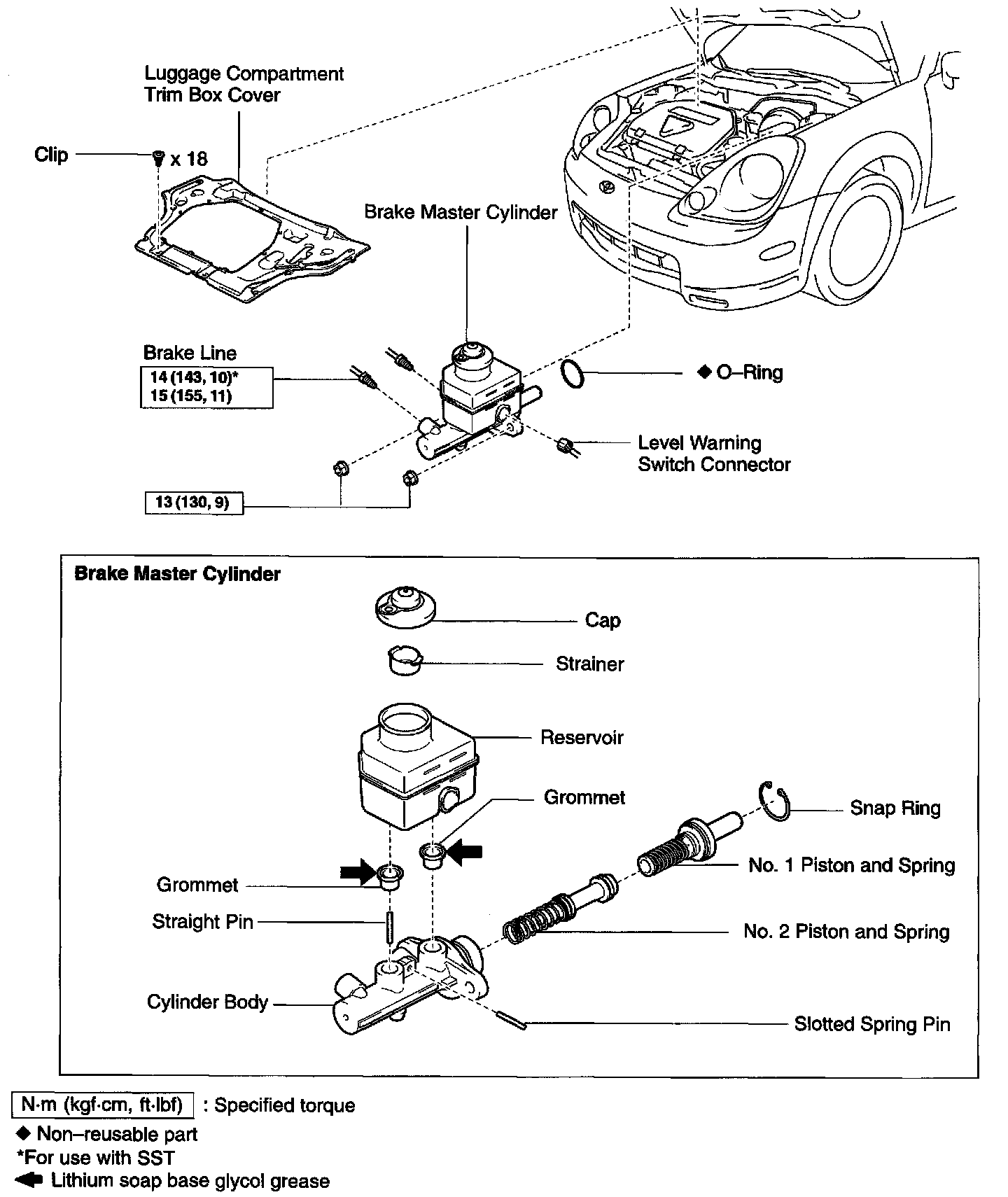

BRAKE MASTER CYLINDER

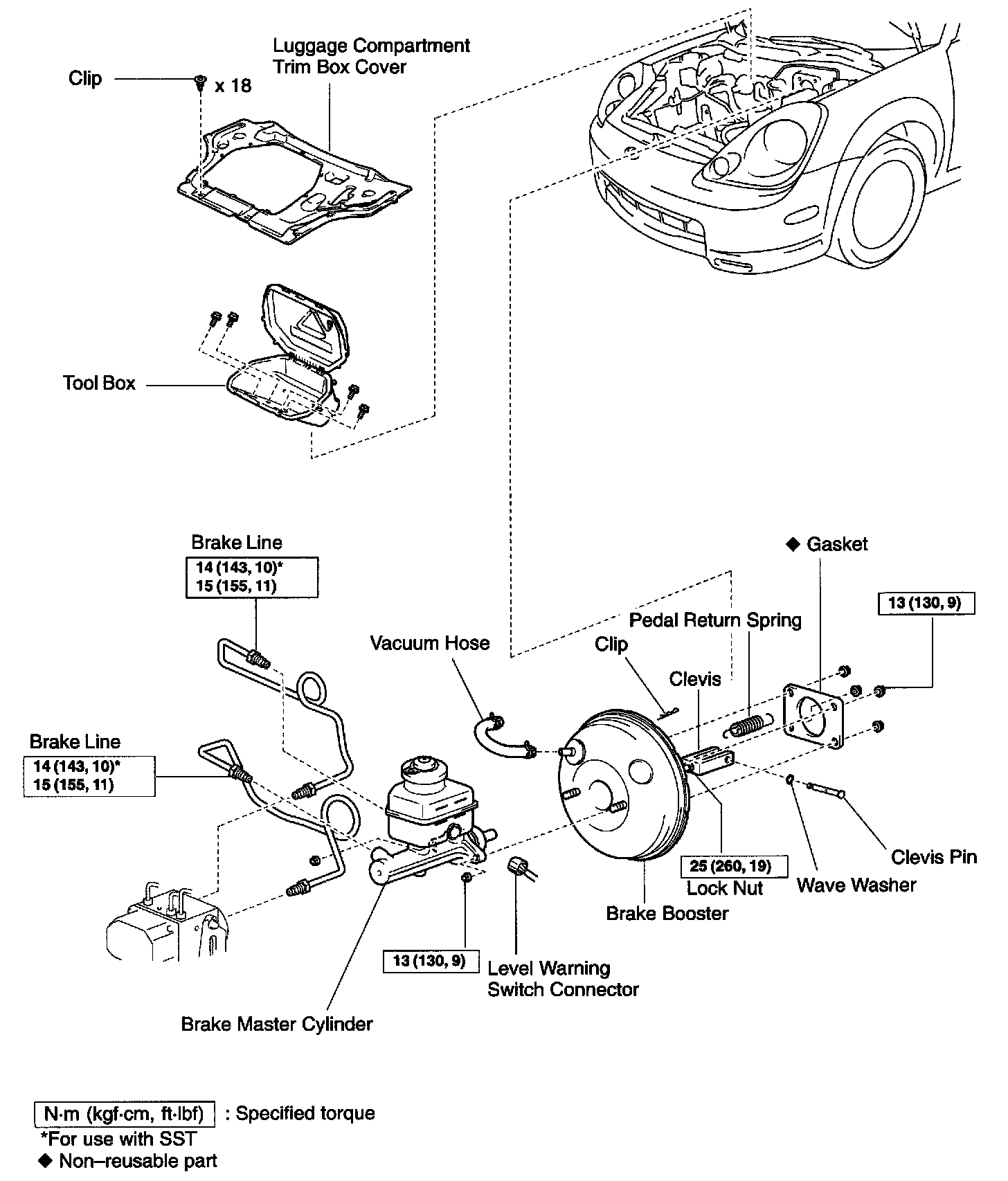

BRAKE BOOSTER ASSEMBLY

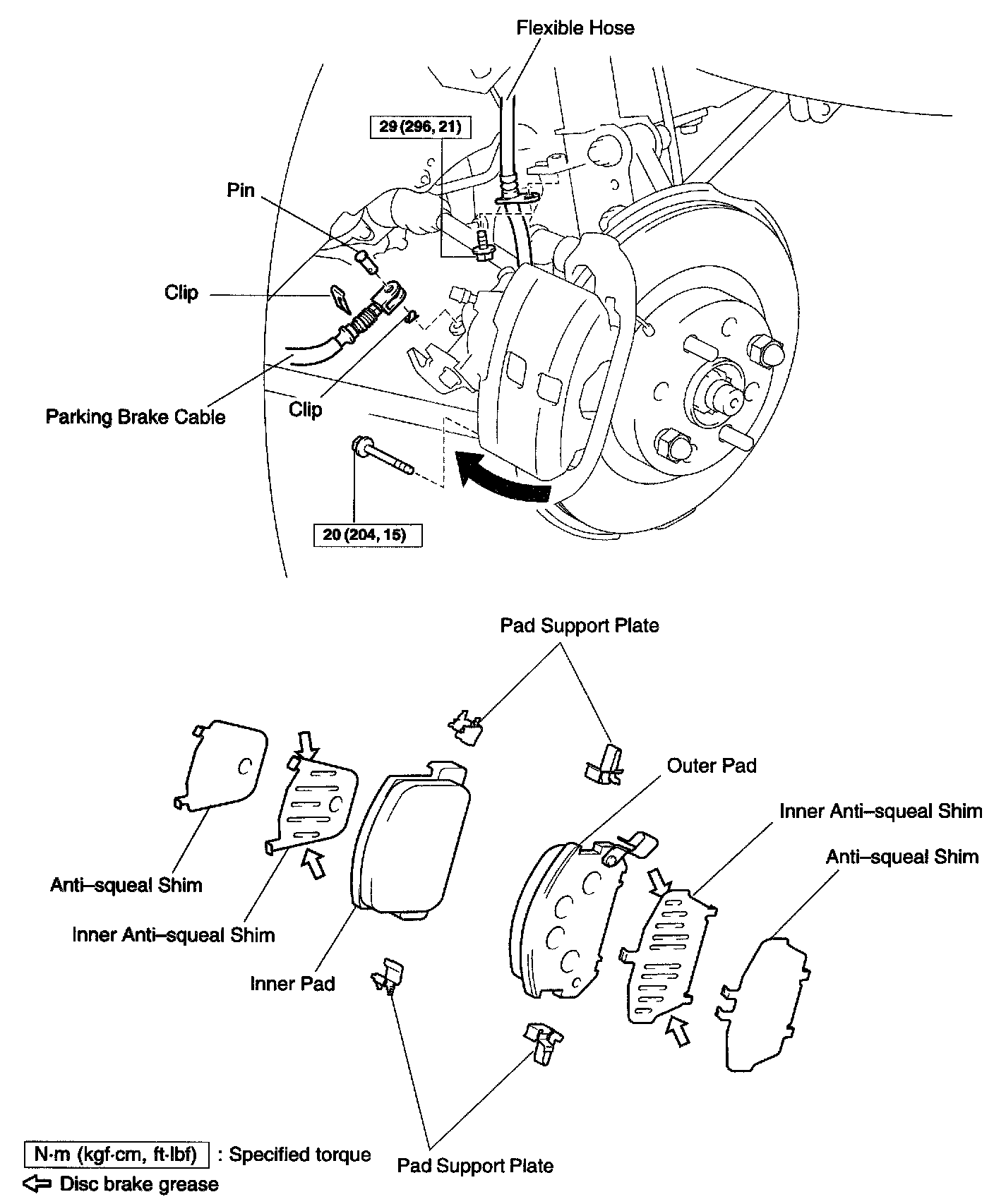

FRONT BRAKE PAD

FRONT BRAKE CALIPER

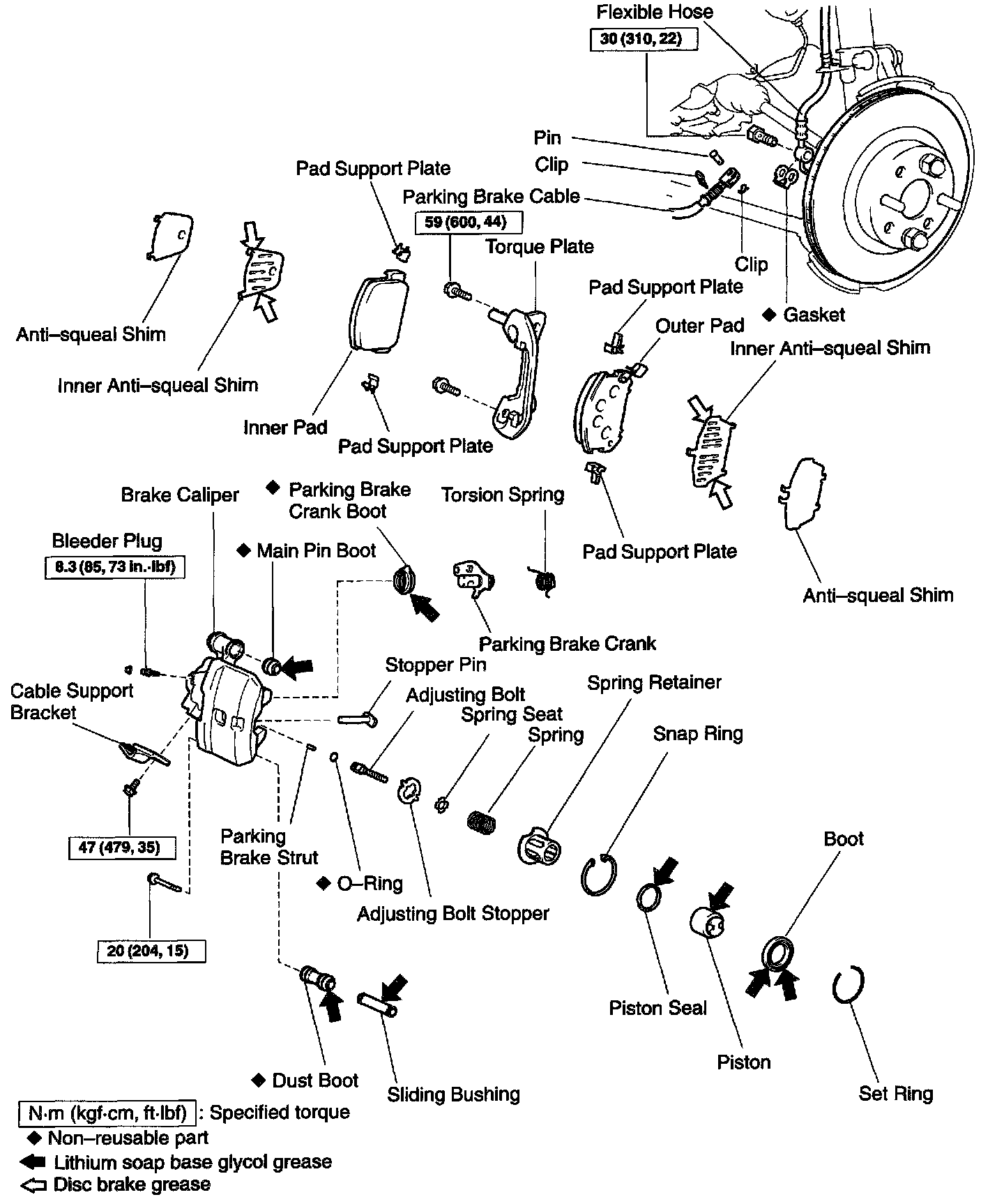

REAR BRAKE PAD

REAR BRAKE CALIPER

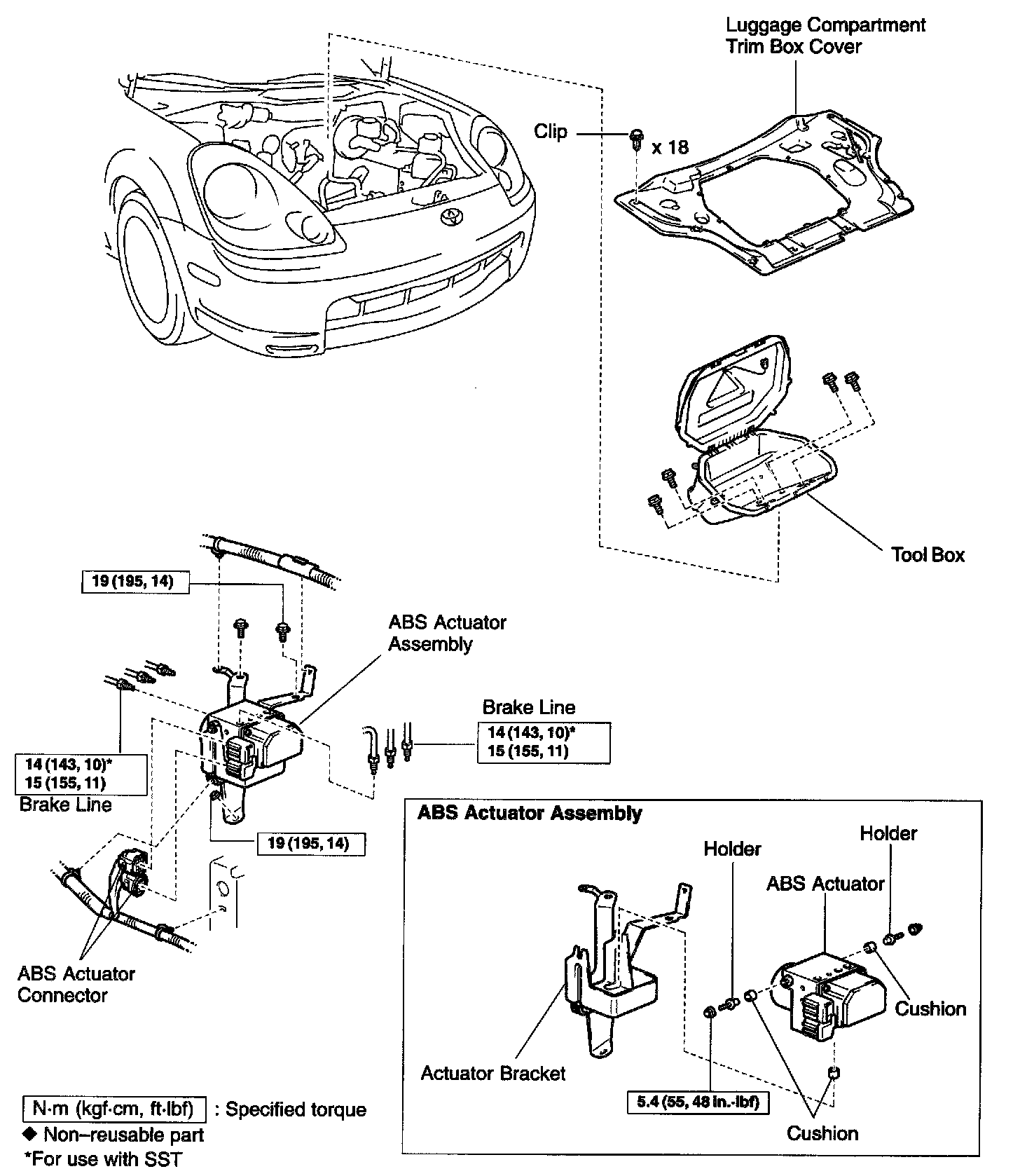

ABS ACTUATOR

FRONT SPEED SENSOR

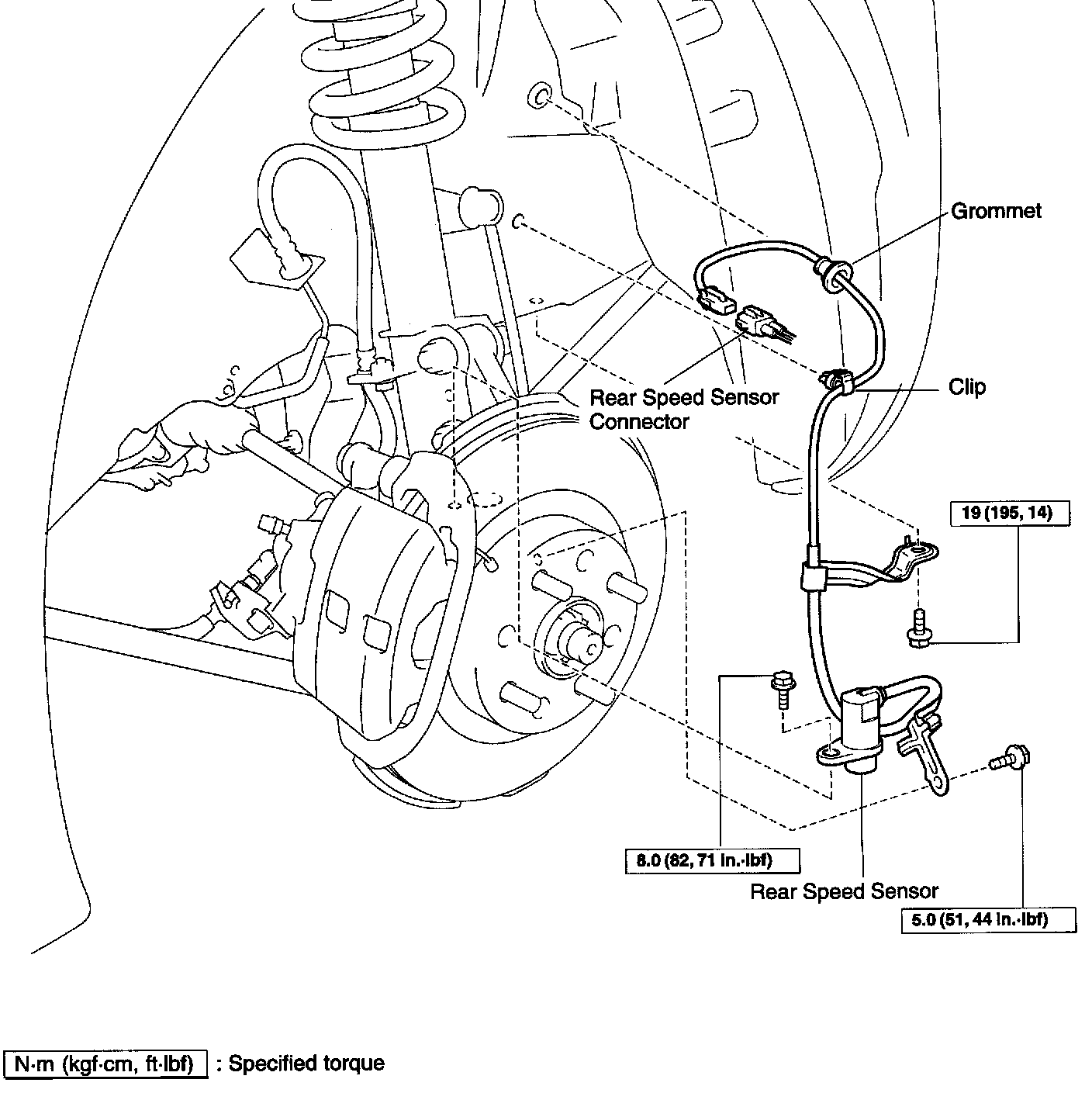

REAR SPEED SENSOR
