Specifications
>>
Electrical Specifications
Electrical Specifications

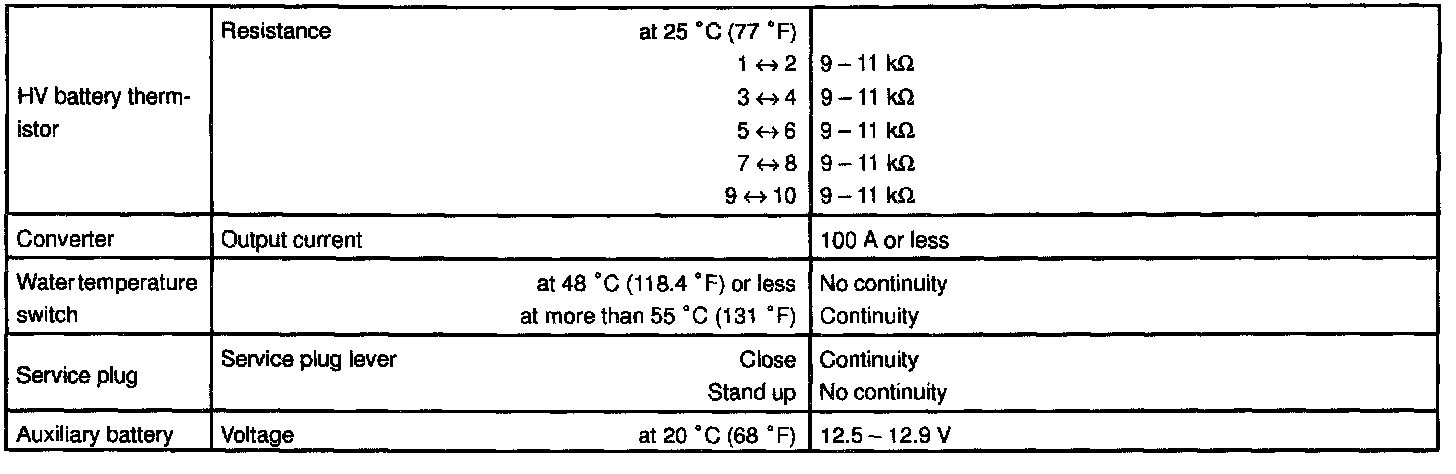

HYBRID VEHICLE CONTROL SERVICE DATA:
