Specifications
>>
Mechanical Specifications
>>
Hybrid Control System
Hybrid Control System

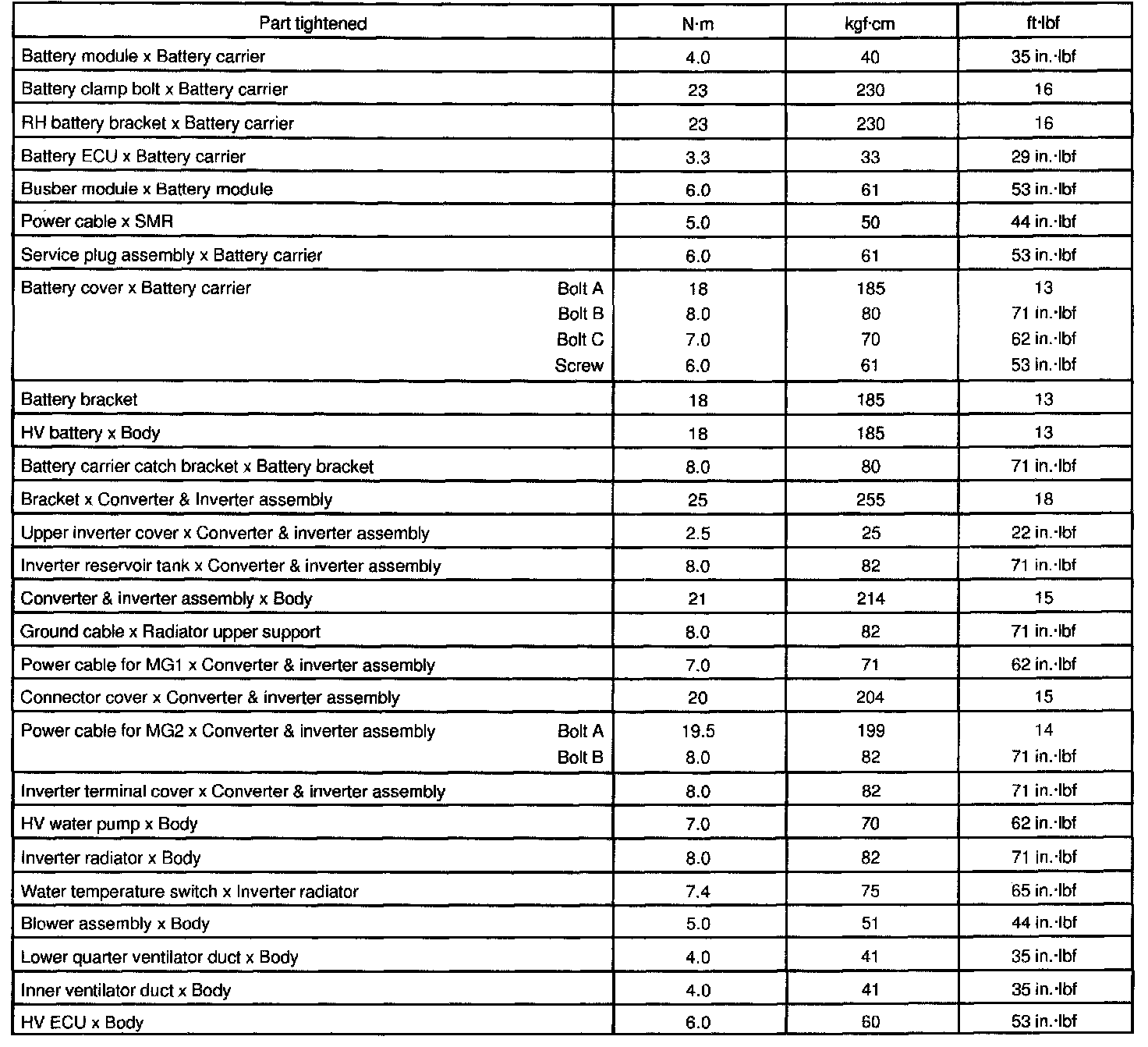

TORQUE SPECIFICATION:
