Home
>>
Toyota
>>
2003
>>
Echo L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>

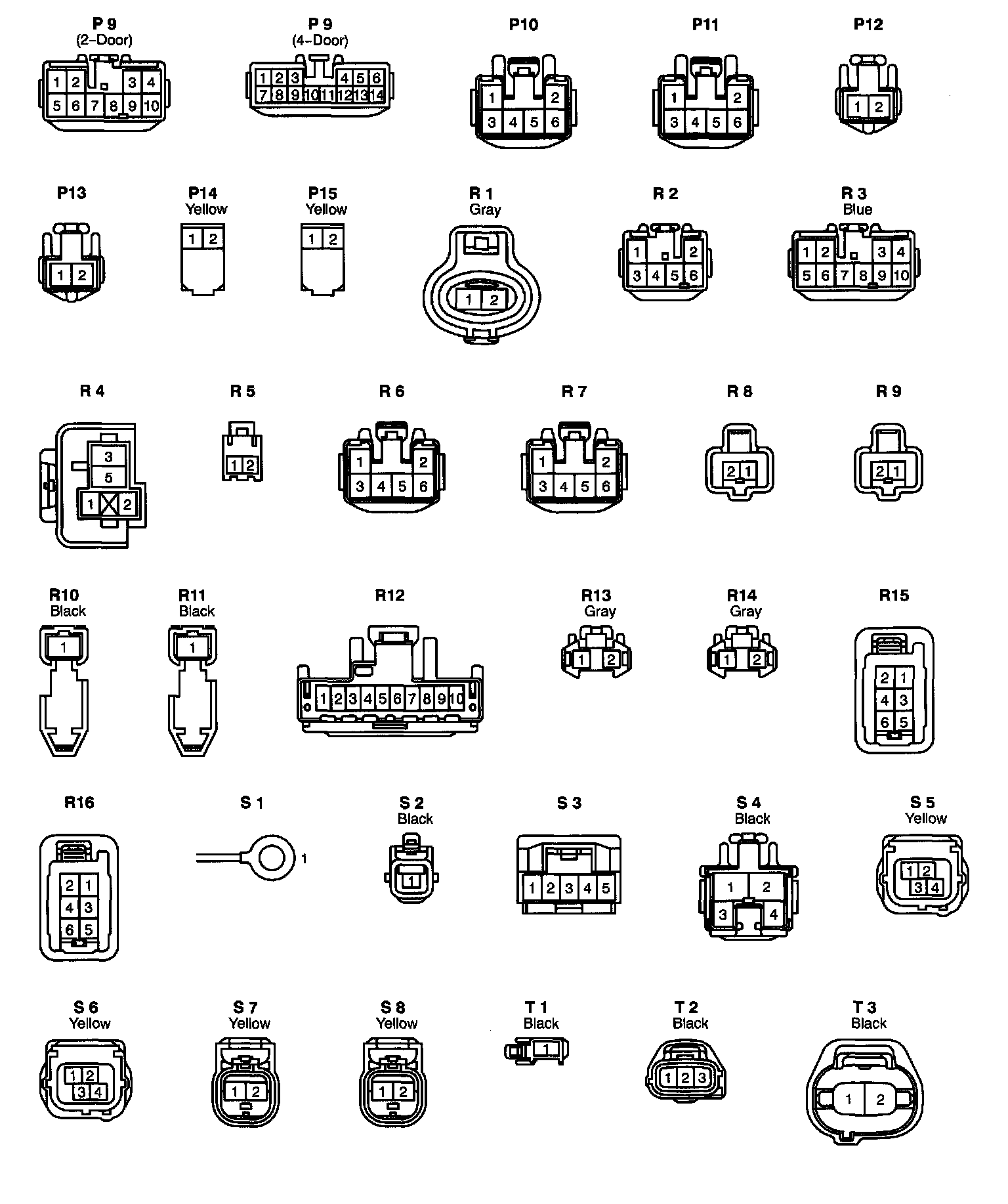

P9 - T3
P9 - T3
P9 - T3:
