Check DLC3
Check DLC3

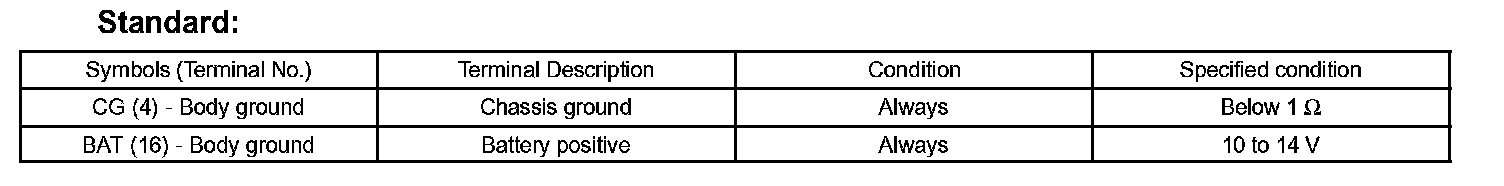

Check the DLC3

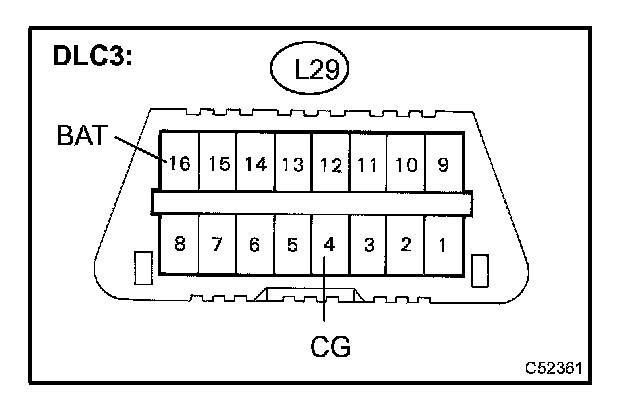

The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 9141-2 format.
