SKID CONTROL BUZZER CIRCUIT

CIRCUIT DESCRIPTION
The skid control buzzer sounds and SLIP Indicator blinking during VSC operation.

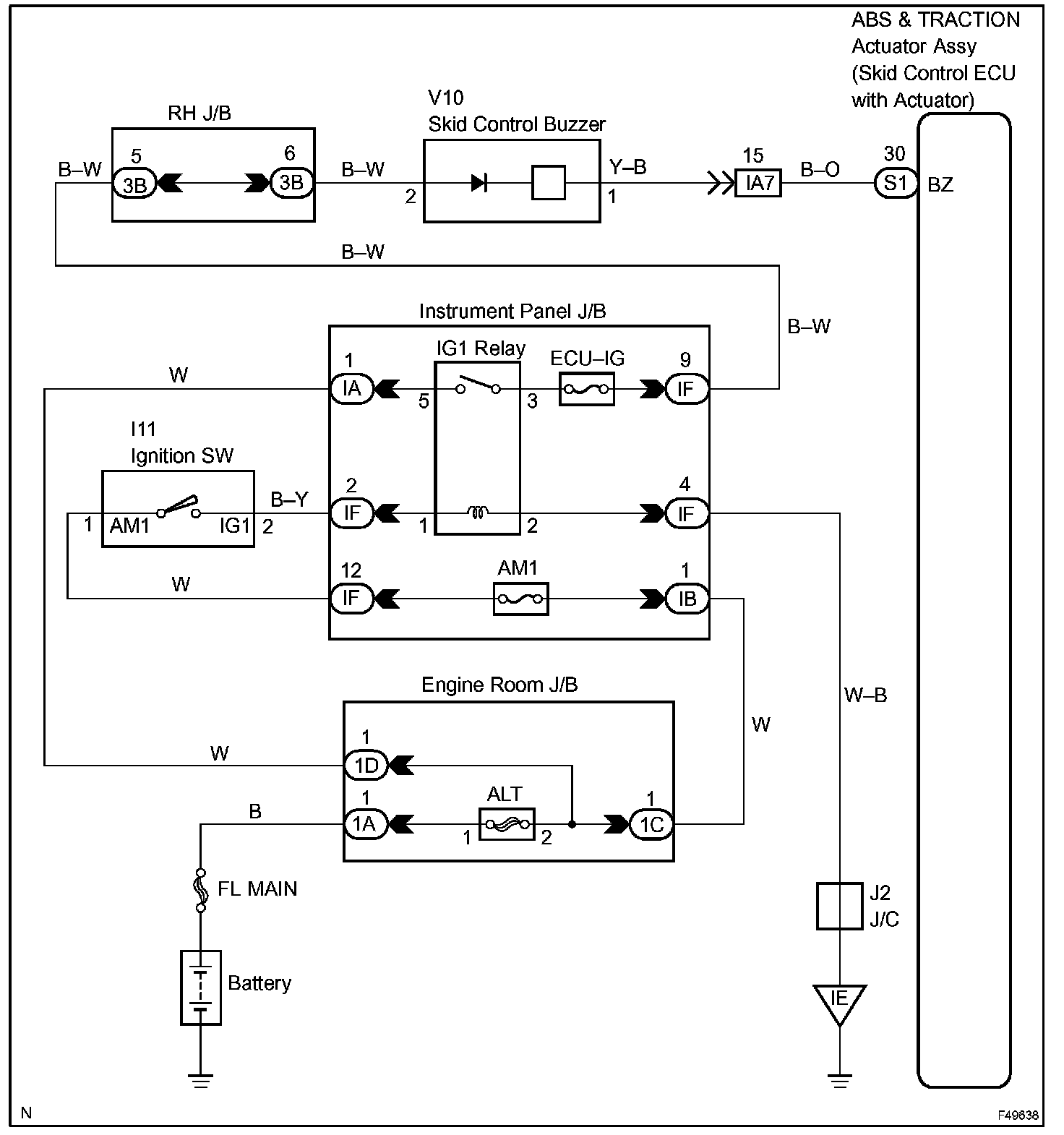

Wiring Diagram:

INSPECTION PROCEDURE

NOTE: When replacing the ABS & TRACTION actuator assy, perform zero point calibration.

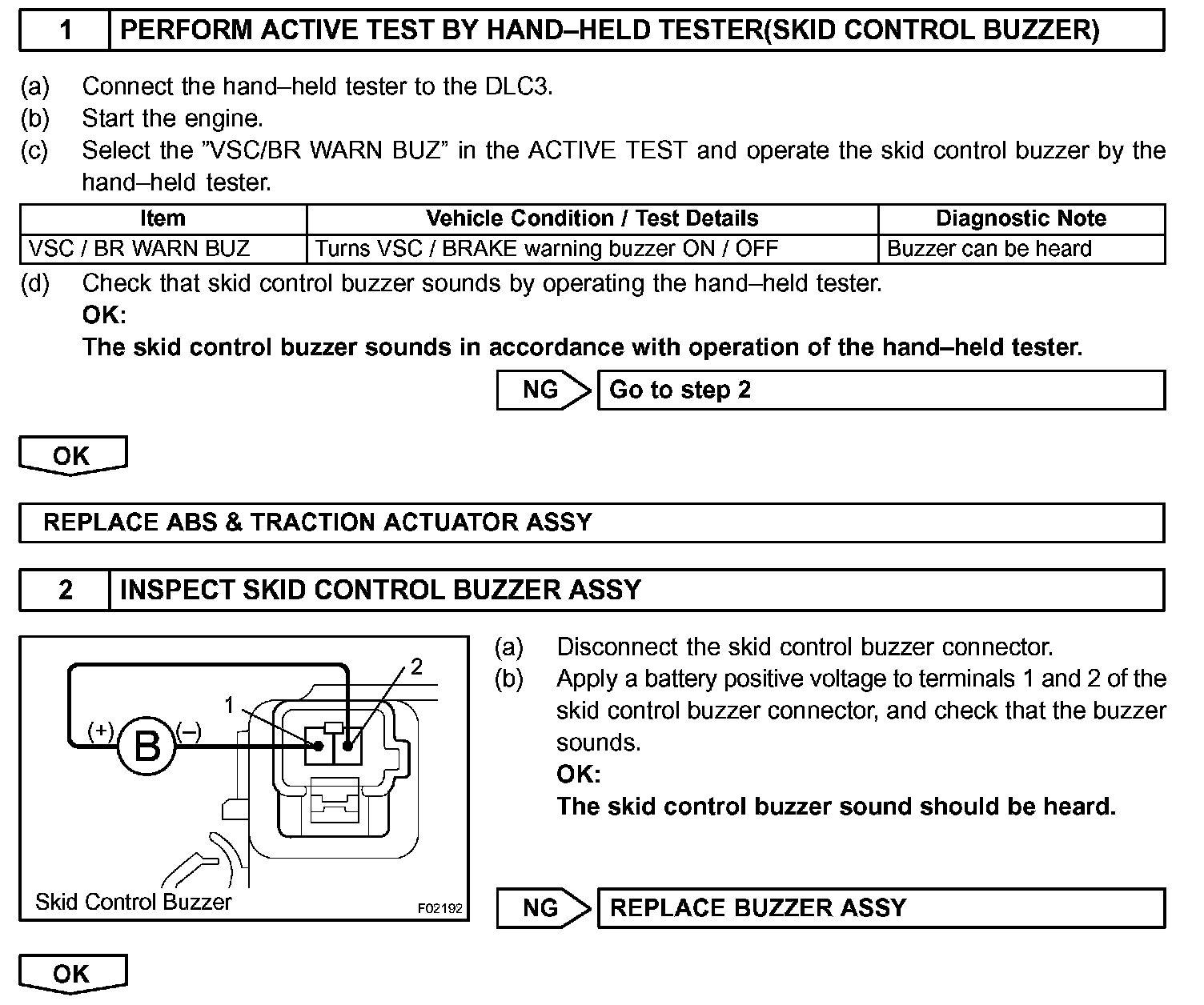

Step 1 - 2:

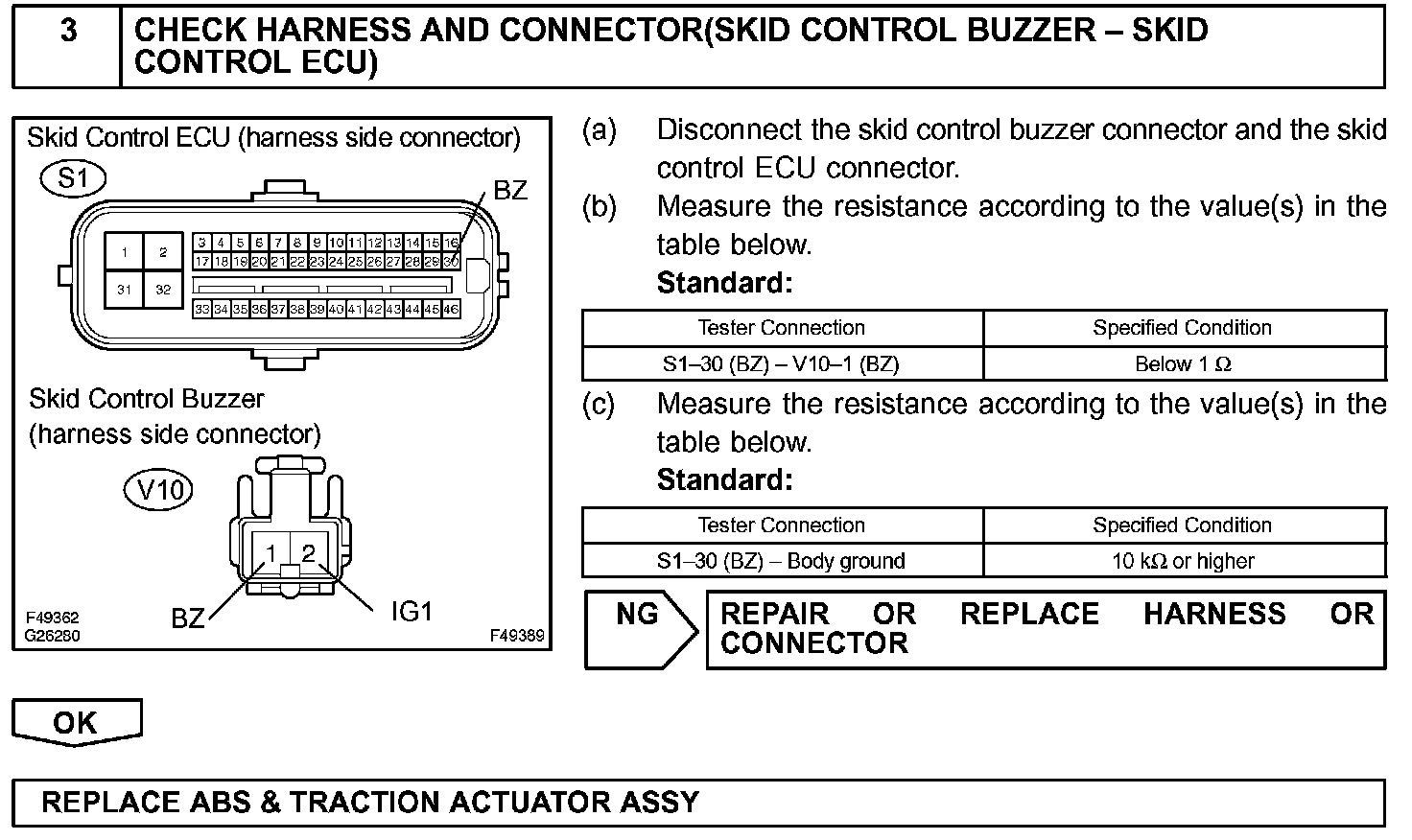

Step 3:

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
