Fuse Block

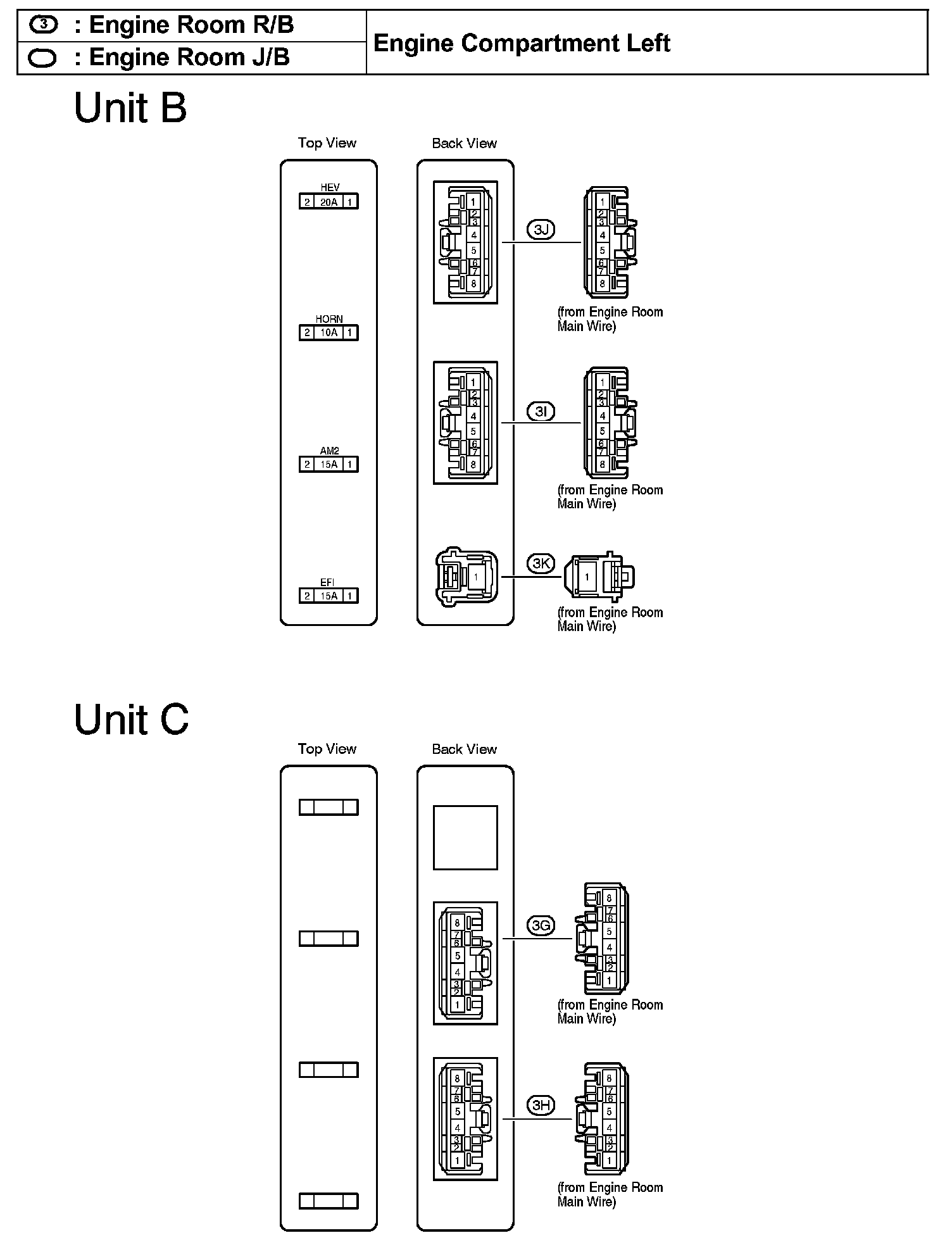

Engine Room R/B, Engine Room J/B - Engine Compartment Left:

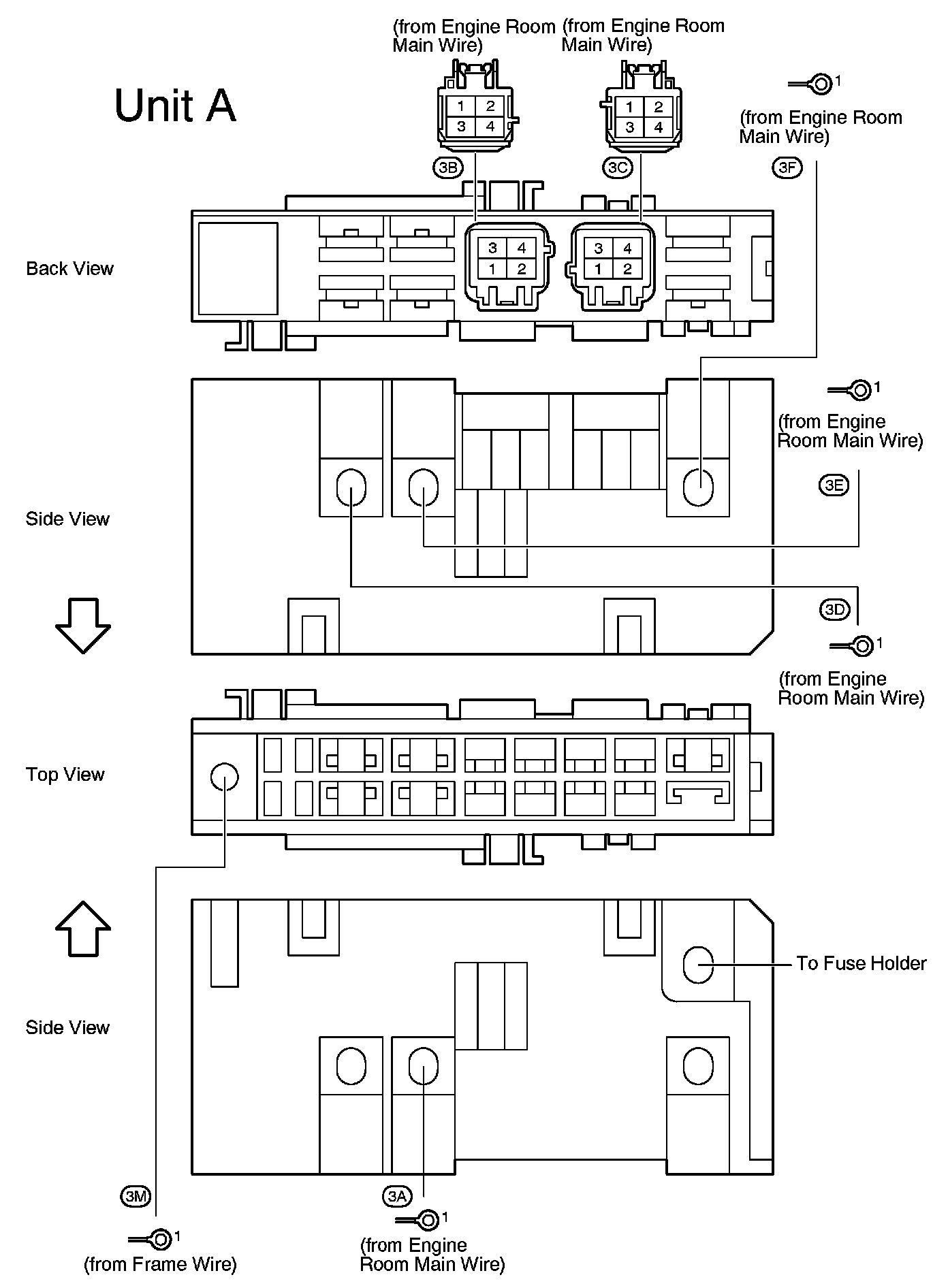

Engine Room R/B, Engine Room J/B - Engine Compartment Left:

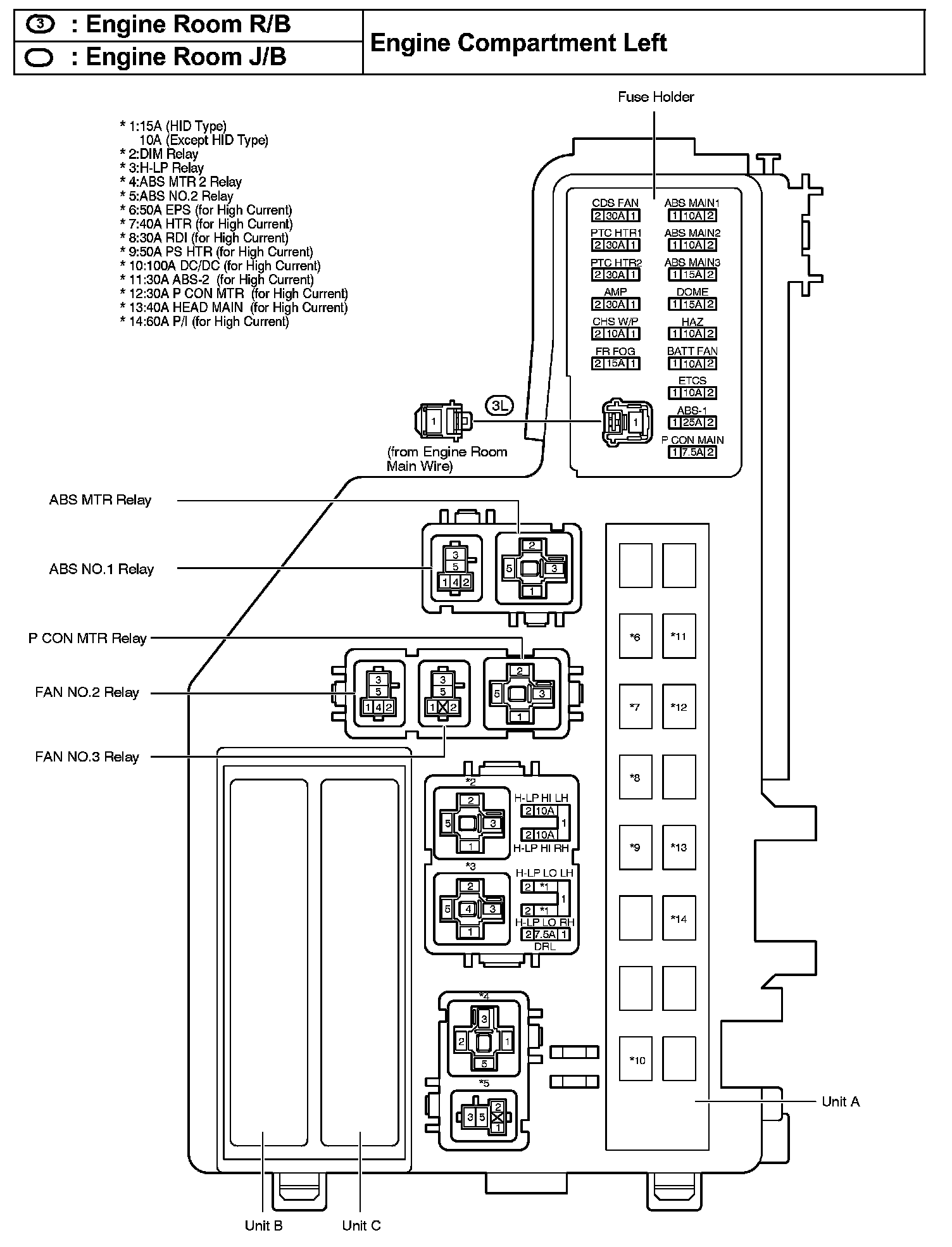

Engine Room R/B, Engine Room J/B - Engine Compartment Left:

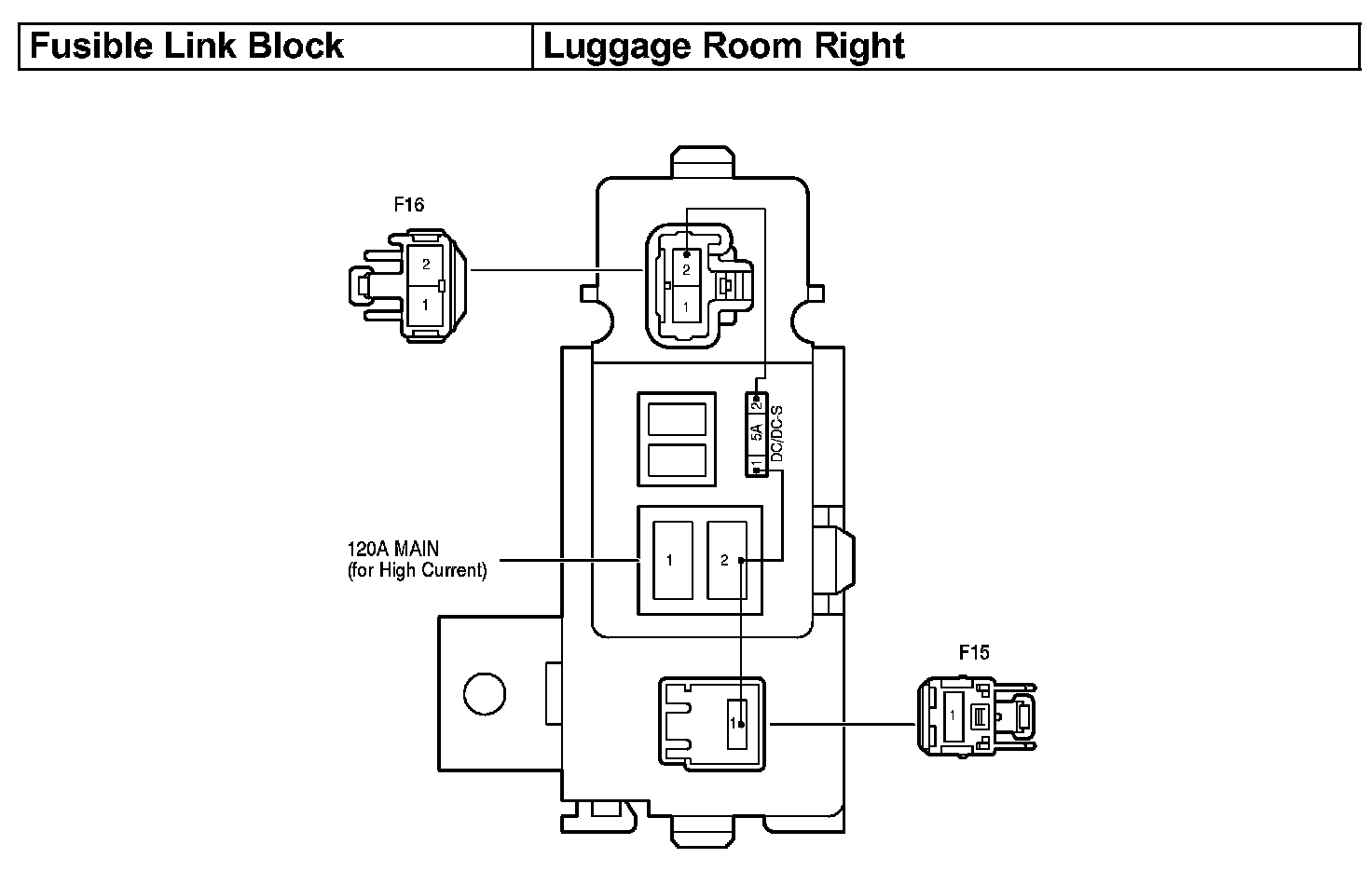

Fusible Link Block - Luggage Room Right:

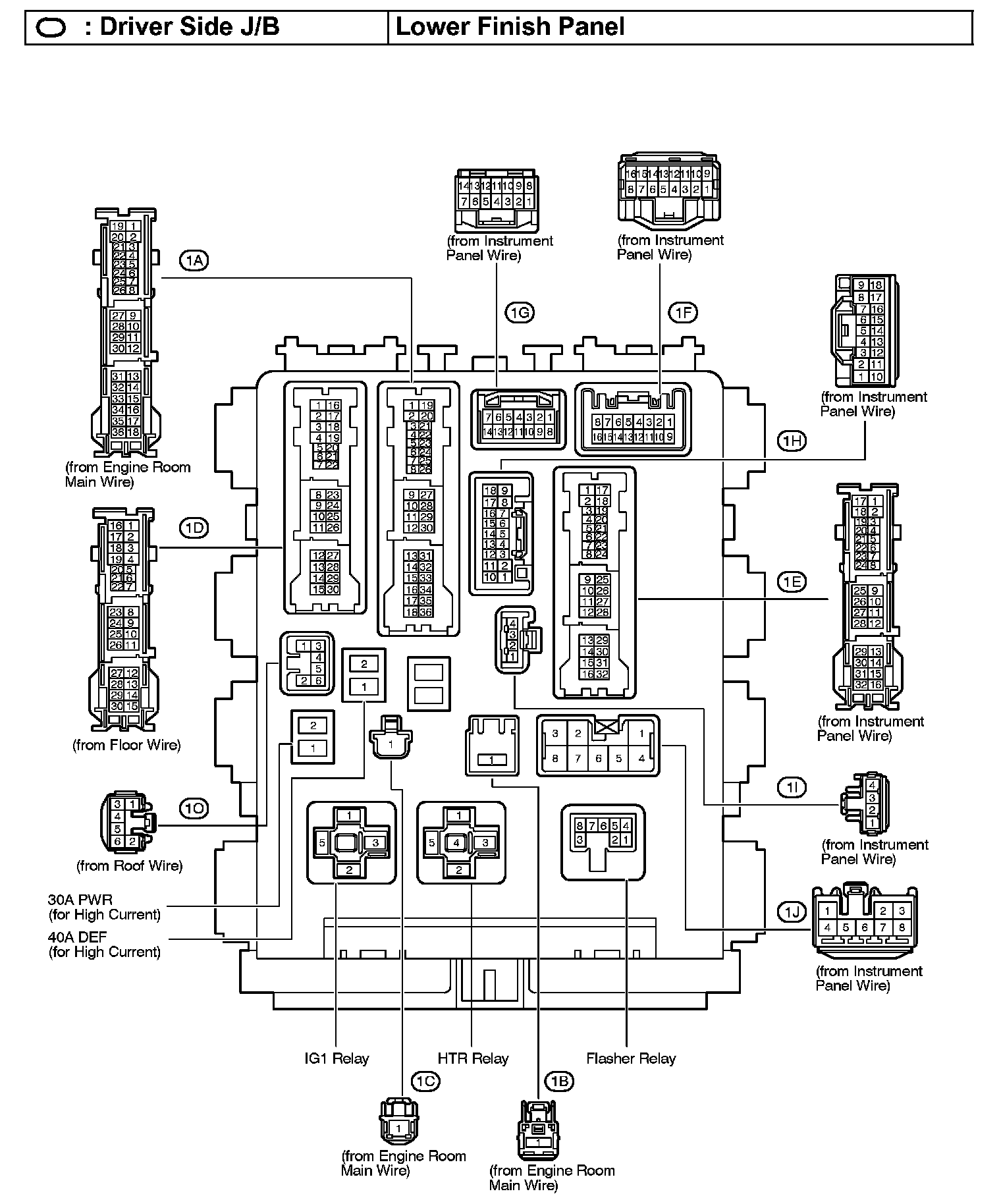

Driver Side J/B - Lower Finish Panel:

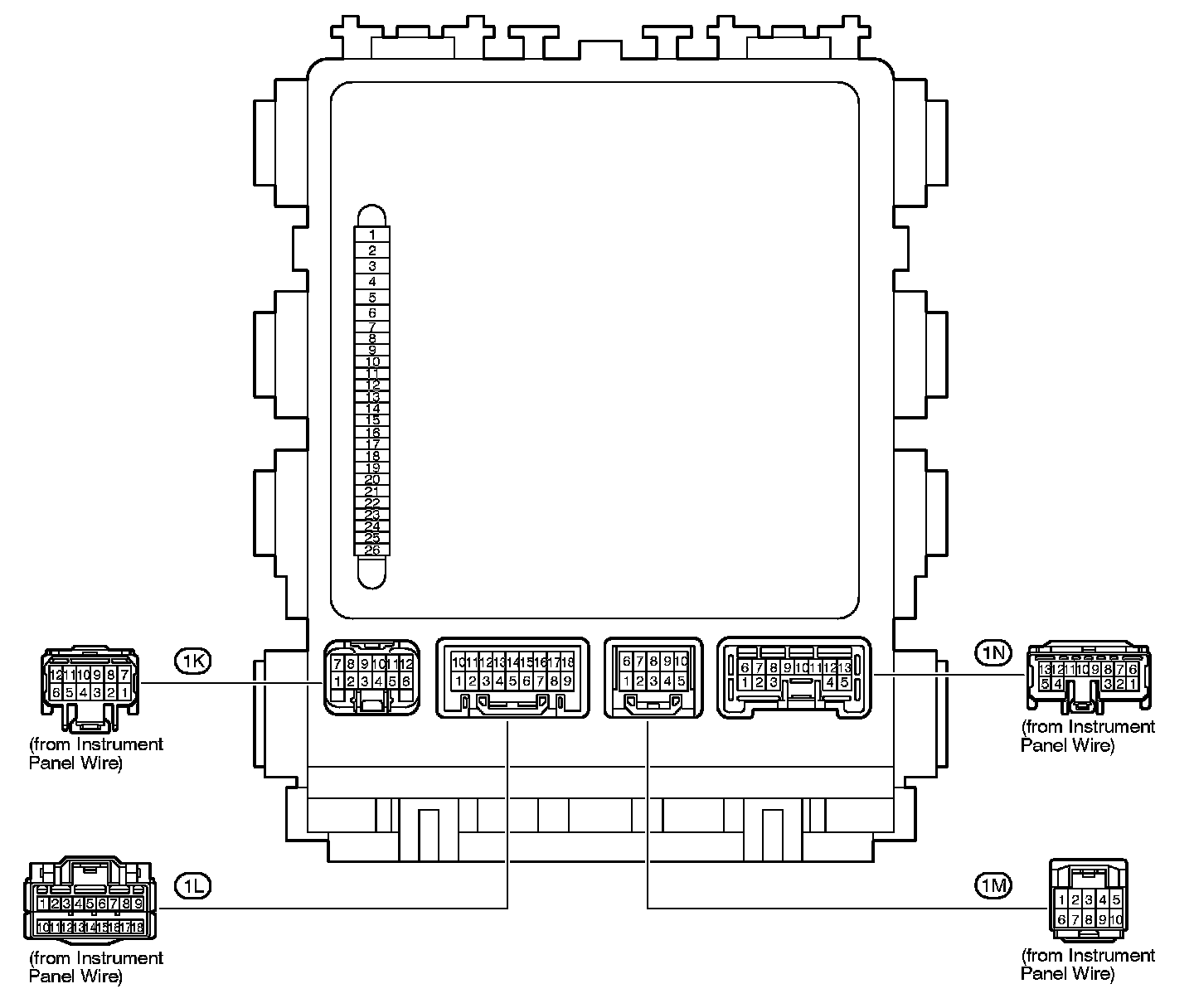

Driver Side J/B - Lower Finish Panel:

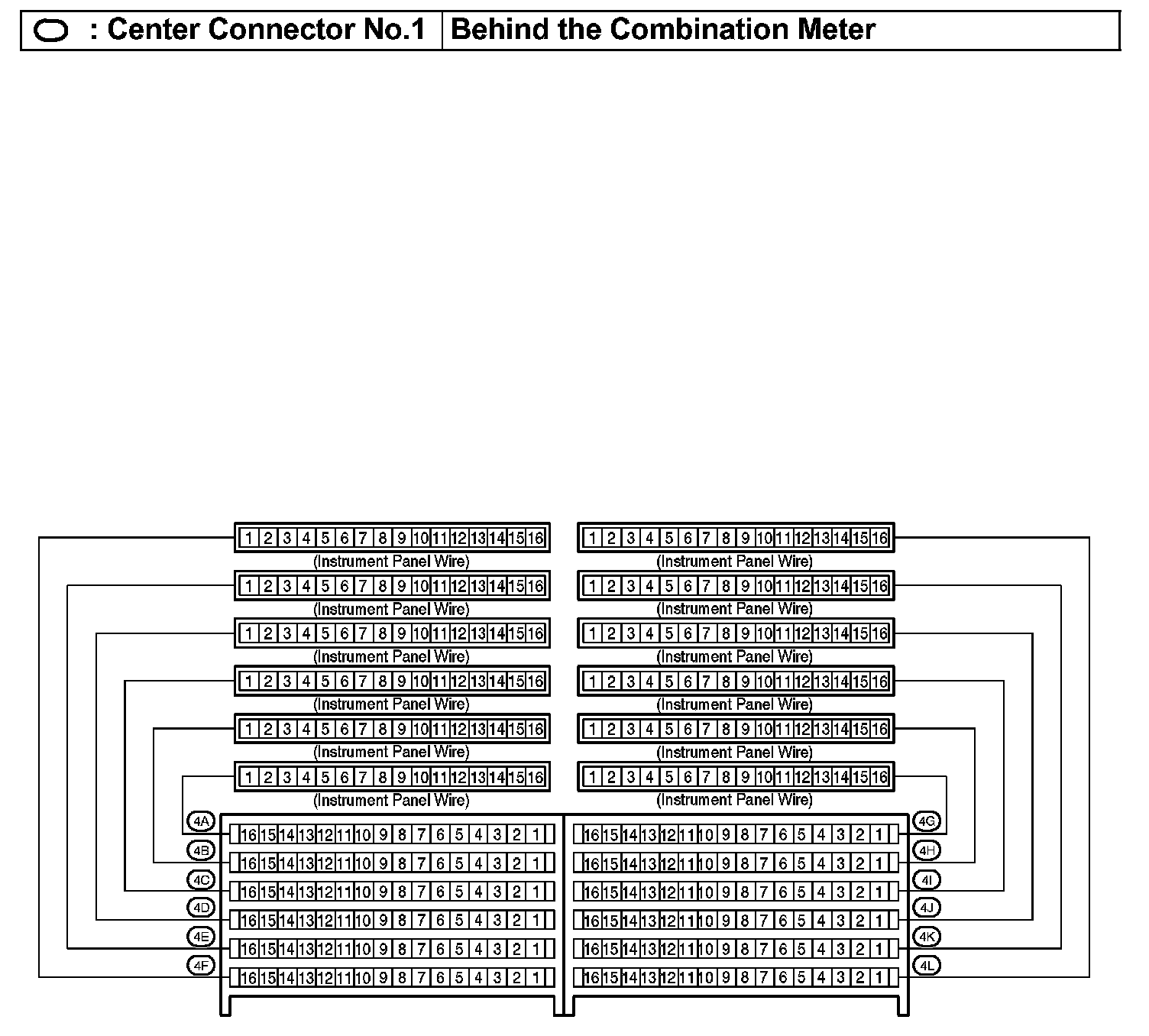

Center Connector No.1 - Behind The Combination Meter:

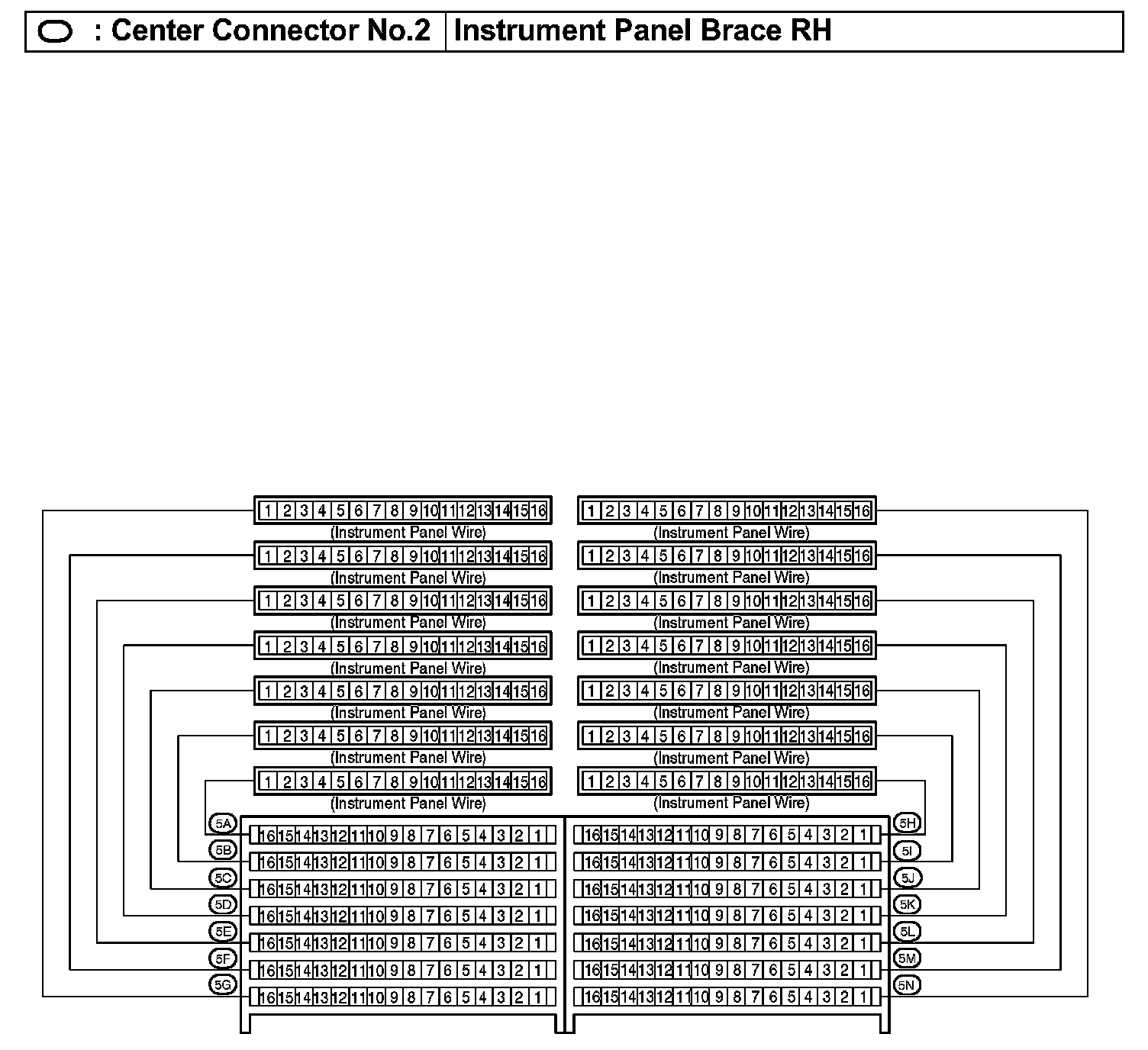

Center Connector No.2 - Instrument Panel Brace RH:
