Steering Sensor Communication Stop Mode

STEERING SENSOR COMMUNICATION STOP MODE

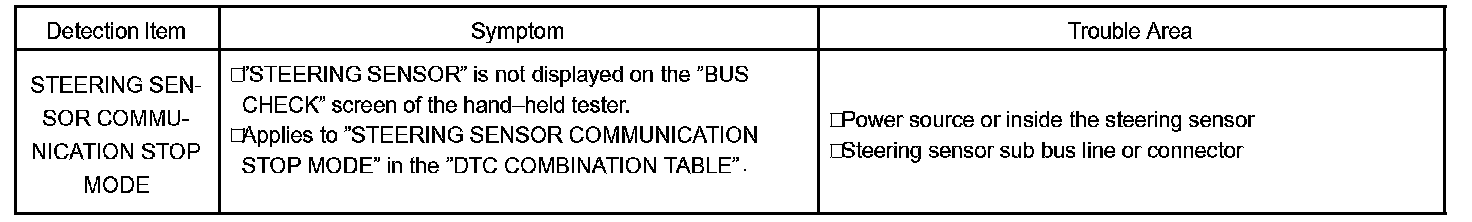

Detection Item:

MODE DESCRIPTION

NOTE: This is not applicable to a vehicle without enhanced VSC.

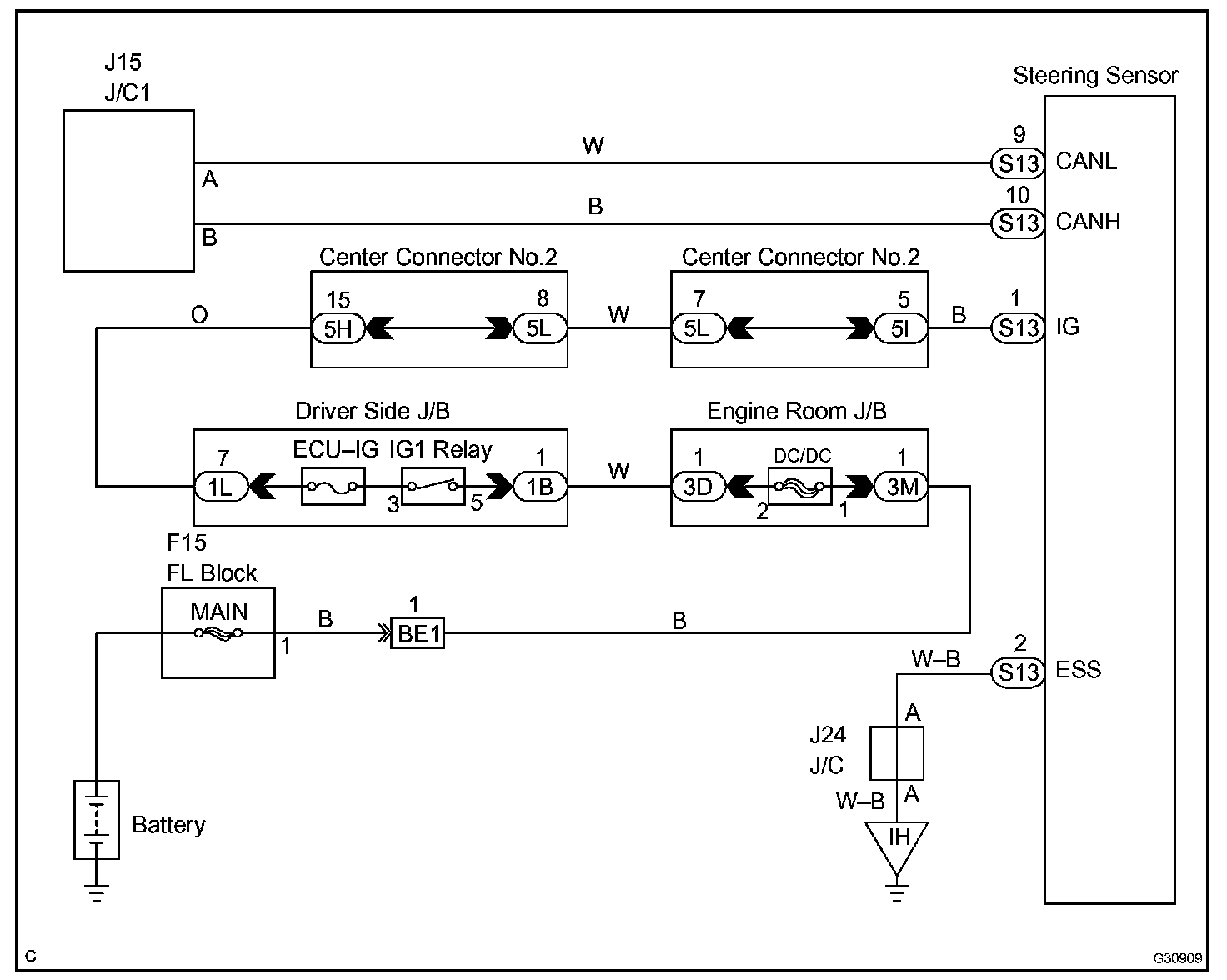

Wiring Diagram:

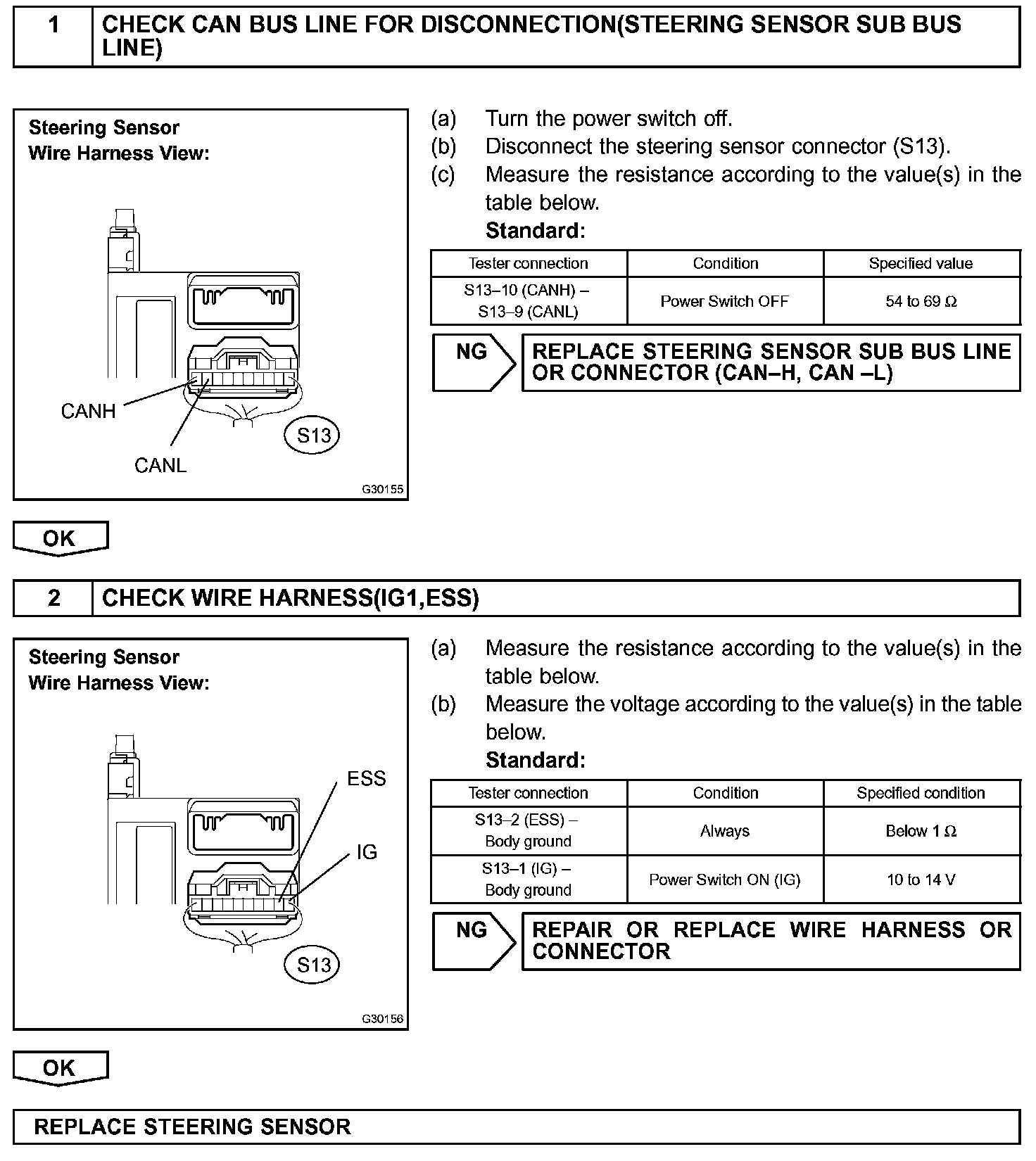

Step 1 - 2:

INSPECTION PROCEDURE
